32. Layer 3 Switching

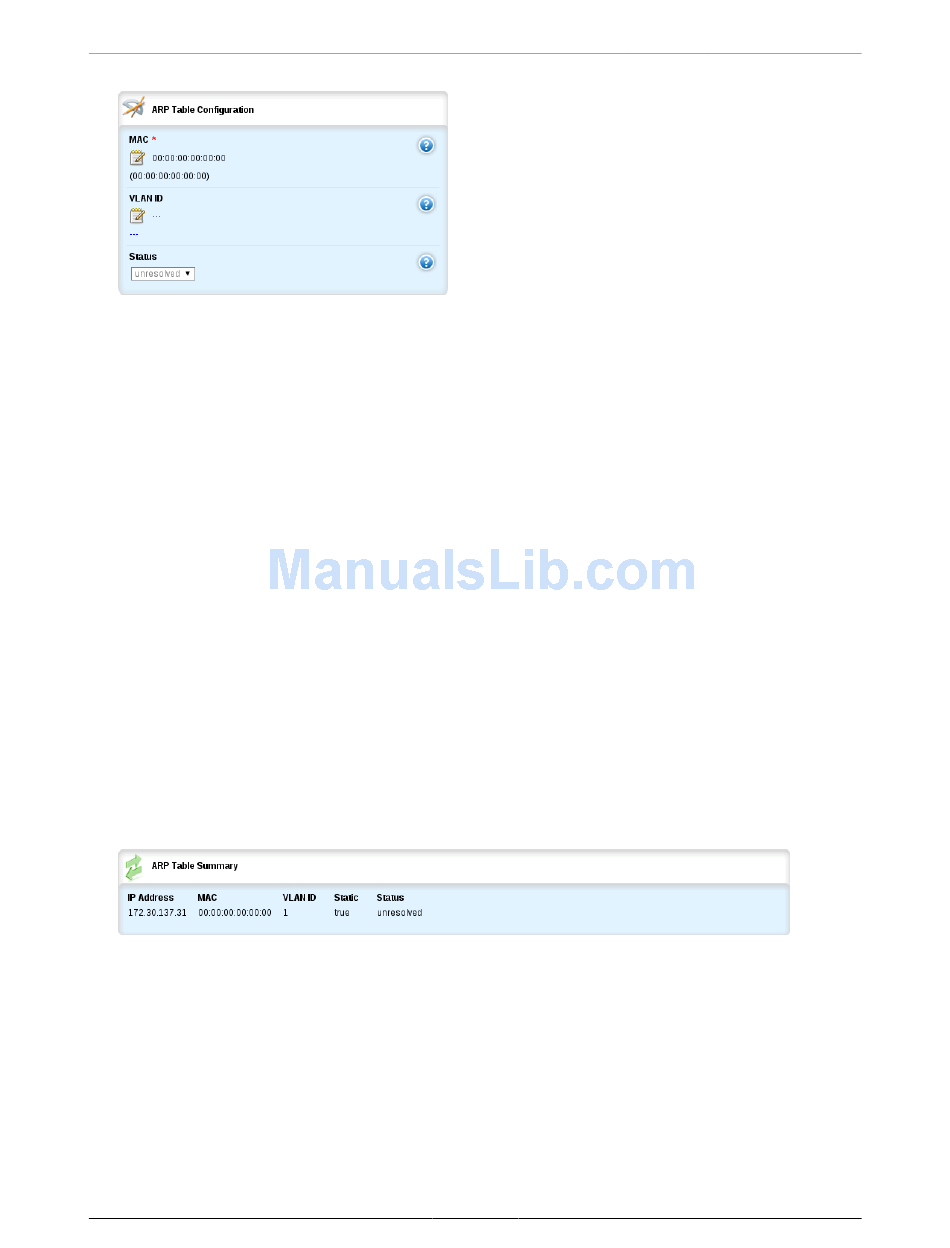

Figure 32.8. ARP Table Configuration form
MAC
Synopsis: Unicast Ethernet MAC address in colon-separated hexadecimal notation
Default: 00:00:00:00:00:00
MAC address of the network device specified by the IP address.
VLAN ID
Synopsis: integer
VLAN Identifier of the VLAN upon which the MAC address operates.
status
Synopsis: string - one of the following keywords { unresolved, resolved }
Default: unresolved
ARP entry resolution status:
• Resolved : MAC-IP address pair is resolved and operational.
• Unresolved : the device hasn't resolved the MAC-IP address pair and keeps sending ARP
requests periodically.

32.2.3. Viewing Static and Dynamic ARP Table Entries

The ARP Table Summary table lists all of the ARP table entries.
To view static and dynamic ARP table entries:
• Navigate to /switch/layer3-switching/arp-table-summary.
• Review the entries on the ARP Table Summary form.
Figure 32.9. ARP Table Summary form

32.2.4. Viewing Routing Rules

The Routing Rules Summary table provides an overview of what is accelerated in the hardware; it shows
what is actually going on inside the switch. The Routing Rules Summary form shows the details for a
select rule.
To view the Routing Rules Summary table:
• Navigate to switch/layer3-switching/routing-rules-summary.
• Review the entries in the Routing Rules Summary table.
