40. VRRP

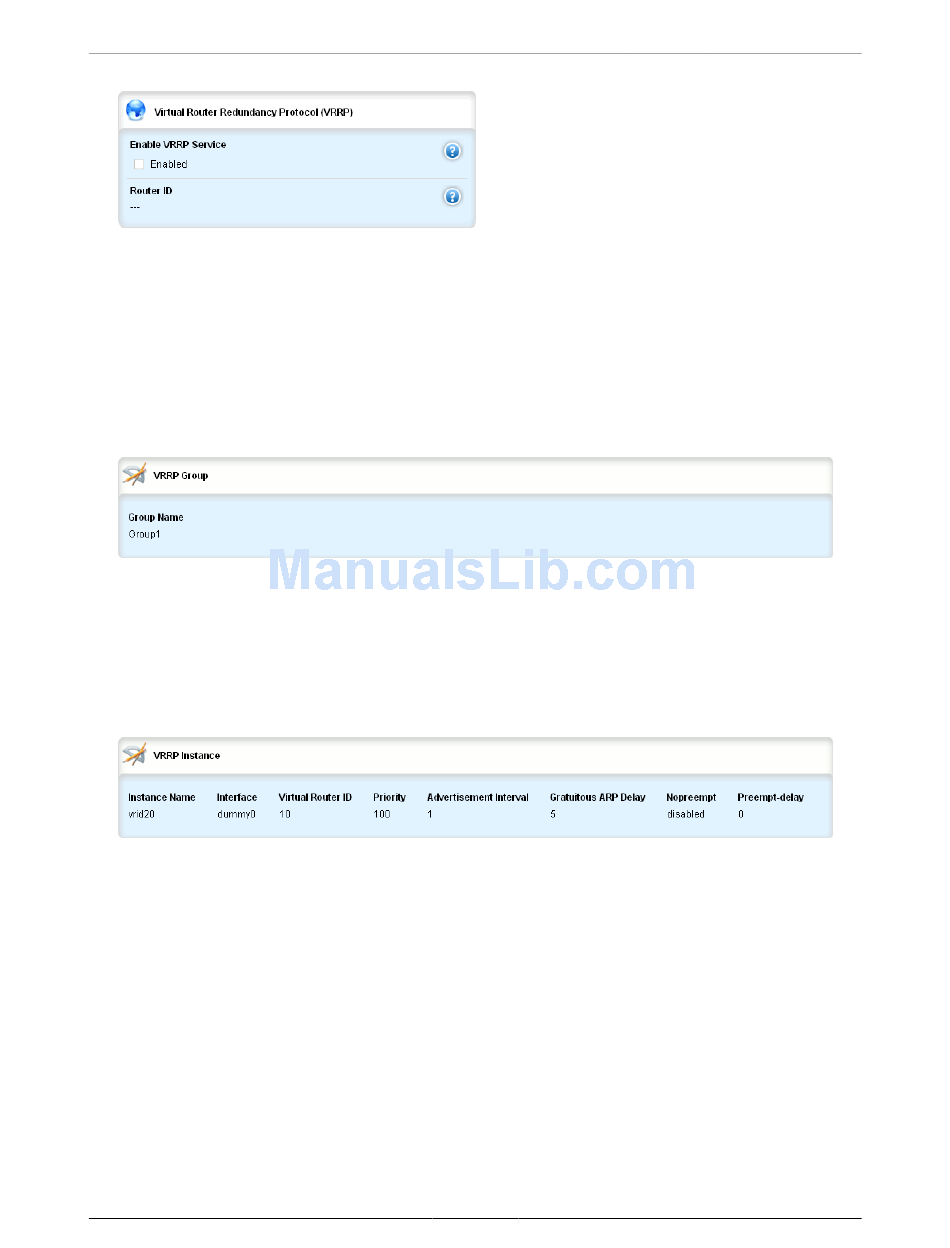

Figure 40.4. Virtual Router Redundancy Protocol (VRRP) Form
The Virtual Router Redundancy Protocol (VRRP) form appears on the same screen as the VRRP menu.
In the Virtual Router Redundancy Protocol (VRRP) form, enable or disable the VRRP service.
Enable VRRP Service
Enables VRRP Service.
Router ID
Synopsis: string
The router ID for VRRP logs.
Figure 40.5. VRRP Group Table
The VRRP Group table displays configured VRRP groups. To display this table, navigate to services/
vrrp/group.
Group Name
Synopsis: string
The group name.
Figure 40.6. VRRP Instance Table
To display this table, navigate to services/vrrp/instance.
ROX™ v2.2 User Guide 479 RuggedBackbone™ RX1500
