30. Network Discovery

30.2. LLDP Parameters

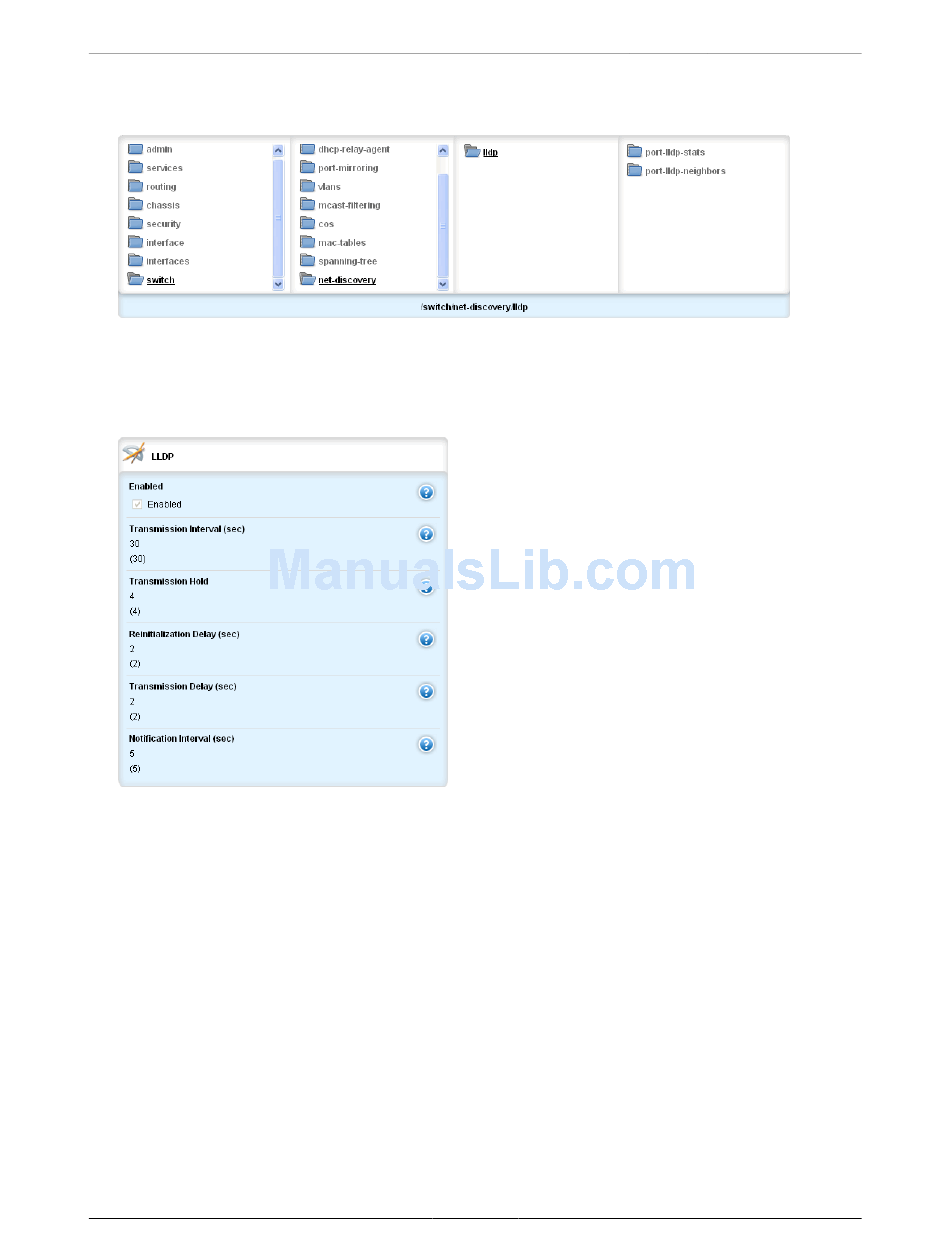

Figure 30.2. Net-discovery LLDP menu
The Net-discovery LLDP menu is accessible from the main menu under switch. The path to this menu
is switch/net-discovery/lldp. The LLDP form, LLDP Global Statistics Form and LLDP Local System form
appear on the same screen as the menu.
Figure 30.3. LLDP form
This form is used to configure the Network Discovery Protocol (LLDP).
Enabled
Synopsis: boolean
Default: true
Enables the LLDP protocol. Note that LLDP is enabled on a port when LLDP is enabled globally
and along with enabling per port setting in Port LLDP Parameters menu.
Transmission Interval (sec)
Synopsis: integer
Default: 30
The interval at which LLDP frames are transmitted on behalf of this LLDP agent.
Transmission Hold
Synopsis: integer
Default: 4
ROX™ v2.2 User Guide 346 RuggedBackbone™ RX1500
