23. WAN

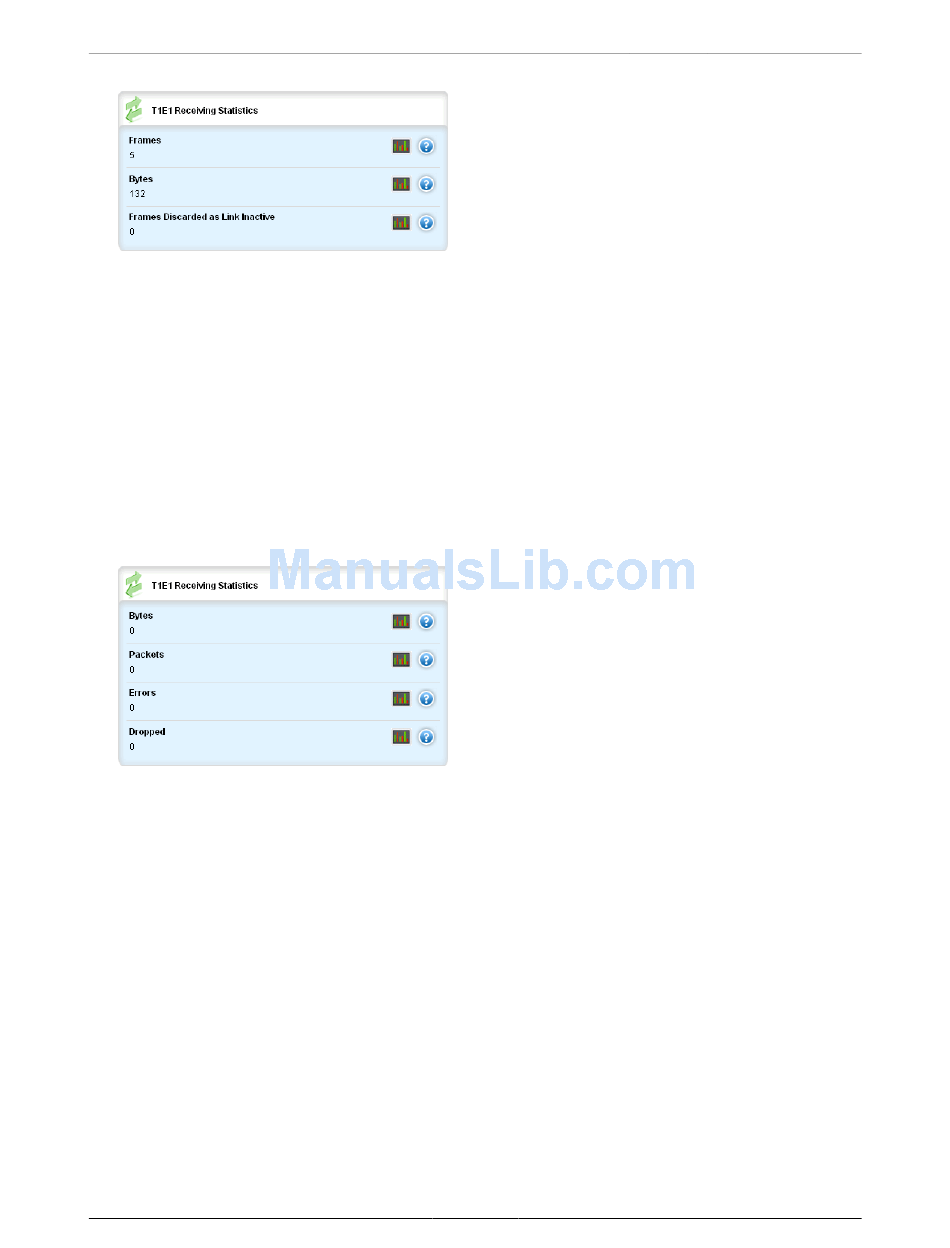

Figure 23.22. T1E1 Receiving Statistics form
The path to this form is interfaces/wan/t1e1/{line module}/receive-stats.
Frames
Synopsis: unsigned integer
The number of frames received.
Bytes
Synopsis: unsigned integer
The number of bytes received.
Frames Discarded as Link Inactive
Synopsis: unsigned integer
Received frames that were discarded (link inactive).
Figure 23.23. T1E1 Receiving Statistics Form 2
The path to this form is interfaces/wan/t1e1/{line module}/receive.
Bytes
Synopsis: unsigned long integer
Number of bytes received.
Packets
Synopsis: unsigned long integer
Number of packets received.
Errors
Synopsis: unsigned integer
Number of error packets received.
Dropped
Synopsis: unsigned integer
Number of packets dropped.
ROX™ v2.2 User Guide
251
RuggedBackbone™ RX1500
