33. Tunnelling

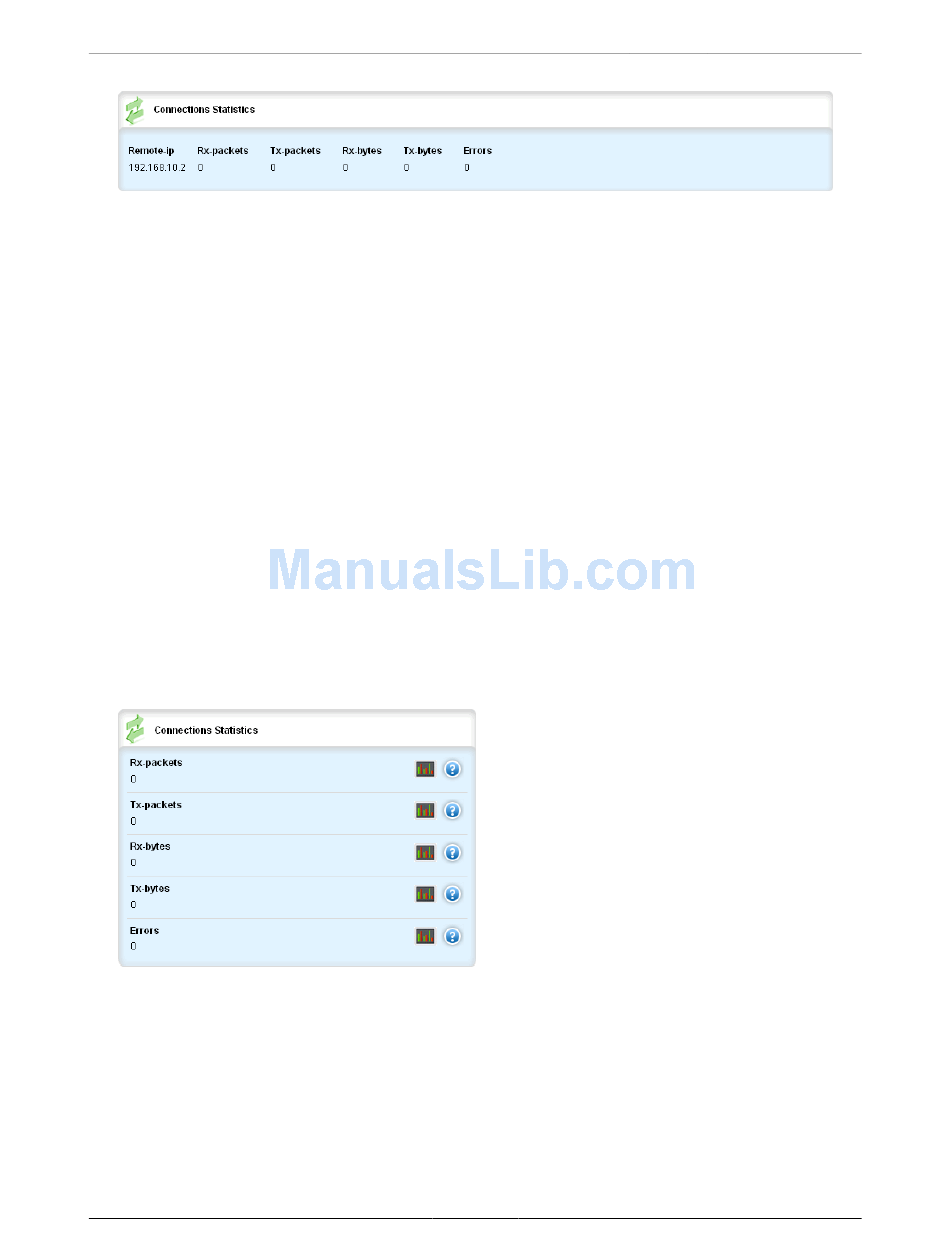

Figure 33.39. Connections Statistics table
remote-ip
Synopsis: IPv4 address in dotted-decimal notation
IP address of remote goose daemon
rx-packets
Synopsis: unsigned integer
The number of frames received over the tunnel
tx-packets
Synopsis: unsigned integer
The number of frames transmitted over the tunnel
rx-bytes
Synopsis: unsigned integer
The number of bytes received over the tunnel
tx-bytes
Synopsis: unsigned integer
The number of bytes transmitted over the tunnel
errors
Synopsis: unsigned integer
The number of errors over the tunnel
Figure 33.40. Connections Statistics form
33.3.3.3.2. Status Generic
The forms and tables in this section are located under tunnel/l2tunneld/status/generic.
ROX™ v2.2 User Guide 390 RuggedBackbone™ RX1500
