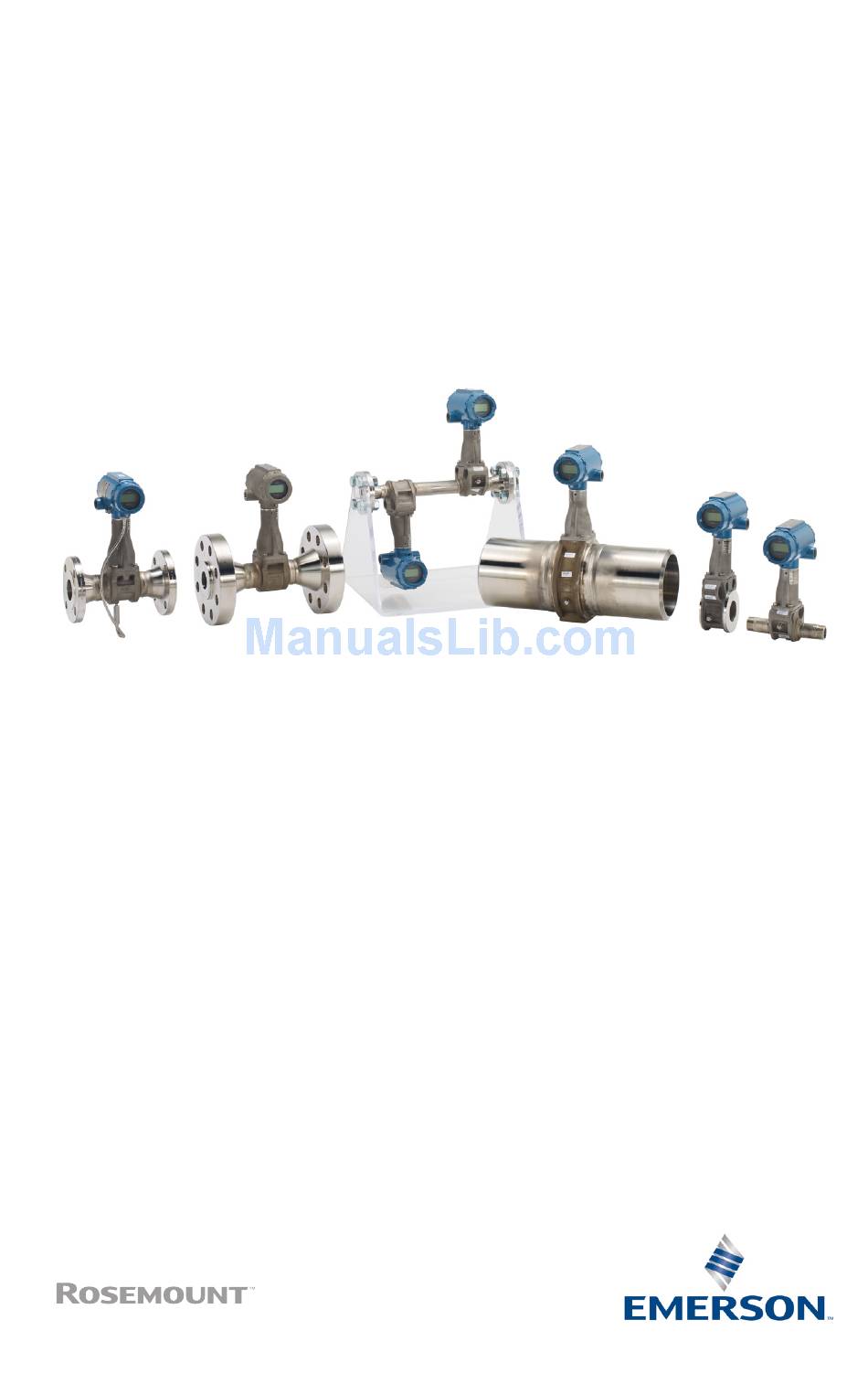

Quick Start Guide
00825-0100-4004, Rev FC
September 2017
™
Rosemount
8800D Series Vortex
Flowmeter

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount 8800D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Rosemount 8800D Series

Summary of Contents for Emerson Rosemount 8800D Series

  • Page 1 Quick Start Guide 00825-0100-4004, Rev FC September 2017 ™ Rosemount 8800D Series Vortex Flowmeter...

  • Page 2: Table Of Contents

    Intrinsically Safe (I.S.) installations. Refer to the product reference manual for more instruction. The manuals and this guide are also available electronically on www.emerson.com/rosemount. Explosions could result in death or serious injury. Installation of this transmitter in an explosive environment must be in accordance with the appropriate local, national, and international standards, codes, and practices.

  • Page 3: Mount The Flowmeter

    Quick Start Guide April 2016 2.0 Installation 2.1 Mount the flowmeter Design process piping so the meter body will remain full, with no entrapped air. The vortex flowmeter can be installed in any orientation without affecting accuracy. However, the following are guidelines for certain installations. Vertical mounting If the vortex flowmeter will be installed in a vertical orientation: Install upward or downward flow for gas or steam.
  • Page 4 April 2016 Quick Start Guide High temperature mounting The maximum temperature for integral electronics is dependent on the ambient temperature where the flowmeter is installed. The electronics must not exceed 185 °F (85 °C). Figure 3 shows combinations of ambient and process temperatures needed to maintain a housing temperature of less than 185 °F (85 °C).
  • Page 5 Quick Start Guide April 2016 Steam installations Avoid installation shown in Figure 4. Such conditions may cause a water-hammer condition at start-up due to trapped condensation. Figure 4. Improper Installation Upstream/downstream requirements The Rosemount 8800D Flowmeter may be installed with a minimum of 10 straight pipe diameters (10D) upstream and five straight pipe diameters (5D) downstream by following the K-factor corrections as described in the Rosemount 8800...
  • Page 6 April 2016 Quick Start Guide Wafer style installation Figure 6. Wafer Style Installation Flow A. Installation studs and nuts (supplied by customer) B. Alignment ring C. Gaskets (supplied by customer) Flanged-style installation Figure 7. Flanged-Style Flowmeter Installation Flow A. Installation bolts and nuts (supplied by customer) B.

  • Page 7: Installation Procedures

    Quick Start Guide April 2016 Insert integral temperature sensor (MTA option only) Installation procedures Note Step number of procedure corresponds with number in drawing (Figure 1. Slide the thermocouple bolt (1) over the thermocouple (TC). 2. Place the 2-part ferrule (2) over the end tip of the thermocouple (TC). 3.
  • Page 8 April 2016 Quick Start Guide Remote electronics If you order one of the remote electronics options (options R10, R20, R30, R33, R50, or RXX), the flowmeter assembly ships in two parts: The meter body with an adapter installed in the support tube and an ...

  • Page 9: Consider Housing Rotation

    Quick Start Guide April 2016 Note Consult factory for SST installation. 1. If the coaxial cable will be run in conduit, carefully cut the conduit to the desired length to provide for proper assembly at the housing. A junction box may be placed in the conduit run to provide a space for extra coaxial cable length.

  • Page 10: Set Jumpers

    April 2016 Quick Start Guide Caution Do not pull the housing more than 1.5-in. (40 mm) from the top of the support tube until the sensor cable is disconnected. Damage to the sensor may occur if this sensor cable is stressed. 3.

  • Page 11: Connect Wiring And Power Up

    Quick Start Guide April 2016 ™ Fieldbus OUNDATION If security and simulate enable jumpers are not installed, the flowmeter will operate normally with the default security “OFF” and simulate enable “OFF”. Figure 11. F Fieldbus Jumpers and LCD Display OUNDATION SIMULATE ENABLE SECURITY 2.4 Connect wiring and power up...
  • Page 12 April 2016 Quick Start Guide Conduit installation Prevent condensation in any conduit from flowing into the housing by mounting the flowmeter at a high point in the conduit run. If the flowmeter is mounted at a low point in the conduit run, the terminal compartment could fill with fluid. If the conduit originates above the flowmeter, route conduit below the flowmeter before entry.
  • Page 13 Quick Start Guide April 2016 Caution Do not connect the powered signal wiring to the test terminals. Power could damage the test diode in the test connection. Twisted pairs are required to minimize noise pick up in the 4 - 20 mA signal and digital communication signal.
  • Page 14 April 2016 Quick Start Guide Figure 14. Flowmeter Wiring for HART Protocol 4-20 mA Wiring 250  4-20 mA and Pulse Wiring with Electronic Totalizer/Counter 250  A. Power Supply B. Power Supply with Counter Note Installation of the transient protection terminal block does not provide transient protection unless the Rosemount 8800D case is properly grounded.
  • Page 15 Quick Start Guide April 2016 Figure 15. Flowmeter Field Wiring for F Fieldbus Protocol OUNDATION 6234 ft (1900 m) max (depending upon cable characteristics) (The power supply, filter, first terminator, and configuration tool are typically located in the control room.) A.

  • Page 16: Verify Configuration

    April 2016 Quick Start Guide 5. Verify the cover cannot be removed. 2.5 Verify configuration Before operating the Rosemount 8800D in an installation, you should review the configuration data to ensure it reflects the current application. In most cases, all of these variables are pre-configured at the factory.
  • Page 17 Quick Start Guide April 2016 Table 2. Fast Keys for Rosemount 8800D Device Revision 1 DD Revision 2 and Device Revision 2 DD Revision 1 Function HART Fast Keys Function HART Fast Keys Alarm Jumpers 1, 4, 2, 1, 3 Meter Body Number 1, 4, 1, 5 Analog Output...
  • Page 18 April 2016 Quick Start Guide Table 3. Fast Keys for Rosemount 8800D Device Revision 2 DD Revision 3 HART Fast HART Fast Function Function Keys Keys Alarm Direction 1, 3, 1, 3, 2 Percent of Range 3, 4, 3, 2 Analog Output 3, 4, 3, 1 Polling Address...
  • Page 19 Quick Start Guide April 2016 Table 4. Fast Keys for Rosemount 8800D HART 7 Device Revision 2 (DD Revision 1)/ HART 5 Device Revision 3 (DD Revision 1) Function Fast Key Function Fast Key Analog Output 3, 4, 3, 1 Polling Address 2, 2, –...

  • Page 20: Product Certifications

    The CE Declaration of Conformity for all applicable European directives for this product can be found on our website at www.emersonprocess.com/rosemount. A hard copy may be obtained by contacting our local sales office. 4.3 ATEX Directive Emerson Process Management complies with the ATEX Directive.
  • Page 21 Quick Start Guide April 2016 4.4 European Pressure Equipment Directive (PED) Rosemount 8800D Vortex Flowmeter Line Size 40 mm to 300 mm Certificate Number 4741-2014-CE-HOU-DNV 0575 or 0496 Module H Conformity Assessment Mandatory CE-marking for flowmeters in accordance with Article 15 of the PED can be found on the flowtube body.
  • Page 22 April 2016 Quick Start Guide Canadian Standards Association (CSA) E6 Explosion-Proof for Class I, Division 1, Groups B, C, and D; Dust-ignition proof for Class II and Class III, Division 1, Groups E, F, and G Class I, Zone 1, AEx d [ia] IIC T6 Gb (-50 °C ≤ Ta ≤ 70 °C) Factory Sealed;...
  • Page 23 Quick Start Guide April 2016 ATEX FISCO IA Certification No. Baseefa05ATEX0084X ATEX Marking II 1 G Ex ia IIC T4 Ga (-60 °C  Ta  60 °C) 2460 Special Conditions for Safe Use (X): 1. When fitted with 90V transient suppressors (T1 option), the equipment is not capable of passing the 500V isolation test.
  • Page 24 April 2016 Quick Start Guide on such surfaces. The enclosure must not be rubbed or cleaned with a dry cloth. 2. When the equipment is installed, particular precautions must be taken to ensure, taking into account the effect of process fluid temperature, that the ambient temperature of the electrical housing of the equipment meets the marked protection type temperature range.
  • Page 25 Quick Start Guide April 2016 I7 Certificate No. IECEx BAS05.0028X Ex ia IIC T4 Ga (-60 °C  T  70 °C) 4-20 mA HART Ex ia IIC T4 Ga (-60 °C  T  60 °C) Fieldbus 4-20 mA HART Fieldbus entity FISCO input entity parameters...
  • Page 26 April 2016 Quick Start Guide IECEx Dust Certification IEC 60079-0: 2011 IEC 60079-31: 2013 NF Certificate: IECEx BAS 17.0019X Ex tb IIIC T85°C Db (-20 °C ≤ Ta ≤ 70 °C) Maximum Working Voltage = 42 VDC 4-20 mA HART Maximum Working Voltage = 32 VDC Fieldbus Special Conditions for Safe Use (X): 1.
  • Page 27 Special Conditions for Safe Use (X): 1. The maximum allowable length of the interconnecting cable between transmitter and sensor is 152 m. The cable shall also be provided by Rosemount Inc., or by Emerson Process Management Flow Technologies Co., Ltd.
  • Page 28 April 2016 Quick Start Guide I. S. Certification GB3836.1 – 2010 GB3836.4 – 2010 GB3836.20 – 2010 I3 Certification No. GYJ17.1196X Ex ia IIC T4 Ga (-60 °C Ta + 70 °C) 4-20 mA HART Ex ia IIC T4 Ga (-60 °C Ta + 60 °C) Fieldbus 4-20 mA HART Fieldbus entity FISCO input...
  • Page 29 Quick Start Guide April 2016 Type n Certification GB3836.1 – 2010 GB3836.4 – 2010 GB3836.8 – 2014 N3 Certification No. GYJ17.1197X Ex nA ic IIC T5 Gc (- 50 °C  T  +70 °C) 4-20 mA HART Ex nA ic IIC T5 Gc (- 50 °C  T ...
  • Page 30 April 2016 Quick Start Guide E4 Certificate: CML17JPN1145X Ex d [ia] IIC T6 Ga/Gb (integral transmitter and sensor) Ex d [ia Ga] IIC T6 Gb (remote transmitter) Ex ia IIC T6 Ga (remote sensor) Ambient temperature range: -20 °C to +60 °C Process temperature range: -202 °C to +427 °C 42 VDC Max, 4-20 mA HART 32 VDC Max, Fieldbus...
  • Page 31 Quick Start Guide April 2016 E2 Certification Number: TÜV 16.1959 X Ex d [ia] IIC T6 Ga/Gb (Integral Transmitter) Ex d [ia Ga] IIC T6 Gb (Remote Transmitter) Ex ia IIC T6 Ga (Remote Sensor) Ambient temperature range: -50 °C  Ta  +70 °C Process temperature range: -202 °C to +427 °C Power Supply: 42 Vdc Max 4-20 mA HART Power Supply: 32 Vdc Max Fieldbus...
  • Page 32 April 2016 Quick Start Guide and transmitter with Ex marking 1Ex d [ia Ga] IIC T6 Gb X cabling in explosive area must be conducted according to requirements of IEC 60079-14-2011. Sheath cables must be designed for a maximum ambient temperature;...
  • Page 33 Quick Start Guide April 2016 2Ex nA ic IIC T5 Gc X (-50°C  Ta  70°C) Electrical parameters: The maximum DC voltage (with output 4-20 mA HART/pulse) 42V; Maximum supply DC voltage (with output signal Foundation Fieldbus and FISCO) 32V Special conditions for safe use (X): 1.
  • Page 34 April 2016 Quick Start Guide Figure 16. Rosemount 8800D Declaration of Conformity...
  • Page 36 April 2016 Quick Start Guide...
  • Page 37 Quick Start Guide April 2016...
  • Page 38 April 2016 Quick Start Guide...
  • Page 39 Quick Start Guide April 2016...
  • Page 40 F +44 0800 966 181 ©2017 Rosemount, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount, 8600, 8700, 8800 marks are marks of one of the Emerson Automation Solutions family of companies. All other...
