Lens Options for Model 'C4900'
•

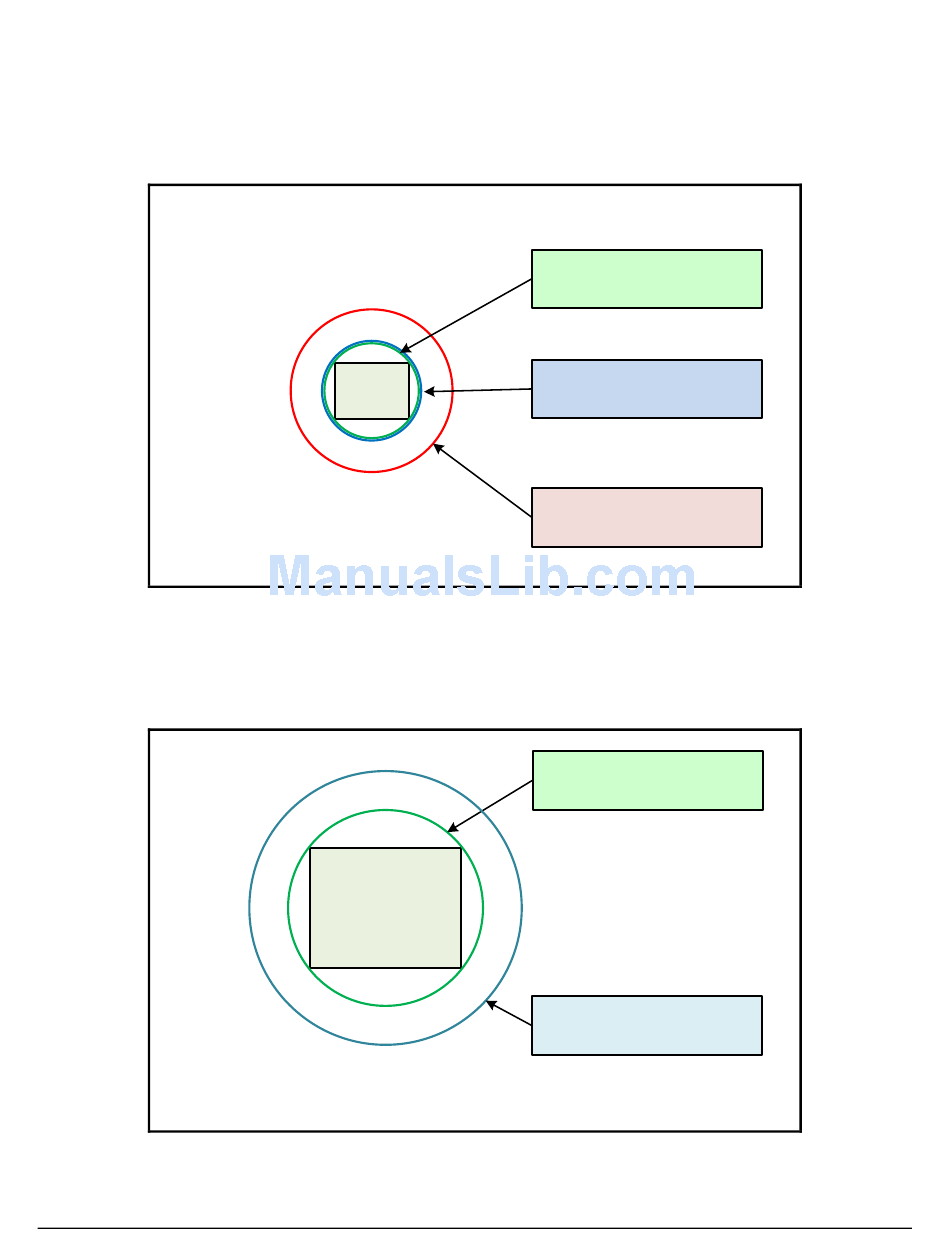

The following figure shows the lens image circles relative to Genie Nano model using the
OnSemi AR1820HS sensor.
Lens Options for Models 'M/C2590' & 'M/C 2540'
The following figure shows the lens image circles relative to Genie Nano models using the
•
OnSemi Python5000 sensor.
A typical 1" lens will fully illuminate these sensors.
•
Nano Series GigE Vision Camera
1/2.3" Lens (~7.8mm)
Image Circle
1/2" Lens (~8mm)
Image Circle
2/3" Lens (~11mm)
Image Circle
1" Lens (~16mm)
Image Circle
1.3" Lens (~22.5mm)
Image Circle
Additional Reference Information
•
