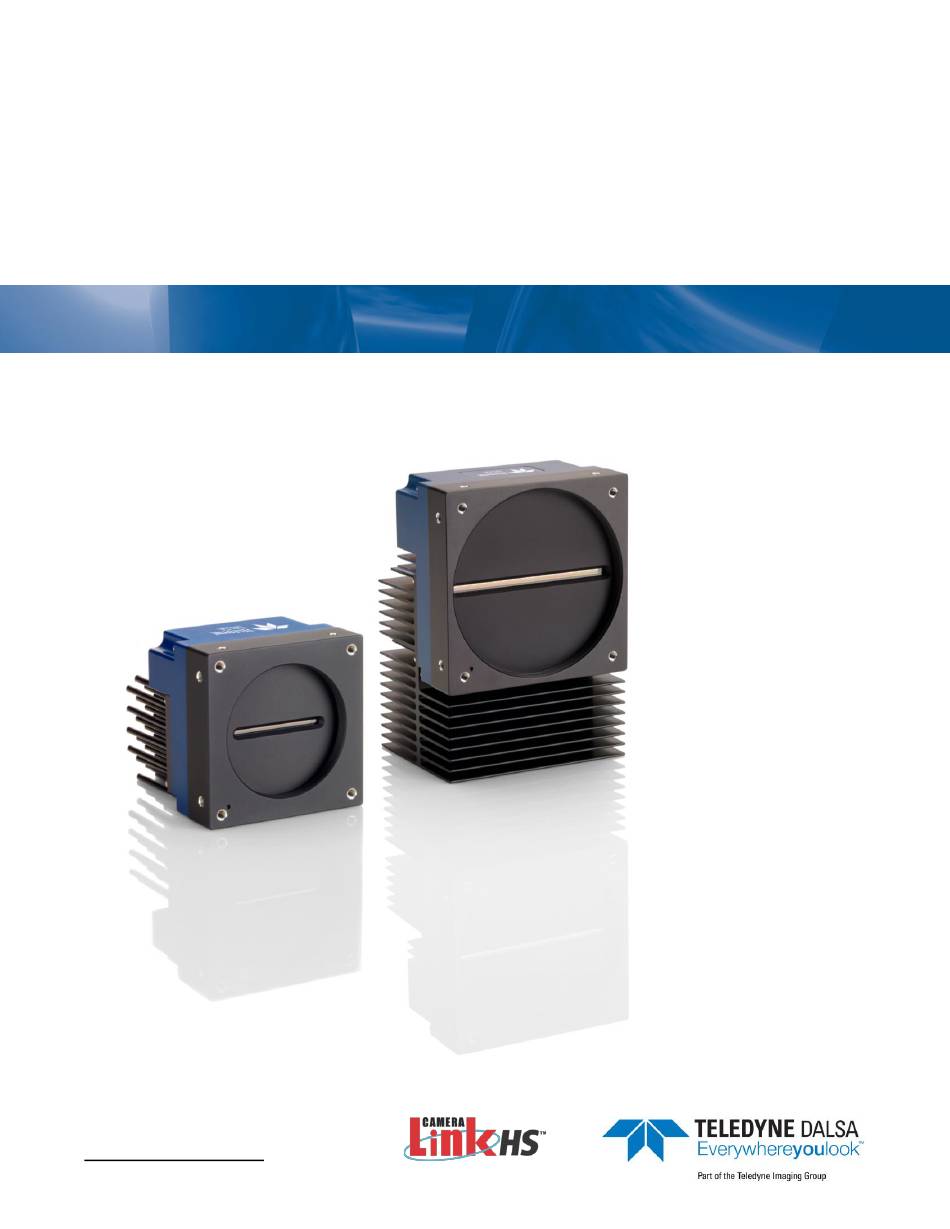

Linea™ HS Series
Camera User's Manual
Monochrome CMOS TDI Line Scan Cameras
sensors | cameras | frame grabbers | processors | software | vision solutions
03-032-25033-00
www.teledynedalsa.com
Models
HL-FM-04K30H-00-R
HL-FM-08K30H-00-R
HL-FM-13K18H-00-R
HL-FM-16K15A-00-R
HL-HM-08K30H-00-R
HL-HM-08K40H-00-R
HL-HM-09K40H-00-B
HL-HM-13K30H-00-R
HL-HM-16K30H-00-R
HL-HM-16K40H-00-R
HL-HM-16K40H-00-B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Linea HS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne Linea HS Series

Summary of Contents for Teledyne Linea HS Series

  • Page 1 Linea™ HS Series Camera User's Manual Monochrome CMOS TDI Line Scan Cameras sensors | cameras | frame grabbers | processors | software | vision solutions Models HL-FM-04K30H-00-R HL-FM-08K30H-00-R HL-FM-13K18H-00-R HL-FM-16K15A-00-R HL-HM-08K30H-00-R HL-HM-08K40H-00-R HL-HM-09K40H-00-B HL-HM-13K30H-00-R HL-HM-16K30H-00-R HL-HM-16K40H-00-R HL-HM-16K40H-00-B 03-032-25033-00 www.teledynedalsa.com...
  • Page 2 All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from Teledyne DALSA.
  • Page 3 Connecting and Powering up the Camera ................ 28 Testing Acquisition......................29 HS .................... 32 SING XPERT WITH INEA CamExpert Panes......................32 CamExpert View Parameters Option................. 33 OVERVIEW OF TDI TECHNOLOGY ______________________________________________ 34 Arrays and Stages ......................34 Contents • iii Linea HS Series Monochrome Cameras...
  • Page 4 Flat Field Control Feature Description ................73 Image Filter Mode ......................75 ......................76 MAGE ORMAT ATEGORY Image Format Control Feature Description ............... 76 ..................... 79 CCESS ONTROL ATEGORY File Access Control Feature Descriptions ................. 79 iv • Contents Linea HS Series Monochrome Cameras...
  • Page 5 Set up Dark and Bright Image Acquisitions with the Histogram Tool ......110 Flat Field Correction Calibration ..................112 REVISION HISTORY _________________________________________________________ 117 CONTACT INFORMATION ____________________________________________________ 118 ........................ 118 ALES NFORMATION ....................... 118 ECHNICAL UPPORT Contents • v Linea HS Series Monochrome Cameras...
  • Page 6 • Contents Linea HS Series Monochrome Cameras...
  • Page 7 (CX4 or LC connector). Teledyne DALSA’s Linea™ HS cameras and compatible frame grabbers combine to offer a complete solution for the next generation of automatic optical inspection systems. This camera is recommended for detecting small defects at high speeds and over a large field of view in LCD and OLED flat panel displays, DNA sequencing, printed circuit boards, film and large format web materials.
  • Page 8 Flat panel LCD and OLED display inspection • Web inspection • Printed circuit board inspection • Pathology • DNA sequencing • High throughput and high-resolution applications 2 • Linea HS Monochrome TDI Line Scan Cameras Linea HS Series Monochrome Cameras...
  • Page 9 5.0 x 5.0 µm CLHS CX4 HL-HM-16K40H-00-B 16,384 x 192 (128 + 64) 400 kHz mono / 200 kHz with HDR 5.0 x 5.0 µm CLHS CX4 Linea HS Monochrome TDI Line Scan Cameras • 3 Linea HS Series Monochrome Cameras...
  • Page 10 GenICam™ support (XML camera description file) Embedded within camera Sapera LT, including CamExpert GUI application and Latest version on the Teledyne DALSA website GenICam for Camera Link imaging driver 4 • Linea HS Monochrome TDI Line Scan Cameras Linea HS Series Monochrome Cameras...
  • Page 11 It is used where an industrial digital camera interfaces with a single or multiple frame grabbers, and with data rates exceeding those supported by the standard Camera Link. For more information see https://www.automate.org/vision/vision-standards/vision-standards-camera-link-hs. Linea HS Monochrome TDI Line Scan Cameras • 5 Linea HS Series Monochrome Cameras...
  • Page 12 1 Calibration at 80% saturation, measurements at 50% saturation. 2 Light sources vary spectrally and spatially: re-calibrate cameras in actual system. 3 PRNU: Photo-Response Non-Uniformity. 4 DSNU (FPN): Dark Signal Non-Uniformity (Fixed Pattern Noise). 6 • Specifications Linea HS Series Monochrome Cameras...
  • Page 13 Table 6: Camera Flash Memory Size Camera Flash memory size All models 4 GB Certification & Compliance Table 7: Camera Certification & Compliance Compliance See the Declarations of Conformity section at the end of this manual. Specifications • 7 Linea HS Series Monochrome Cameras...
  • Page 14 NEE @ 670 nm 0.4 pJ/cm2 0.4 pJ/cm2 0.4 pJ/cm2 0.4 pJ/cm2 * Random noise below quantization limit cannot be measured accurately; use higher bit depth or higher gain for comparison purposes. 8 • Specifications Linea HS Series Monochrome Cameras...
  • Page 15 § Sensor readout is 11 bits only. * Random noise below quantization limit cannot be measured accurately; use higher bit depth or higher gain for comparison. † Theoretical. See Note in section Maximum Line Rate. Specifications • 9 Linea HS Series Monochrome Cameras...
  • Page 16 § Sensor readout is 11 bits only. * Random noise below quantization limit cannot be measured accurately; use higher bit depth or higher gain for comparison purposes. † Theoretical. See Note in section Maximum Line Rate. 10 • Specifications Linea HS Series Monochrome Cameras...
  • Page 17 § Sensor readout is 11 bits only. * Random noise below quantization limit cannot be measured accurately; use higher bit depth or higher gain for comparison purposes. † Theoretical. See Note in section Maximum Line Rate. Specifications • 11 Linea HS Series Monochrome Cameras...
  • Page 18 The following graph shows the spectral responsivity and QE from the main array (128 stages), in 8-bit. Graph applies to 13K and 16K camera models (HL-xx-13Kxx, HL-xx-16Kxx). Figure 2: Spectral responsivity and QE for 13k and 16k models (except BSI model). 12 • Specifications Linea HS Series Monochrome Cameras...
  • Page 19 Models 9k and 16k Backside Illuminated The following graphs show the spectral responsivity and QE from the main array (128 stages), in 12-bit. Figure 3: 16K Monochrome Models Spectral Responsivity & QE Specifications • 13 Linea HS Series Monochrome Cameras...
  • Page 20 Test conditions: Max line rate—300 kHz, TDI Mode—128, Bit Mode—8, Black Level—31, Temperature—Ambient Figure 4: 8K Models Power vs. Input Voltage. Applies to 4K model also. Figure 5: 16K Models Power Vs. Input Voltage. Applies to 13K models also. 14 • Specifications Linea HS Series Monochrome Cameras...
  • Page 21 The following graph details power vs. input voltage for the HL-HM-16K40H-00 models. Test conditions: Max line rate—400 kHz, TDI Mode—128, Bit Mode—8, Black Level—31, Temperature—Ambient Figure 6: HL-HM-16K40H-00 Power Vs. Input Voltage. Specifications • 15 Linea HS Series Monochrome Cameras...
  • Page 22 • Increases exponentially with temperature, doubling approximately every 7°C. For best performance Teledyne DALSA recommends recalibrating the dark flat field coefficients (FPN) at a stable operating temperature; for more information of flat field correction, refer to the Flat Field section.
  • Page 23 Figure 8: Dark Signal vs Line Period Specifications • 17 Linea HS Series Monochrome Cameras...
  • Page 24 35 lines MAIN ARRAY 128 stages (TDI, TDI HDR, TDI HFW, TDI Area) Figure 9: Dual array in monochrome models. In parentheses, the TDI imaging modes in which each array is used. 18 • Specifications Linea HS Series Monochrome Cameras...
  • Page 25 These adjustments are using camera features outlined in this chapter. Video Data Processing Chain Analog System Horizontal video conversion PRNU gain Filter binning Output video Analog Vertical Black Gain offset gain gain binning Level Figure 10: Video data processing chain Specifications • 19 Linea HS Series Monochrome Cameras...
  • Page 26 Please carefully read sections Handling Precautions and Preventing Operational Faults Due to ESD before installation. If you are familiar with Camera Link HS (CLHS) cameras and Teledyne DALSA frame grabbers, follow the Quick Start Using a Teledyne DALSA Frame Grabber section to quickly install and test image acquisition with the Linea HS and the CamExpert tool provided with Sapera LT.
  • Page 27 Camera installations which do not protect against ESD (electrostatic discharge) may exhibit operational faults. Problems such as random data loss, random camera resets and other non-reoccurring control issues may all be solved by proper ESD management. Installation • 21 Linea HS Series Monochrome Cameras...
  • Page 28 Data transmits at 10 Gbps, which limits the effective distance of copper-based cables. Cables can be bought from an OEM. OEM cables are also available for applications where flexing is present. Contact Teledyne DALSA support for recommended cable vendors, cables and part numbers. LC Optical Fiber Data Cables The HL-FM camera models use two LC/SFP+ connectors for data output, and require cables with LC connections on both ends.
  • Page 29 All Linea HS require +12 V to +24 V DC power, supplied through a 12-pin Hirose circular male connector. The connector is used for power, trigger and strobe signals. The suggested female cable is the Hirose model HR10A- 10P-12S. WARNING See Power and GPIO Connections for connector signal details. Installation • 23 Linea HS Series Monochrome Cameras...
  • Page 30 Software and Device Driver Sapera LT SDK Sapera LT SDK is the image acquisition and control software development kit for Teledyne DALSA cameras. It includes the CamExpert application, which provides a graphical user interface to access camera features for configuration and setup. Sapera LT is available for download from the Teledyne DALSA website: www.teledynedalsa.com/en/products/imaging/vision-software/sapera-lt/download/...
  • Page 31 TDI cameras have relatively strict mounting requirements. For details, refer to application note Application Guideline for TDI Cameras, which can be downloaded from the Linea HS | Teledyne DALSA page. NOTE You need administrator rights for installation and updates.
  • Page 32 4. If a lens is attached to the camera, turn off the test pattern and grab live again. Adjust the lens aperture and focus, and/or adjust the camera's Acquisition Line Rate as needed. 26 • Installation Linea HS Series Monochrome Cameras...
  • Page 33 If no Sapera development is needed, you may install the Sapera LT runtime with CamExpert (SaperaLTCamExpertSetup.exe). Start the Sapera LT installer and follow instructions. On the Acquisition Components page, select the Teledyne DALSA frame grabbers and CameraLink GenCP compatible cameras option.
  • Page 34 • Connect the F G end of the CX4 cable to the J3 Camera Link HS input connector (middle) of the frame grabber. • Connect the power cable to the power supply. 28 • Installation Linea HS Series Monochrome Cameras...
  • Page 35 Testing Acquisition Starting Sapera CamExpert Sapera CamExpert is included as part of the Sapera LT SDK. It is Teledyne DALSA’s camera and frame grabber interfacing tool that allows you to quickly validate hardware setup, change parameter settings, and test image acquisition.
  • Page 36 Change the Pixel Format if needed. See Selecting the Data Format below. • In the Image Format category, select Test Pattern > Grey Diagonal Ramp. • Click Snap to view the diagonal ramp. 30 • Installation Linea HS Series Monochrome Cameras...
  • Page 37 The camera always outputs data to the frame grabber in a ‘planar’ format—when multiple arrays are used, the corresponding lines are output separately one after the other. Please refer to the frame grabber user’s documentation for further details on selection input and output pixel formats. Installation • 31 Linea HS Series Monochrome Cameras...
  • Page 38 Parameters pane: Allows the viewing or changing of all acquisition parameters supported by the acquisition device. CamExpert displays parameters only if those parameters are supported by the installed device. This avoids confusion by eliminating parameter choices when they do not apply to the hardware in use. 32 • Installation Linea HS Series Monochrome Cameras...
  • Page 39 CamExpert presents camera features based on their visibility attribute. CamExpert provides quick Visibility level selection via controls below each Category Parameter list [ << Less More >> ]. The user can also choose the Visibility level from the View ∙ Parameters Options menu. Installation • 33 Linea HS Series Monochrome Cameras...
  • Page 40 See section Synchronizing to Object Motion on ways to ensure proper synchronization of acquisition and object motion. See the TDI Primer on Teledyne DALSA's website for an illustration of how TDI works. Arrays and Stages A TDI sensor may comprise one, two or three arrays of pixels, where each array consists of two or more stages (rows, or lines).
  • Page 41 Figure 18: A 4k x 192 (128+64), dual array TDI sensor. The main array includes 128 stages, the secondary array has 64 stages. The arrays are separated; the distance between them is typically a multiple of the pixel size. Overview of TDI Technology • 35 Linea HS Series Monochrome Cameras...
  • Page 42 CamExpert can be used to configure the frame grabber for routing the encoder signal from the frame grabber input to the trigger input of the camera via the Camera Link HS data cable. 36 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 43 400 kHz 200 kHz x 2 275 kHz 137 kHz x 2* HL-HM-16K40H-00-B 400 kHz 200 kHz x 2 275 kHz 137 kHz x 2* * See Note below. Camera Performance and Features • 37 Linea HS Series Monochrome Cameras...
  • Page 44 • 12-bit HDR mode: 100 kHz x 2 For advice on your setup and achieving higher line rates, contact Teledyne DALSA customer support. Minimum Line Rate The minimum line rate is 10 kHz, except for the HL-HM-16K40H-00-B model, which is 30 kHz.
  • Page 45 If blur occurs only in the scan direction (see below), the scan direction is set incorrectly. Figure 19: Image with incorrect scan direction The diagram below shows the orientation of forward and reverse with respect to the camera body. Camera Performance and Features • 39 Linea HS Series Monochrome Cameras...
  • Page 46 Line spatial correction is used to that end. Spatial correction is not necessary when using the camera with one array only. For single array TDI operation, this functionality is disabled. 40 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 47 Teledyne DALSA Xtium and Xtium2 CLHS frame grabbers automatically perform spatial correction for Linea HS cameras. Dual Array Output Scan Direction Readout Readout Main array Secondary Array n lines spatial correction Target Line output 1 object n lines spatial correction...
  • Page 48 When enabled, alignment markers are displayed as graphic overlays in the image output. Spacing, offset and color of markers may be adjusted to facilitate alignment. Figure 23: Alignment Markers 42 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 49 To adapt to the imaged scene dynamic range, the HDR ratio can be selected, as shown in the table below. This ratio controls the number of stages used in each TDI pixel array. Table 18: HDR Mode Stages HDR Ratio Main Array Stages Secondary Array Stages Camera Performance and Features • 43 Linea HS Series Monochrome Cameras...
  • Page 50 The table below indicates, for the available TDI modes, the possible frame grabber's image buffer formats that can be used depending on the information to retrieve. 44 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 51 HDR generates 2 images. If you need the merged Monochrome 8-bits (2 planes) result, select Monochrome 8-bits, otherwise select Monochrome 8-bits (2 planes). TDI HFW Monochrome 8-bits TDI Area Monochrome 8-bits Camera Performance and Features • 45 Linea HS Series Monochrome Cameras...
  • Page 52 Row Gain can be adjusted from 1 to ~4x. System Gain can be adjusted from 1 to 10x. 46 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 53 Output Strobe Control Example Camera Trigger Trigger Delay Sensor Trigger Output Line Output Duration 3,4,5 or 6 Output Delay Set to Trigger Delay + 1.6 µs Figure 25: Strobe Timing Camera Performance and Features • 47 Linea HS Series Monochrome Cameras...
  • Page 54 In addition, an Exposure Active signal is generated and can be supplied to any of the GPIO outputs. This allows triggering or timing external light sources. The following diagram illustrates the logical control signal flow in the Linea HS series camera family. The outputLineSource, outputLinePulseDelay, outputLinePulseDuration and LineInverter allow the user to control a strobe light source in order to coordinate with the sensor exposure.
  • Page 55 The Linea camera has many different modes of operation. It is strongly recommended that the camera be flat fielded for the intended mode of operation. The FFC procedure is detailed in section Performing a Flat Field Calibration Using CamExpert. Camera Performance and Features • 49 Linea HS Series Monochrome Cameras...
  • Page 56 Camera is then powered off and allowed to cool down. • Camera is powered on and allowed to reach 30°C, with dark current correction enabled and using the coefficients created previously at 55°C. 50 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 57 Flat Field (PRNU) coefficients can be downloaded from the camera, customized and uploaded back to the camera. NOTE Customization requires a parameter viewer file. Contact Teledyne DALSA Technical Support. To upload or download coefficients 1. Open the File Access Control dialog.
  • Page 58 The difference in dark signal is minimized at higher line rates but can become noticeable in the image at reduced speed. If the application requires operation at line rates below 30 kHz, dark current correction is recommended. See Dark Current Correction. 52 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 59 If the contrast is below the set value, then the pixel filter is applied. A value of 0 will turn off the filters for all pixels and a value of 1 will keep the filter on for all pixels. Camera Performance and Features • 53 Linea HS Series Monochrome Cameras...
  • Page 60 Binning parameters can only be changed when image transfer to the frame grabber is stopped. Refer to the Acquisition and Transfer Control Category for details on stopping and starting the acquisition. 54 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 61 AOI parameters can only be changed when image transfer to the frame grabber is stopped. Refer to the Acquisition and Transfer Control Category for details on stopping and starting the acquisition. Camera Performance and Features • 55 Linea HS Series Monochrome Cameras...
  • Page 62 3. Select the first AOI and set its offset and width. If the other AOIs are large you may need to select them first and reduce their widths. 4. Repeat for each AOI in turn. 5. Start acquisition, using Acquisition and Transfer Control > Acquisition Start > Press. 56 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 63 EOI Width c. EOI Offset d. EOI Gain 4. Set EOI > On. NOTE EOI parameter settings are not stored in the camera and are erased at camera reset. Camera Performance and Features • 57 Linea HS Series Monochrome Cameras...
  • Page 64 To upload a LUT, use File Access Control Category > Upload / Download File > Settings and select Look Up Table to upload a file. The file format is described in 03-084-20133 Linea Binary File Format which can be obtained from Teledyne DALSA Technical Support. This document also includes Excel spreadsheet examples.
  • Page 65 5. In the Lookup Table dialog, under the Value column, select the output LUT by scrolling through the different options. Configure any required parameters (for example, Gamma correction requires a Correction factor). 6. Click Save LUT to create a LUT file. Camera Performance and Features • 59 Linea HS Series Monochrome Cameras...
  • Page 66 In the Parameters pane, a frame grabber feature must be selected, not a camera feature. • The Lookup table must be enabled to be created but should be disabled to use the camera LUT. 60 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 67 2. In Image Format category, set Pixel Format to Mono 12 (or BGR 12 if supported). 3. In Basic Timing category of the frame grabber, set Pixel Depth to 12. 4. In Acquisition and Transfer Control category, click Press next to Acquisition Start. Camera Performance and Features • 61 Linea HS Series Monochrome Cameras...
  • Page 68 To reset the camera to factory configuration • Select Factory Setting and click Load. To save the current camera configuration • Select one of the user sets and click Save. 62 • Camera Performance and Features Linea HS Series Monochrome Cameras...
  • Page 69 Changes made after a configuration is loaded will be lost if the camera resets, is powered down or loses power, unless the current configuration is saved again. By default, the user sets contain the factory settings. Operational Reference • 63 Linea HS Series Monochrome Cameras...
  • Page 70 (using the tag DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag not shown). Features listed in the description table but tagged as Invisible are typically reserved for Teledyne DALSA support or third-party software usage, and not typically required by end user applications.
  • Page 71 (BIST). Possible return values are device-specific. (RO) DFNC See Built-In Self-Test Codes for status code details. Refresh BIST deviceBIST Performs an internal test to determine the status of the Beginner device. (W) DFNC Operational Reference • 65 Linea HS Series Monochrome Cameras...
  • Page 72 In the Camera Information screen shot example above, the Power-On Status is showing Good, indicating that the camera powered up without any problems. Details of the BIST codes can be found in section Built-In Self-Test Codes of Troubleshooting Guide. 66 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 73 See section Saving & Restoring Camera Setup Configurations for details. Operational Reference • 67 Linea HS Series Monochrome Cameras...
  • Page 74 Updates the line rate provided to the camera by Beginner either internal or external sources. DFNC Acquisition Frame Rate AcquisitionFrameRate Returns the camera frame rate, in Hz. (Available in Beginner TDI Area mode). 68 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 75 System gain will apply the gain value while maintaining the existing gain ratios. Black Level BlackLevell A signed offset added to the output. DN_out = (DN_in + Black_Level) * Gain. Gain Gain Video signal multiplier. Beginner Operational Reference • 69 Linea HS Series Monochrome Cameras...
  • Page 76 (after any processing by the line inverter module). Falling Edge FallingEdge The trigger is considered valid on the falling edge. Any Edge AnyEdge The trigger is considered valid on any edge. 70 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 77 Output Line Pulse Delay outputLinePulseDelay Sets the delay (µs) before the output line pulse signal. Beginner DFNC Sets the width (duration) of the output line pulse in Beginner Pulse Duration outputLinePulseDuration microseconds (µs). DFNC Operational Reference • 71 Linea HS Series Monochrome Cameras...
  • Page 78 Output line is high. Refresh Line Status refreshLineStatus Updates the LineStatus feature. Beginner DFNC Line Status LineStatus Returns the current state of the GPIO line selected Expert with the LineSelector feature. (RO) 72 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 79 Enables or disables flat field correction. Beginner DFNC Flat field correction is disabled. Flat field correction is enabled. Clear Coefficients flatfieldCalibrationClearCoefficient Sets all FPN coefficients to 0 and all PRNU coefficients Beginner to 1. DFNC Operational Reference • 73 Linea HS Series Monochrome Cameras...
  • Page 80 When enabled, the same LUT is used for all colors. The output LUT is disabled and linear data is output. Gamma Correction Gamma LUT populated using the Gamma correction equation. User Defined UserDefined LUT uploaded by the user. 74 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 81 Sets the black level offset to apply to the selected EOI. Beginner Possible values range from -127 to 127. DFNC EOI Gain enhancedImageGain Sets the gain to apply to the selected EOI. Beginner Operational Reference • 75 Linea HS Series Monochrome Cameras...
  • Page 82 Horizontal width in output pixels. Equals to sum of Beginner AOI widths divided by horizontal binning factor. (RO) Height Height Height of the image provided by the device (in Beginner pixels). (RO) 76 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 83 PRNU file using the FileAccess > Miscellaneous > User PRNU feature. The PRNU coefficients will be applied to a midscale (128 DN) test image. Contact Teledyne DALSA support for an Excel file that can help with this. AOI Count multipleROICount...
  • Page 84 Alignment Marker Horizontal alignmentMarkerHorizontalOffset Pixel count before first horizontal alignment marker. Beginner Offset DFNC Alignment Markers Color alignmentMarkerBlack Alignment markers color. Beginner DFNC White White White alignment markers. Black Black Black alignment markers. 78 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 85 PRNU coefficients that are currently being used by the camera (not necessarily saved). Camera Data CameraData Camera information for customer support. This is a text file, please ensure that it has a .txt file name extension. Operational Reference • 79 Linea HS Series Monochrome Cameras...
  • Page 86 (RO) File Size FileSize Represents the size of the selected file in bytes. Guru File Access Control Dialog Click Setting to open the File Access Control dialog box. 80 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 87 If you are not using CamExpert to perform file transfers, pseudo-code for the CLHS File Transfer Protocol is as follows. To download a file from camera • Select the file by setting the FileSelector feature. • Set the FileOpenMode to Read. • Set the FileOperationSelector to Open. Operational Reference • 81 Linea HS Series Monochrome Cameras...
  • Page 88 Write to the file by setting FileOperationExecute to 1 and poll until 0 and complete • Read FileOperationStatus to confirm the write worked • Read FileOperationResult to confirm the number of bytes written. 82 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 89 In the Type list select Miscellaneous. • In the File Selector list select CameraData. • Click Download (from Camera). • Save the text file and send the file to Teledyne DALSA customer support. Operational Reference • 83 Linea HS Series Monochrome Cameras...
  • Page 90 One cable seven lanes (CX4). Refresh GenCP Status refreshGenCPStatus Updates the GenCP Status. Beginner DFNC Last GenCP Status genCPStatus Returns the last bad GenCP status. Reading this Beginner feature clears it. Sapera only. DFNC 84 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 91 Refresh CLHS 8b/10b Receive Guru clhsErrorCountRefresh Updates the selected receive error count value. Error Count DFNC Reset Receive Error Count clhsErrorCountReset Resets the selected receive error count value to 0. Guru DFNC Operational Reference • 85 Linea HS Series Monochrome Cameras...
  • Page 92 (WO) Acquisition Status AcquisitionStatus Reads the acquisition state. Beginner Acquiring Acquiring Currently acquiring and sending image data. Not Acquiring NotAcquiring Currently not acquiring or sending image data. 86 • Operational Reference Linea HS Series Monochrome Cameras...
  • Page 93 Basic heat management is achieved by mounting the camera onto a metal structure via its mounting screw holes. Heat dissipation is improved by using thermal paste between the camera body (not the front plate) and the metal structure plus the addition of a heatsink structure. Technical Specifications • 87 Linea HS Series Monochrome Cameras...
  • Page 94 Mechanical Drawings Figure 42: HL-FM-04K30H-00-R and HL-FM-08K30H-00-R Mechanical Drawing 88 • Technical Specifications Linea HS Series Monochrome Cameras...
  • Page 95 Figure 43: HL-HM-08K30H-00-R and HL-HM-08K40H-00-R Mechanical Drawing Technical Specifications • 89 Linea HS Series Monochrome Cameras...
  • Page 96 Figure 44: HL-FM-13K18H-00-R and HL-FM-16K15A-00-R Mechanical Drawing 90 • Technical Specifications Linea HS Series Monochrome Cameras...
  • Page 97 Figure 45: HL-HM-13K30H-00-R, HL-HM-16K30H-00-R, HL-HM-16K40H-00-R, HL-HM-16K40H-00-B Mechanical Drawing Technical Specifications • 91 Linea HS Series Monochrome Cameras...
  • Page 98 Camera Information category to refresh and read the camera’s input voltage measurement. Adjust the supply to ensure that it reads above or equal to 12 V. NOTE If your power supply does not meet these requirements, then the camera performance specifications are not guaranteed. 92 • Technical Specifications Linea HS Series Monochrome Cameras...
  • Page 99 Intended as a return path for GPIO signal. Not intended as a power ground. Do not connect to pins 1 or 9 or to the camera chassis. * Connect all power pins. Each pin is rated 2A. Technical Specifications • 93 Linea HS Series Monochrome Cameras...
  • Page 100 To reduce the chance of stress and vibration on the cables, we recommend that you use cable clamps, placed close to the camera, when setting up your imaging system. Stress or vibration of the heavy CLHS AOC cables may damage the camera’s connectors. 94 • Technical Specifications Linea HS Series Monochrome Cameras...
  • Page 101 Mating GPIO Cable Assembly An optional GPIO breakout cable (12-pin Female Hirose to 13-Pos Euro Block) is available for purchase from Teledyne DALSA under accessory number #CR-GENC-IOP00 to order. Figure 48: GPIO cable accessory #CR-GENC-IOP00 Technical Specifications • 95 Linea HS Series Monochrome Cameras...
  • Page 102 Declarations of Conformity Copies of the Declarations of Conformity documents are available on the product page on the Teledyne DALSA website or by request. FCC Statement of Conformance This equipment complies with Part 15 of the FCC rules. Operation is subject to the following conditions: 1.
  • Page 103 The wavelengths and intensity of light required to capture useful images vary per application. The image will be affected by speed, spectral characteristics, exposure time, light source characteristics, environmental and acquisition system specifics, etc. Look at Teledyne DALSA’s Knowledge Center for articles on this potentially complicated issue.
  • Page 104 (desired object resolution size). By similar triangles, the magnification is alternatively given by: Where f’ is the focal length and OD is the target object distance. �� = ��′/���� 98 • Additional Reference Information Linea HS Series Monochrome Cameras...
  • Page 105 45 mm. For each pixel in the image sensor to correspond to 100 µm in the object space, using the preceding equation, the object distance must be 450 mm (0.450 m). (10 ����)/(100 ����) = (45 ����)/���� ���� = 450 ���� (0.450 ��) Additional Reference Information • 99 Linea HS Series Monochrome Cameras...
  • Page 106 • When compressed air cannot clean the sensor, Teledyne DALSA recommends using lint-free ESD-safe cloth wipers or swabs that do not contain particles that can scratch the window. Do not use regular cotton swabs since these can introduce static charge to the window surface.
  • Page 107 Do not use volatile solvents such as benzene and thinners, as they can damage the surface finish. Additional Reference Information • 101 Linea HS Series Monochrome Cameras...
  • Page 108 The camera data file includes the operational configuration and status of the camera. This text file can be downloaded from the camera and forwarded to Teledyne DALSA Technical Customer support team to aid in diagnosis of any reported issues. See Saving & Restoring Camera Setup Configurations for details on downloading the Camera Data file.
  • Page 109 User Pattern. When selected, the camera will first output all pixel values to be half full scale. The user can then generate a custom test pattern by uploading PRNU coefficients that appropriately manipulate the half scale data to achieve the desired pattern. See section Custom Flat Field Coefficients for details. Troubleshooting Guide • 103 Linea HS Series Monochrome Cameras...
  • Page 110 0000 0000 0001 0000 0000 0000 0000 0000 (Reserved) 0x00200000 0000 0000 0010 0000 0000 0000 0000 0000 NO_FACT_PRNU 0x00400000 0000 0000 0100 0000 0000 0000 0000 0000 NO_FATFS 0x00800000 0000 0000 1000 0000 0000 0000 0000 0000 104 • Troubleshooting Guide Linea HS Series Monochrome Cameras...
  • Page 111 Has the encoder signal been connected to the correct pins of the I/O connector of the frame grabber? See the Xtium2-CLHS frame grabber user manual for details. • Do the encoder signal levels conform to the requirements outlined in the Xtium2-CLHS frame grabber user manual? Troubleshooting Guide • 105 Linea HS Series Monochrome Cameras...
  • Page 112 Smeared or Distorted Images To achieve a well-defined image, the multiple lines are summed together and delayed in a manner that matches the motion of the image across the sensor. 106 • Troubleshooting Guide Linea HS Series Monochrome Cameras...
  • Page 113 The greater the speed variation, the lower the target speed needs to be to avoid over-speed conditions. If the speed variation can be reduced by eliminating the backlash in the transport mechanism and / or optimizing the motor controller characteristics, then a higher target speed will be achievable. Troubleshooting Guide • 107 Linea HS Series Monochrome Cameras...
  • Page 114 The camera’s body has been designed with integrated heat fins to assist with convection cooling. The fins are sufficient to keep the camera at an acceptable temperature if convection flow is unimpeded. 108 • Troubleshooting Guide Linea HS Series Monochrome Cameras...
  • Page 115 The only means to recover from a thermal shutdown is to turn the camera’s power off. Once the camera has cooled down, the camera data can be restored by reapplying power to the camera. Troubleshooting Guide • 109 Linea HS Series Monochrome Cameras...
  • Page 116 Use CamExpert Statistics command while grabbing to display the image characteristics. In the Statistics dialog, use the Selected view list to select Histogram or Line Profile. Figure 52: CamExpert – Grab & Statistics Buttons 110 • Appendix Linea HS Series Monochrome Cameras...
  • Page 117 The sensor specification accounts for a small number of hot, stuck, or dead pixels (pixels that do not react to light over the full dynamic range specified for that sensor). Appendix • 111 Linea HS Series Monochrome Cameras...
  • Page 118 Bare Image Evaluation Before you perform the FFC, Teledyne DALSA recommends that you to try to improve the bare image quality first: a good bare image will improve the quality of the FFC. A bare image is obtained using your bright target with no gain applied.
  • Page 119 SNR perspective. All gains are digital multipliers and, as such, the gain scales up signal and noise proportionally. Use this method only as long as the SNR meets your application requirements. Keep the following in mind: • Ensure that the camera’s temperature is in a stable condition. Appendix • 113 Linea HS Series Monochrome Cameras...
  • Page 120 2. If using the Set Target option in the Calibration Algorithm parameter, adjust the Flat Field Calibration Target. A value of 200 DN is commonly used target in 8-bit output format. 114 • Appendix Linea HS Series Monochrome Cameras...
  • Page 121 Power-up Configuration dialog (see Saving & Restoring Camera Setup Configurations). The dialog allows you to save or load a configuration user set dynamically, or to load automatically a selected user set when resetting or powering the camera. Appendix • 115 Linea HS Series Monochrome Cameras...
  • Page 122 Figure 60: CamExpert – Power-up Configuration Dialog. 116 • Appendix Linea HS Series Monochrome Cameras...
  • Page 123 Revision History Revision Description Date Initial release. August 1, 2024 Revision History • 117 Linea HS Series Monochrome Cameras...
  • Page 124 Submit any support question or request via our website. Technical support form via our web page: Support requests for imaging product installations, Support requests for imaging applications www.teledynedalsa.com/en/support/options/ Camera support information Product literature and driver updates 118 • Contact Information Linea HS Series Monochrome Cameras...
