Teledyne G3-GM10-M0641 User Manual page 120

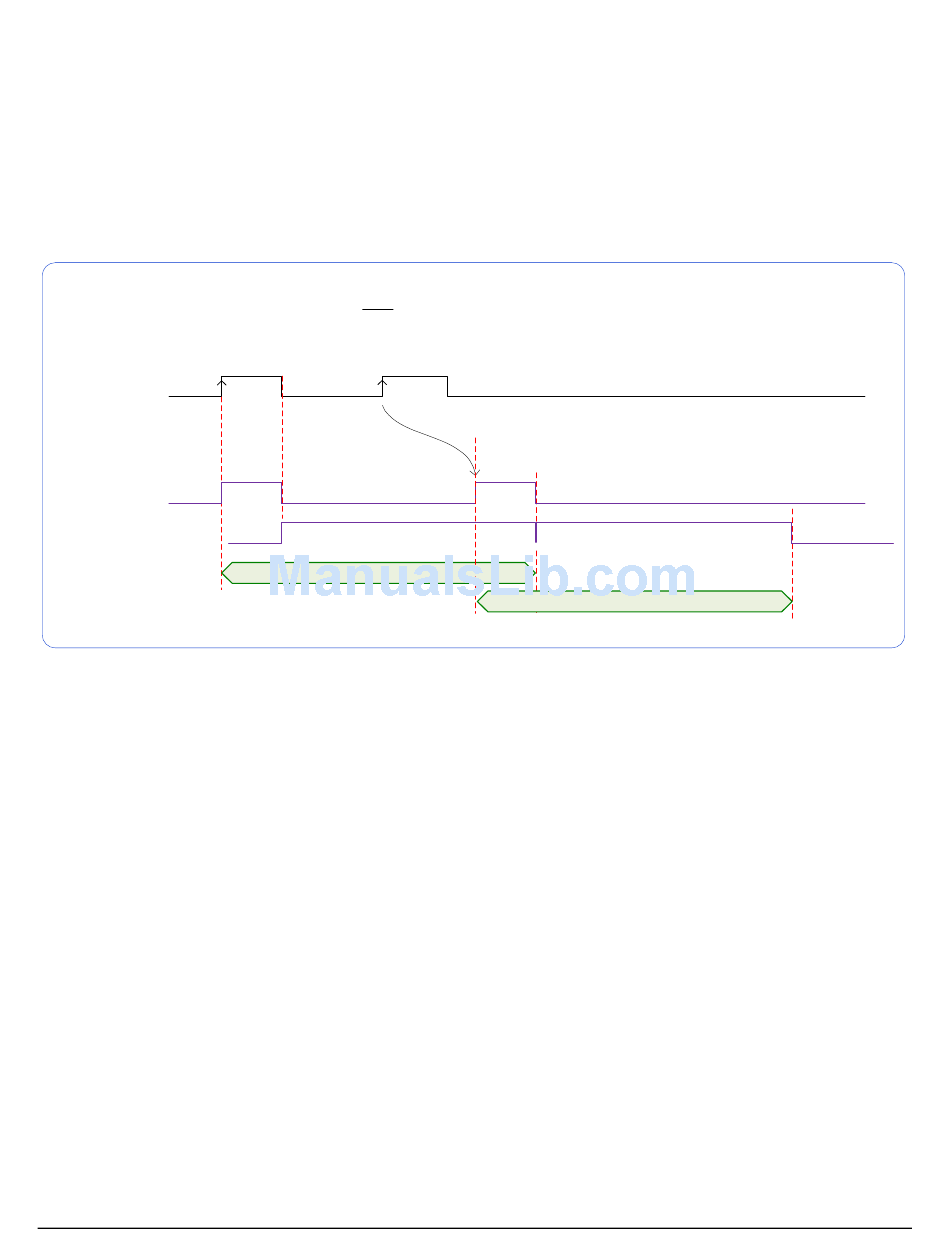

Diagram Conditions (OnSemi Sensors):
TriggerMode=On
•
• ExposureMode=TriggerWidth
• TriggerActivation=RisingEdge
TriggerDelay=0
•
• TriggerSelector=FrameStart
• ExposureAlignment=Synchronous
OnSemi Sensor TriggerOverlap= Readout and ExposureMode=TriggerWidth
Trigger Input
Frame Exposure
Frame Readout
•
118 Operational Reference
Exposure 1
Readout 1
Frame 1 Active period
Exposure 2 delayed so that it ends when Readout 1 ends
Exposure 2
Readout 2
Frame 2 Active period
Nano Series GigE Vision Camera
