4 DMS 1600 and DMS 3600 • Introduction

Installation

This section describes installation of the DMS matrix switchers,
including connections and features. Topics that are covered include:
•

Rear Panel

• Front Panel
Rear Panel
A Note on I/O Boards
See figure 2. Each I/O board is identified by the input and
output numbers supported by the board position. The input
and output numbers on the boards are identified as A through D.
Location A
Input
Input 2 Input 3
Input 1
DVI-D INPUTS
OUT IN OUT IN OUT IN
A B
A B C
ANAHEIM, CA
DVI-D INPUTS
OUT IN OUT IN OUT IN
A B C
PRIMARY POWER SUPPLY
100-240V 50/60Hz 1.2A MAX.
Input 5 Input 6

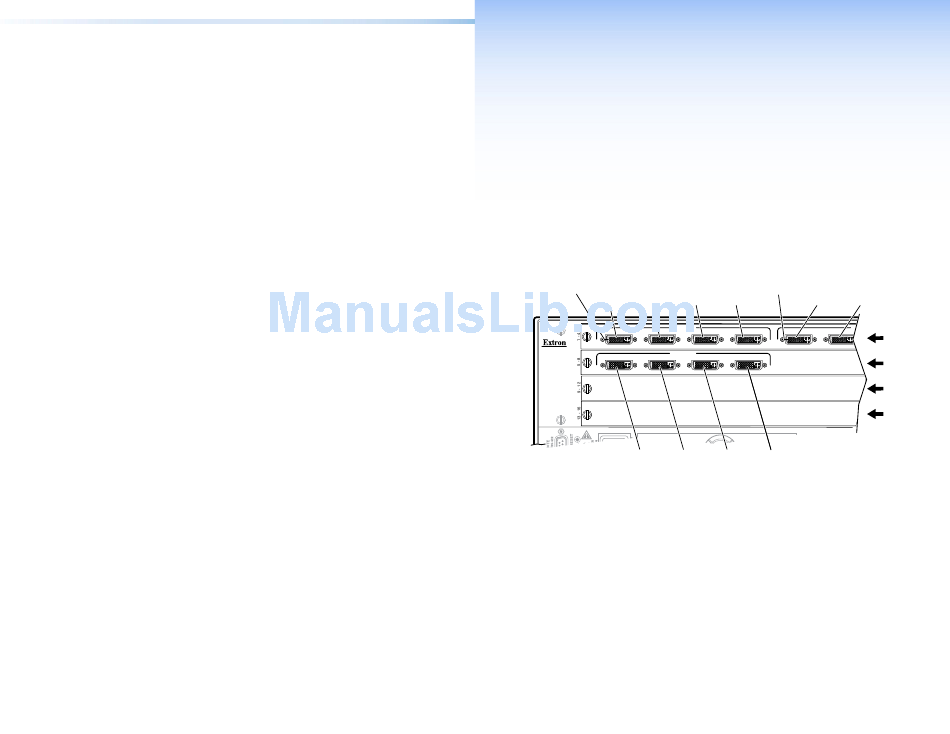

Figure 2. Arrangement of Inputs and Outputs on the I/O boards
The board position designators correspond to the input and
output numbers served by that position (1 through 4, 5 through 8,
and so on).
The location designators, A through D, correspond to the DVI input or
output, grouped with inputs on the left and outputs on the right and
numbered from left to right.
See figure 2. The input numbers supported by the I/O board in
locations 5 through 8 are as follows: A = 5, B = 6, C = 7, D = 8.
Location A
Output
Input 4 Output 1 Output 2
DV
OUT IN OUT IN OUT
C D A B
D E F
OUT IN OUT IN OUT IN
D E F
Input 7 Input 8
DMS 1600 and DMS 3600 • Installation
Slot 1
(1-4)
Slot 2
(5-8)
Slot 3
No board
installed
Slot 4
No board
installed
5
