Making Connections - Extron electronics DMS 1600 Setup Manual

8 1
DVI-D INPUTS
A B C
ANAHEIM, CA
DVI-D INPUTS
A B C
DVI-D INPUTS
DVI-D INPUTS
5
PRIMARY POWER SUPPLY
100-240V 50/60Hz 1.2A MAX.
3
4
100-240V 50/60Hz 1.2A MAX.
6

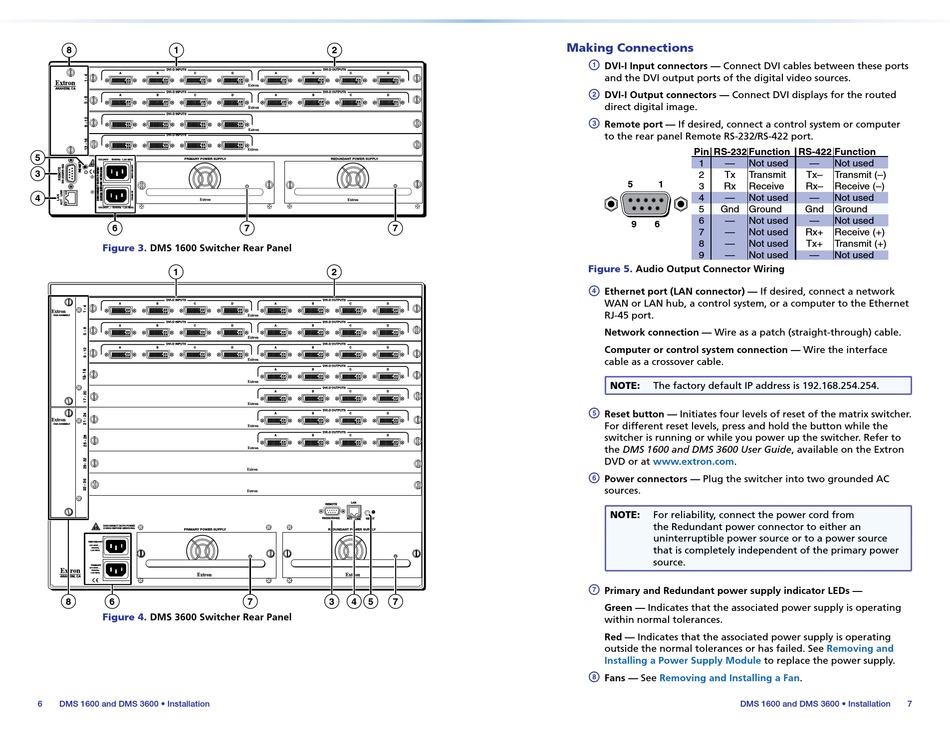

Figure 3. DMS 1600 Switcher Rear Panel
1
DVI-D INPUTS
A B C
FAN ASSIMBLY
DVI-D INPUTS
A B C
DVI-D INPUTS
A B C
FAN ASSIMBLY
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING
PRIMARY POWER SUPPLY
REDUNDANT
100-240V
50/60Hz
1.2A MAX.
PRIMARY
100-240V
50/60Hz
1.2A MAX.
ANAHEIM, CA
8 6
Figure 4.
DMS 3600 Switcher Rear Panel
6 DMS 1600 and DMS 3600 • Installation
2
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
D A B C D
REDUNDANT POWER SUPPLY
7 7
2
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
LAN
REMOTE
RS232/RS422
ACT LINK RESET
REDUNDANT POWER SUPPLY
7 3 4 5 7

Making Connections

a
DVI-I Input connectors — Connect DVI cables between these ports
and the DVI output ports of the digital video sources.
b
DVI-I Output connectors — Connect DVI displays for the routed
direct digital image.
c
Remote port — If desired, connect a control system or computer
to the rear panel Remote RS-232/RS-422 port.
Pin RS-232 Function
1 —
2 Tx
5
1
3 Rx
4 —
5 Gnd
6 —
9 6
7 —
8 —
9 —
Figure 5. Audio Output Connector Wiring
d
Ethernet port (LAN connector) — If desired, connect a network
WAN or LAN hub, a control system, or a computer to the Ethernet
RJ-45 port.
Network connection — Wire as a patch (straight-through) cable.
Computer or control system connection — Wire the interface
cable as a crossover cable.
NOTE: The factory default IP address is 192.168.254.254.
e
Reset button — Initiates four levels of reset of the matrix switcher.
For different reset levels, press and hold the button while the
switcher is running or while you power up the switcher. Refer to
the DMS 1600 and DMS 3600 User Guide, available on the Extron
DVD or at www.extron.com.
f
Power connectors — Plug the switcher into two grounded AC
sources.
NOTE: For reliability, connect the power cord from
the Redundant power connector to either an
uninterruptible power source or to a power source
that is completely independent of the primary power
source.
g
Primary and Redundant power supply indicator LEDs —
Green — Indicates that the associated power supply is operating
within normal tolerances.
Red — Indicates that the associated power supply is operating
outside the normal tolerances or has failed. See Removing and
Installing a Power Supply Module to replace the power supply.
h
Fans — See Removing and Installing a
DMS 1600 and DMS 3600 • Installation
RS-422 Function
Not used — Not used
Transmit Tx– Transmit (–)
Receive Rx– Receive (–)
Not used — Not used
Ground Gnd Ground
Not used — Not used
Not used Rx+ Receive (+)
Not used Tx+ Transmit (+)
Not used — Not used
Fan.
