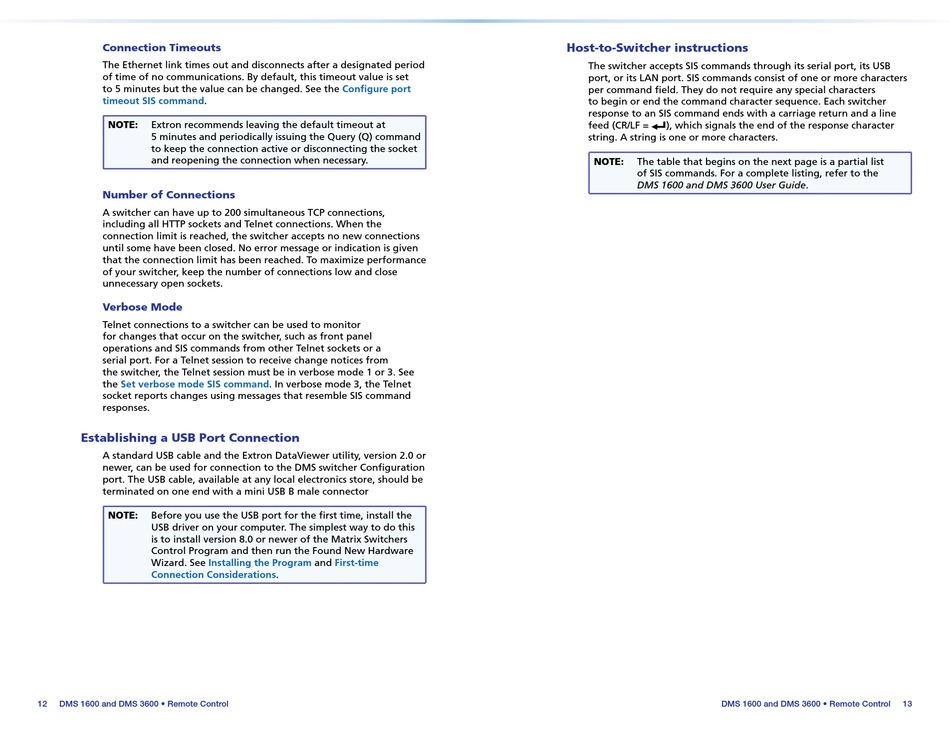

Connection Timeouts
The Ethernet link times out and disconnects after a designated period
of time of no communications. By default, this timeout value is set
to 5 minutes but the value can be changed. See the Configure port
timeout SIS command.
NOTE: Extron recommends leaving the default timeout at
5 minutes and periodically issuing the Query (Q) command
to keep the connection active or disconnecting the socket
and reopening the connection when necessary.
Number of Connections
A switcher can have up to 200 simultaneous TCP connections,
including all HTTP sockets and Telnet connections. When the
connection limit is reached, the switcher accepts no new connections
until some have been closed. No error message or indication is given
that the connection limit has been reached. To maximize performance
of your switcher, keep the number of connections low and close
unnecessary open sockets.
Verbose Mode
Telnet connections to a switcher can be used to monitor
for changes that occur on the switcher, such as front panel
operations and SIS commands from other Telnet sockets or a
serial port. For a Telnet session to receive change notices from
the switcher, the Telnet session must be in verbose mode 1 or 3. See
the Set verbose mode SIS
socket reports changes using messages that resemble SIS command
responses.

Establishing a USB Port Connection

A standard USB cable and the Extron DataViewer utility, version 2.0 or
newer, can be used for connection to the DMS switcher Configuration
port. The USB cable, available at any local electronics store, should be
terminated on one end with a mini USB B male connector
NOTE: Before you use the USB port for the first time, install the
USB driver on your computer. The simplest way to do this
is to install version 8.0 or newer of the Matrix Switchers
Control Program and then run the Found New Hardware
Wizard. See Installing the Program and First-time
Connection Considerations.
12 DMS 1600 and DMS 3600 • Remote Control
command. In verbose mode 3, the Telnet

Host-to-Switcher instructions

The switcher accepts SIS commands through its serial port, its USB
port, or its LAN port. SIS commands consist of one or more characters
per command field. They do not require any special characters
to begin or end the command character sequence. Each switcher
response to an SIS command ends with a carriage return and a line
]
feed (CR/LF = ), which signals the end of the response character
string. A string is one or more characters.
NOTE: The table that begins on the next page is a partial list
of SIS commands. For a complete listing, refer to the
DMS 1600 and DMS 3600 User Guide.
DMS 1600 and DMS 3600 • Remote Control 13
