About the DMS 1600 and DMS 3600

The DMS 1600 and DMS 3600 (figure 1) are configurable matrix
switchers that distribute DVI signals. I/O boards route signals that
are compatible with all Extron DVI video product lines. The matrix
switcher routes any input signal to any combination of outputs.
The matrix switcher can route multiple input/output configurations
simultaneously.
DVI-D INPUTS
A B C
FAN ASSEMBLY
DVI Equipped
DVI-D INPUTS
A B C
PCs
DVI-D INPUTS
A B C
DVI-D INPUTS
A B C
Compact HDTV
Camera Systems
FAN ASSEMBLY
HD Camera
FOXBOX 4G Rx DVI
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING PRIMARY POWER SUPPLY
REDUNDANT
100-240V
POWER 50/60Hz
1.2A MAX.
12V MODE POWER DVI-D INPUT RS-232
12V MODE AUDIO
1.0A MAX DVI-D OUTPUT AUDIO OVER FIBER ALARM RS-232
ON 1.0A MAX OVER FIBER ALARM
1 2
FOXBOX 4G Rx DVI Tx Rx 1 2 PRIMARY
Tx Rx 1 2
FOXBOX 4G Tx DVI 100-240V
50/60Hz
1.2A MAX.
ANAHEIM, CA
Extron
DMS 3600
FOXBOX 4G Tx DVI
Modular DVI Matrix Switcher
POWER
12V MODE DVI-D OUTPUT RS-232
AUDIO
1.0A MAX OVER FIBER ALARM
ON POWER
12V
1.0A MAX DVI-D INPUT AUDIO RS-232
OVER FIBER ALARM
1 2
FOXBOX 4G Rx DVI Tx Rx 1 2
FOXBOX 4G Tx DVI Tx Rx 1 2
PC USP 507

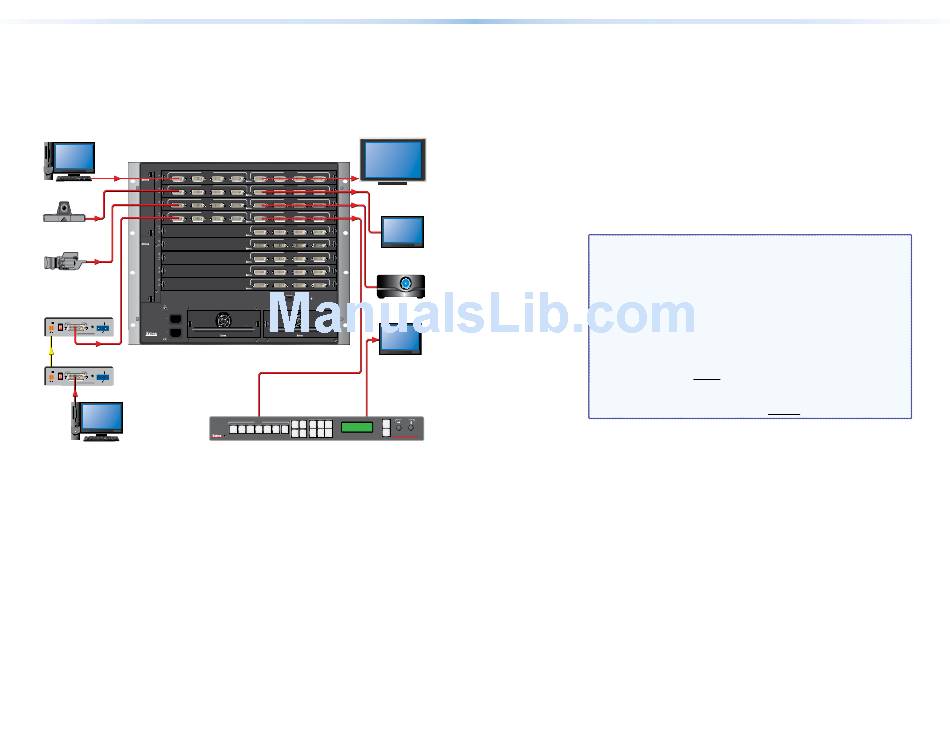

Figure 1. Typical DMS 1600 Application
The matrix switcher can be remotely controlled via its Ethernet LAN
port, a serial port, or a USB port using either the Windows-based
Extron Matrix Switchers Control Program or the SIS.
The switcher has two internal, hot-swappable 100 VAC to 240 VAC,
50-60 Hz, 175-watt power supplies that provide worldwide power
compatibility and reliability.
2 DMS 1600 and DMS 3600 • Introduction
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
HDTV Monitors
D A B C D
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
Digital Monitors
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
LAN
REMOTE
DVI Projectors
RS232/RS422 ACT LINK RESET
REDUNDANT POWER SUPPLY
Analog Monitor
ADJUST
INPUTS
AUTO BRIGHT MENU
MUTE SIZE /CONT DETAIL
1 2 3 4 5 6 7
ZOOM
PIP POSITION COLOR NEXT
CONFIG FREEZE PRESET /TINT /PAN
UNVERSAL SIGNAL PROCESSOR

Configurability

The DMS 1600 and DMS 3600 are assembled from individual input/
output (I/O) boards. The switcher can include up to four (DMS 1600)
or nine (DMS 3600) I/O boards. There are three types of I/O boards
available:
•
•
•
By adding or removing I/O boards within certain rules that are
detailed in the NOTE below, you can expand and contract the
DMS 1600 and DMS 3600 from a 4-input by 4-output matrix to up to
either:
•
•
UPS 507
4x4 DVI input and output board
4 DVI input board
4 DVI output board
DMS Matrix 1600 — A 16-input by 16-output matrix
DMS Matrix 3600 — A 36-input by 36-output matrix
NOTE:
There are certain rules for configuring the DMS matrix
switcher for proper operation, as detailed below:
• The top slot (slot 1) MUST contain a 4x4 DVI input and
output board.
• The next slot (slot 2) can contain any of the three
board types (a 4x4 DVI input and output board,
4 DVI input board, or 4 DVI output board).
• A 4x4 DVI input and output board can be followed (in
the slot directly underneath it) by any of the board
types.
• After you insert a 4 DVI input board or 4 DVI output
board, all active boards underneath it MUST be the
same type.
• If you install a blank panel, all slots under it MUST
contain blank panels (you cannot skip a slot).
DMS 1600 and DMS 3600 • Introduction 3
