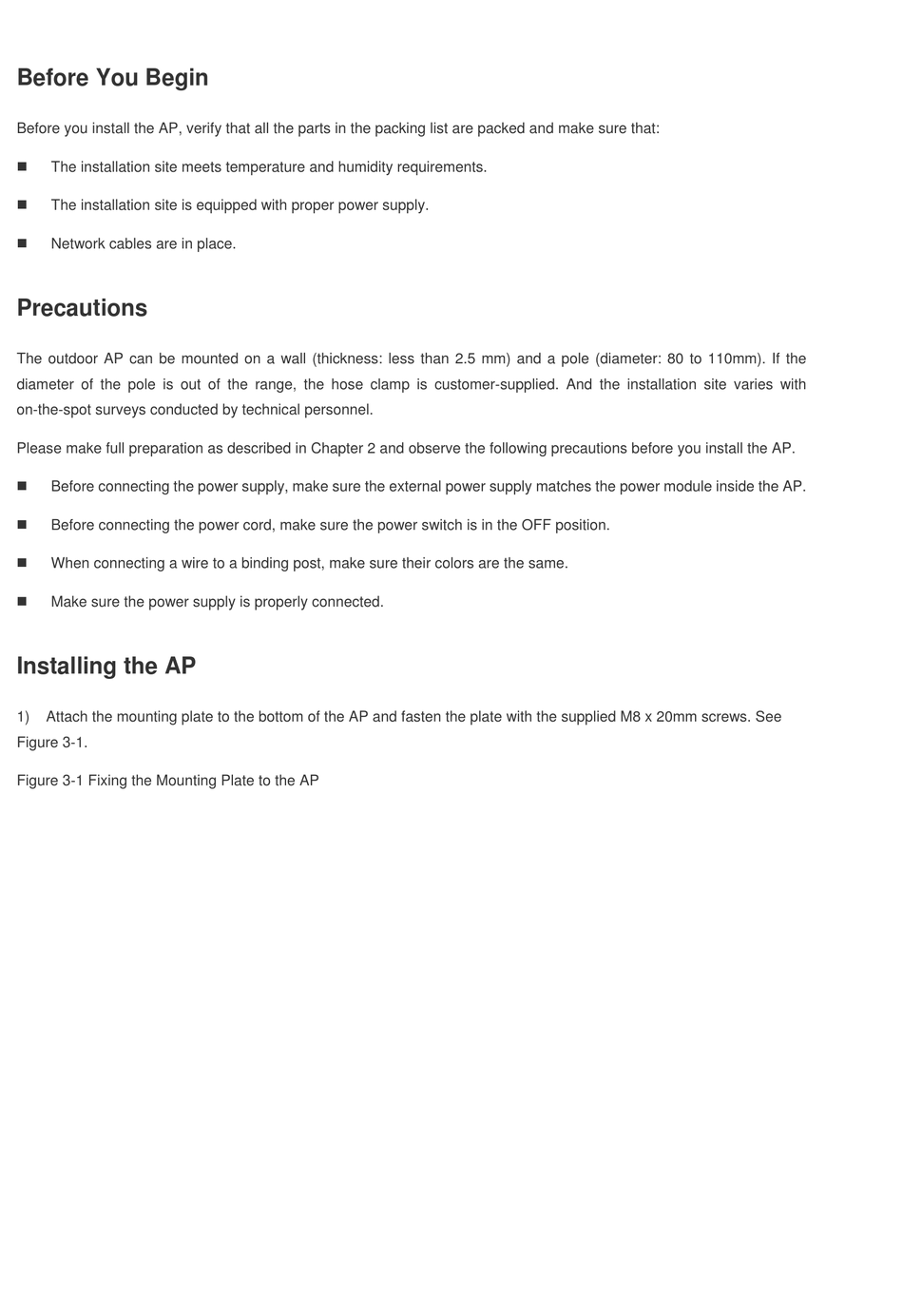

Before You Begin

Before you install the AP, verify that all the parts in the packing list are packed and make sure that:

The installation site meets temperature and humidity requirements.

The installation site is equipped with proper power supply.

Network cables are in place.
Precautions
The outdoor AP can be mounted on a wall (thickness: less than 2.5 mm) and a pole (diameter: 80 to 110mm). If the
diameter of the pole is out of the range, the hose clamp is customer-supplied. And the installation site varies with
on-the-spot surveys conducted by technical personnel.
Please make full preparation as described in Chapter 2 and observe the following precautions before you install the AP.

Before connecting the power supply, make sure the external power supply matches the power module inside the AP.

Before connecting the power cord, make sure the power switch is in the OFF position.

When connecting a wire to a binding post, make sure their colors are the same.

Make sure the power supply is properly connected.

Installing the AP

1) Attach the mounting plate to the bottom of the AP and fasten the plate with the supplied M8 x 20mm screws. See
Figure 3-1.
Figure 3-1 Fixing the Mounting Plate to the AP
