Installing Outdoor Antennas (Optional)

Outdoor antennas fall into directional and omni-directional antennas.
The integrated RG-AP630 antenna meets the demands in most cases. To obtain external antennas
occasions, go to http://www.ruijie.com.cn/.
Installing Outdoor Directional Antennas

To protect your outdoor directional antennas from lightning strikes, install a lightning rod on top of the pole.

When installing the pole on the roof, install the pole on a wall or concrete
to ground.

To ground the antenna pole, connect the pole to a ground grid with a stai

Install the outdoor directional antenna to the pole with the supplied brack

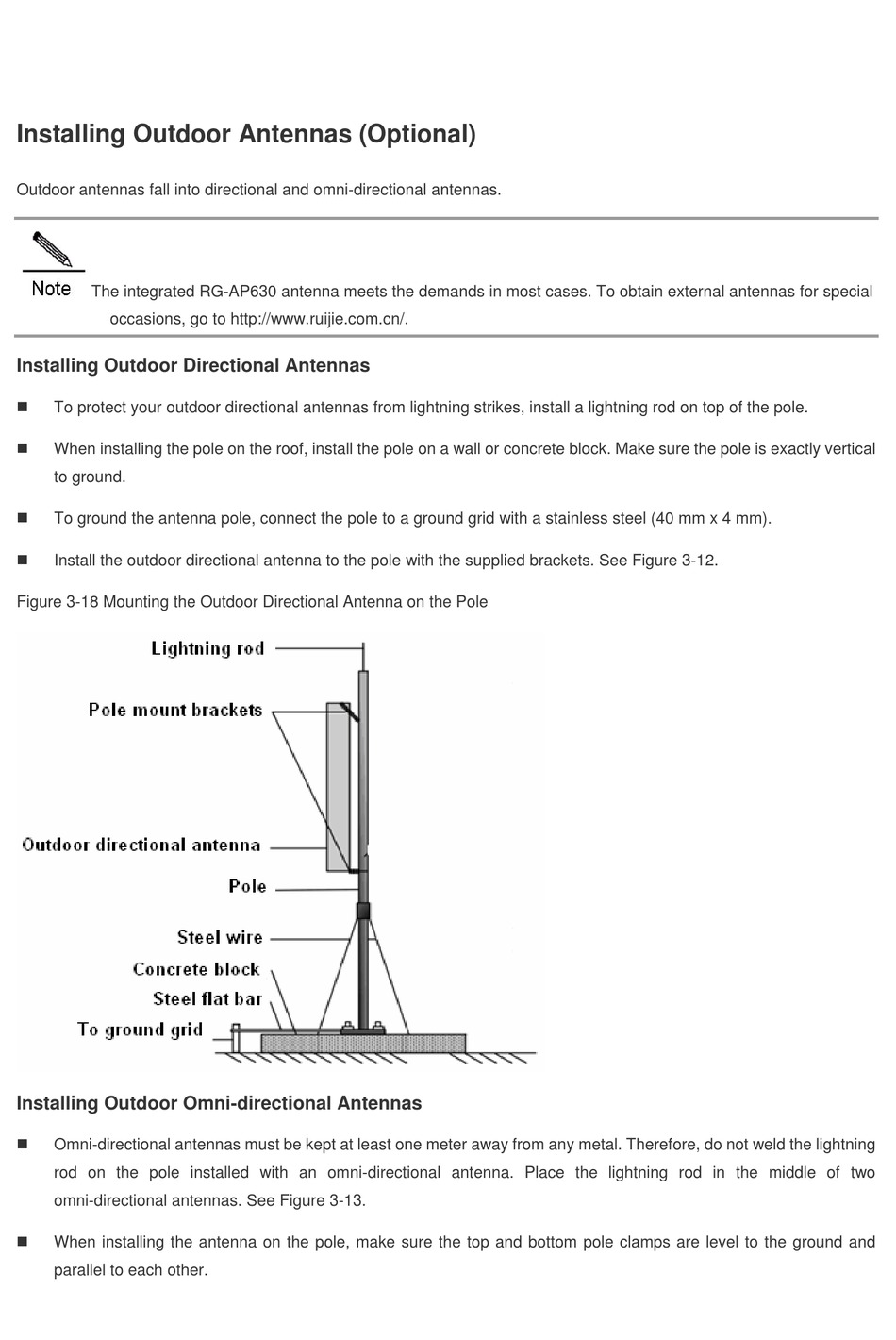

Figure 3-18 Mounting the Outdoor Directional Antenna on the Pole
Installing O utdoor Omni-directional Antennas

Omni-directional antennas must be kept at least one meter away from an
rod on the pole installed with an omni-directional an
omni-directional antennas. See Figure 3-13.

When installing the antenna on the pole, make sure the top and bottom pole clamps are level to the ground and
parallel to each other.
block. Make sure the pole is exactly vertical
nless steel (40 mm x 4 mm).
ets. See Figure 3-12.
y metal. Therefore, do not weld the lightning
tenna. Place the lightning rod in the middle of two
for special
