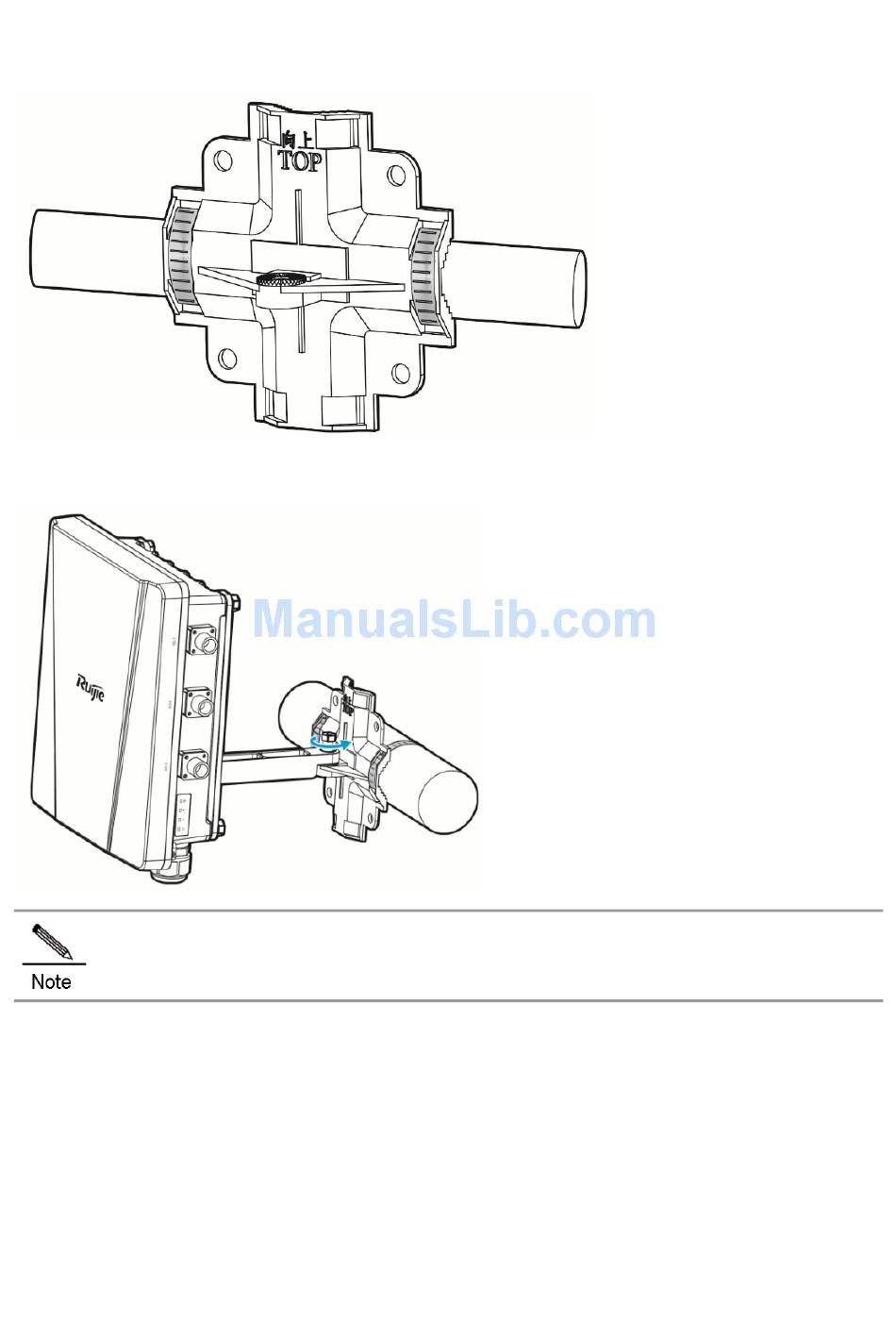

Figure 3-7 Fixing the Bracket on a Horizontal Pole
Figure 3-4 Installing the AP on the Horizontal Pole
The procedure of horizontal pole mount is
similar as that of vertical mount.
Adjusting Antenna Orientation
Both directional and omni-directional anten
nas are available for RG-AP630. The integrated antenna is in parallel with the
upper shell. To change the antenna orien
tation, you should adjust the position of the mounting plate.
Directional Antenna Orientation
Figure 3-5 Anticlockwise Horizontal Rotation (-60°)
