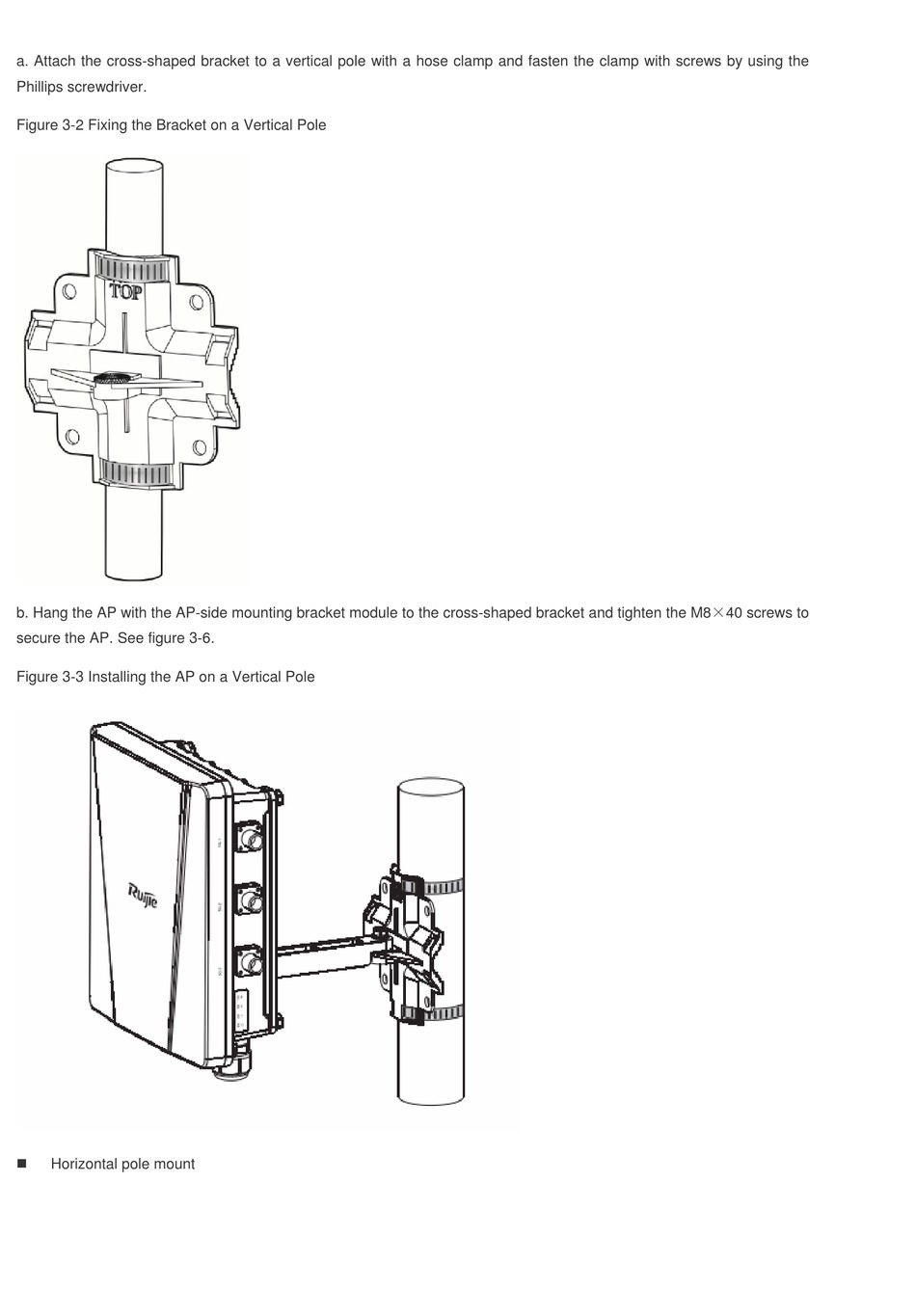

a. Attach the cross-shaped bracket to a vertical pole with a hose clamp and fasten the clamp with screws by using the
Phillips screwdriver.
Figure 3-2 Fixing the Bracket on a Vertical Pole
b. Hang the AP with the AP-side mounting bracket module to the cross-shaped bracket and tighten the M8×40 screws to
secure the AP. See figure 3-6.
Figure 3-3 Installing the AP on a Vertical Pole
Horizontal pole mount
