Card Reader - HP Compaq 6005 Pro Maintenance And Service Manual

Card Reader

The card reader is secured to the front right corner of the chassis.
1. Prepare the computer for disassembly
2. Remove the computer access panel
3. Remove the front bezel
4. Disconnect the cable from the black system board connector labeled MEDIA.
5. On the outside of the chassis, remove the one Torx T15 screw that secures the card reader to
the chassis.

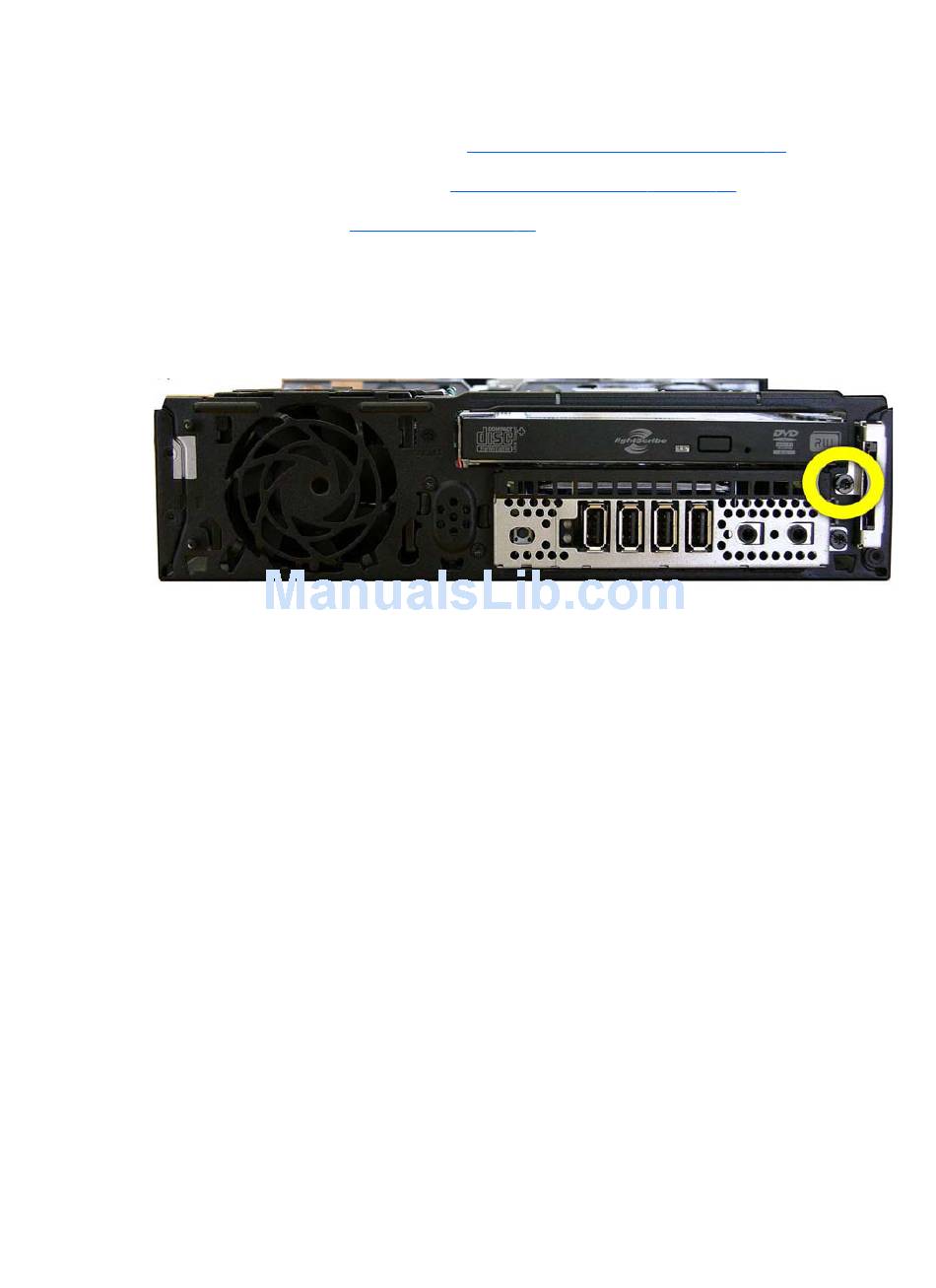

Figure 6-31
6. Pull the reader away from the front of the chassis while threading the cable through the slot in
the front of the chassis.
To install the card reader, reverse the removal procedure.
(Front Bezel on page
Removing the card reader
(Preparation for Disassembly on page
(Computer Access Panel on page
41).
31).
40).
