Overview

(2) 5.25" external optical disk drive bays

(2) 3.5" internal hard disk drive bays

320-watt standard efficiency power supply, Active Power

Factor Correction (PFC)

Optional: 89% efficient energy saving power supply

(1) 3.5" external bay for optional HP 22-in-1 Media Card

Reader, pocket media drive, or other 3.5" device

Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional

serial port, (1) optional parallel port, (2) PS/2, (1) RJ-45, (1)

VGA, (1) audio in, (1) audio out, (1) Display Port

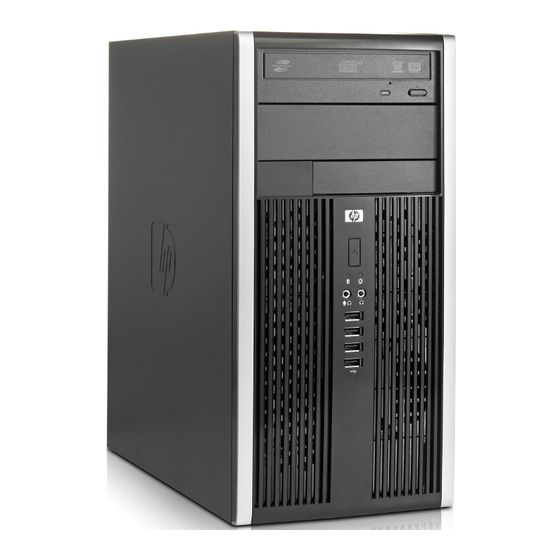

Microtower

DA - 13412

North America — Version 7 — November 4, 2009

HP Compaq 6005 Pro Business PC

Windows®. Life without Walls™.

HP recommends Windows.

Front I/O: (4) USB 2.0, headphone and microphone, Dual

Color Diagnostic LEDs

(1) full-height PCI slot, (2) full-height PCIe x1 slots, (1) full-

height PCIe x16 slot

HP Optical Scroll Mouse (PS/2 or USB), or HP USB Laser

Mouse

HP Standard Keyboard (PS/2 or USB) or HP USB Smartcard

Keyboard

HP monitor (sold separately)

Page 1

Table of Contents

Need help?

Do you have a question about the Compaq 6005 Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for HP Compaq 6005 Pro

Page 1 Color Diagnostic LEDs (1) full-height PCI slot, (2) full-height PCIe x1 slots, (1) full- height PCIe x16 slot HP Optical Scroll Mouse (PS/2 or USB), or HP USB Laser Mouse HP Standard Keyboard (PS/2 or USB) or HP USB Smartcard...
Page 2 (1) low profile PCIe x16 slot 3. Front I/O: (4) USB 2.0, headphone and microphone, Dual Color Diagnostic LEDs 4. HP Optical Scroll Mouse (PS/2 or USB), or HP USB Laser Mouse 5. HP Standard Keyboard (PS/2 or USB) or HP USB Smartcard...
Page 3 At A Glance At A Glance The HP Compaq 6005 Pro Business PC is a high performance PC with energy efficient features designed to exceed expectations and deliver results without compromise AMD 785G chipset with integrated ATI Radeon HD 4200 graphics supporting DirectX 10.1...
Page 4 Because the configurations offered vary by region, some features listed may not be available in all countries. DA - 13412 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC North America —...
Page 5 (including governmental or educational institutions) and is expected to order annually at least 25 customer systems with the same custom image. † The following features are not supported by Novell SUSE Linux Enterprise Desktop: HP 22-in-1 Media Card Reader with PCI Card...
Page 6 Roxio Creater Business (select models) Firefox-HP Virtual Browser SRS Premium Sound Software for HP Thin USB Powered Speakers (select models) * Requires HP LoJack Pro for ProtectTools for full functionality. Tracking and tracing subscription sold separately. Value-added Software Value-added Software...
Page 7 NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. NOTE 2: NOTE 2: NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized NOTE 2: HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
Page 8 (disconnect AC power cord at rear chassis or at AC outlet) prior to adding or removing SDRAM modules. DA - 13412 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC North America —...
Page 9 QuickSpecs Standard Features and Configurable Components (availability may vary by country) HP recommends dual-channel configurations for the best memory performance. HP recommends dual-channel configurations for the best memory performance. HP recommends dual-channel configurations for the best memory performance. HP recommends dual-channel configurations for the best memory performance.
Page 10 1 full-height SATA SATA 3.0Gb/s North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC Small Form Factor...
Page 11 (optional) SATA SATA USB/Diskette North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC Small Form Factor...
Page 12 Solid State Drive Solid State Drive 64-GB Solid State Drive RapidDrive NOTE: RapidDrive is an optional new productivity solution available only on the HP Compaq 6005 Pro. NOTE: NOTE: NOTE: It links the Solid State Drive (SSD) and Hard Drive together to form one virtual drive that combines the advantages of both technologies.
Page 13 DA - 13412 ports* capable* North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC Page 13...
Page 14 HP 500-GB SATA 3.0-Gb/s 7200 rpm Hard Drive HP 80-GB SATA 3.0-Gb/s 10,000 rpm Hard Drive HP 160-GB SATA 3.0-Gb/s 10,000 rpm Hard Drive HP Removable SATA Hard Drive Enclosure (Frame & Carrier) HP Removable SATA Hard Drive Enclosure (Carrier Only) Input/Output Devices...
Page 15 HP 1-GB PC3-10600 (DDR3 1333 MHz) DIMM Monitors Monitors Monitors Monitors All HP monitors are supported that accept a graphics output provided by this PC. The LP3065 monitor can be supported by installing a graphics card that supports a dual-link DVI-D output. Multimedia Multimedia...
Page 16 QuickSpecs After-Market Options (availability may vary by region) Manageability Manageability Manageability Manageability HP Client Configuration Manager, Premium Edition Brackets/Stands Brackets/Stands HP 2009 Small Form Factor Tower Stand Brackets/Stands Brackets/Stands Miscellaneous Miscellaneous Miscellaneous Miscellaneous HP Serial Port Adapter Kit Accessories Accessories...
Page 17: Technical Specifications
Variable speed fan <2.4W <2.4W North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC Small Form Factor...
Page 18 Security – HP BIOS offers a robust and flexible set of security features to help the system administrator secure their systems from removal of sensitive data, and help prevent access by unauthorized users. Ability to disable USB ports.
Page 19 Description Description Description Small Form Factor can be oriented as a tower (in addition to desktop orientation) Drive Protection System A diagnostic hard drive self test. It scans critical physical components and every sector of the hard drive for physical faults and then reports any faults to the user.
Page 20 Industry-standard specification for network alerting in operating system-absent environments North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 21 1.5 W Yes; ability to mute internal speaker through F10 Setup North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 22 Full-duplex Half-duplex (not available for the 1000BASE-T transceiver) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 23 (power removed from Low Profile PCI Express Card) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 24 104 Mbps (20 MHz EWC) 72 Mbps 117 Mbps (20 MHz EWC) 81 Mbps North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 25 Driver upgradeable for future enhancements ITU-T V.80 video ready interface North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 26 (MLCC). The SV92EX is fully compliant with the PCI Express revision 1.1 specification. WHQL approved; ASPM compliant. North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC edition (U.S.
Page 27 Portuguese, Russian, Spanish, Swedish, Thai, Turkish EMC Emissions: North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 28 ATI Radeon HD 4650 (1 GB) PCIe x16 Graphics Card display resolutions and refresh rates ATI Radeon HD 4650 (1 GB) PCIe x16 Graphics Card display resolutions and refresh rates NOTE: NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. NOTE: NOTE:...
Page 29 ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates NOTE: NOTE: NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. NOTE: Resolution Resolution...
Page 30 NVIDIA Quadro NVS 290 PCIe x1 Graphics Card display resolutions and refresh rates NOTE: NOTE: NOTE: NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. Resolution Resolution Resolution...
Page 31 7.5 in (19.0 cm) .10 lbs (.05 kg) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 32 NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Using NOTE: NOTE: the HP DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the most up-to- Resolution Resolution...
Page 33 Buffer Buffer Buffer 8 MB North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC 2.0 ms...
Page 34 Media diameter: 2.5 in (? cm) Physical size: 4 in (10.2 cm) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC 1.0 ms...
Page 35 UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438, AS/NZS CISPR 22:2002 Class B, R1113 and C1172 Class B North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC 0.3 ms...
Page 36 ANSI HFS 100, ISO 9241-4, and TUVGS Keyboard, installation guide, warranty card, safety and comfort guide North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 37 Operating voltage Operating voltage + 5VDC ± 5% North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 38 60-mA smart card) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 39 Switch Actuation Switch Actuation 0.6N (60gf) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC Programmable from...
Page 40 Maximum rotation speed Maximum rotation speed 48 rats/sec North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 41 0.27 lb (0.12 kg) 72.8 in (185 cm) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 42 1.5Gbps bits/s (10b side) 1.2Gbps bits/s (8b side) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 43 Source Source SATA DC power receptacle North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC Page 43...
Page 44 Cache Buffer Cache Buffer 2 MB (minimum) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 45 86° F (30° C) Temperature Temperature Temperature Temperature North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC Page 45...
Page 46 40°C 90% R.H. = 24 hours 50°C 90% R.H. = 24 hours North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 47 Guide V. 1.3 FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC...
Page 48 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
Page 49 Sound Pressure (LWAd, bels) (LpAm, decibels) North America — Version 7 — November 4, 2009 HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC HP Compaq 6005 Pro Business PC 1835 g...
Page 50 By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
Page 51 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
Page 52 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
