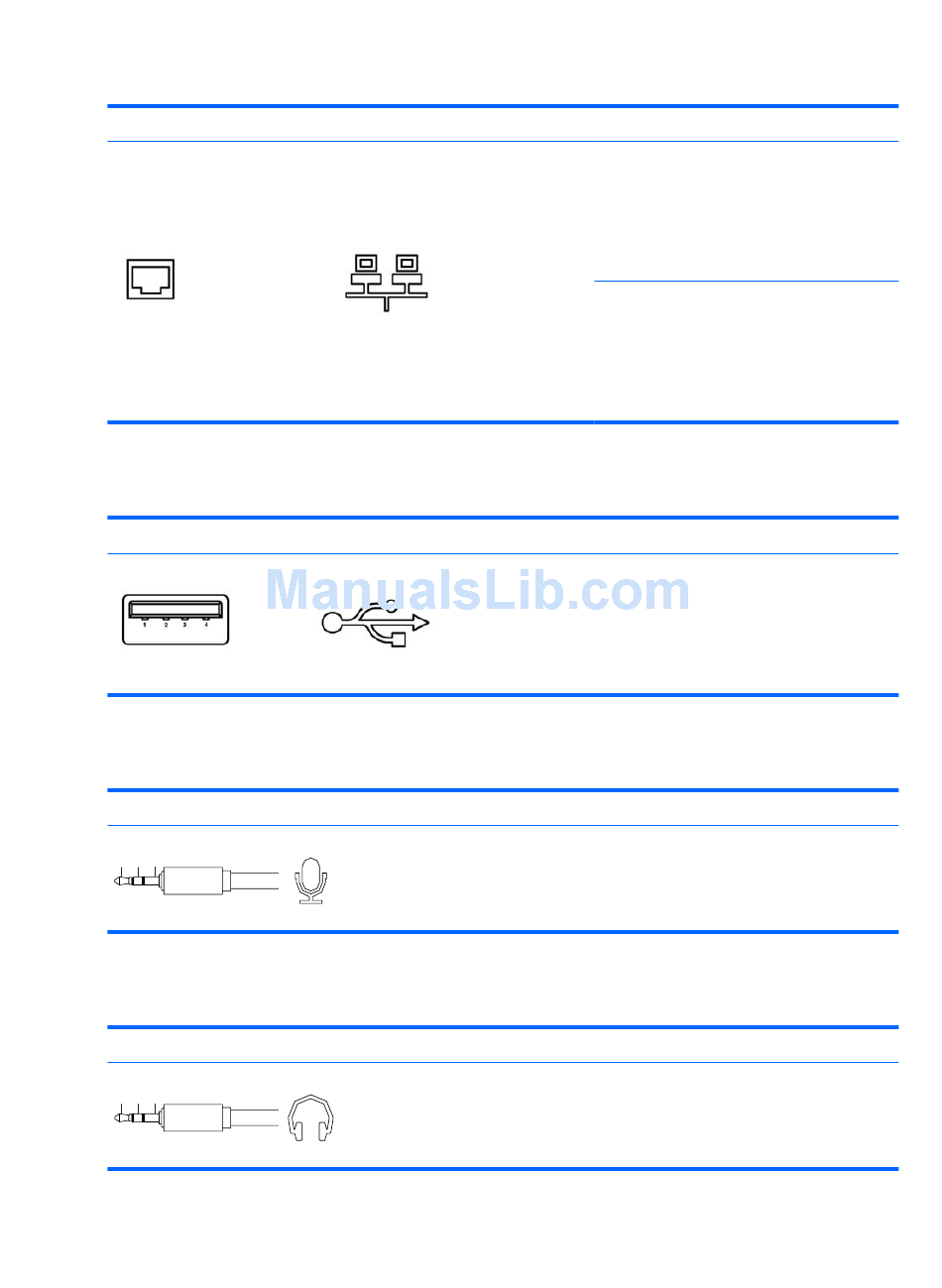

Ethernet RJ-45

Connector and Icon

USB

Connector and Icon

Microphone

Connector and Icon (1/8" miniphone)
1 2 3

Headphone

Connector and Icon (1/8" miniphone)
1 2 3
72 Appendix A Connector Pin Assignments
Pin Signal
1 (+) Transmit Data
2 (-) Transmit Data
3 (+) Receive Data
4 Unused
5 Unused
6 (-) Receive Data
7 Unused
8 Unused
Pin Signal
1 +5 VDC
2 - Data
3 + Data
4 Ground
Pin Signal
1 (Tip) Audio_left
2 (Ring) Power_Right
3 (Shield) Audio_right
Pin Signal
1 (Tip) Audio_left
2 (Ring) Power_Right
3 (Shield) Ground
