Product Features
Front Panel Components
Drive configuration may vary by model.

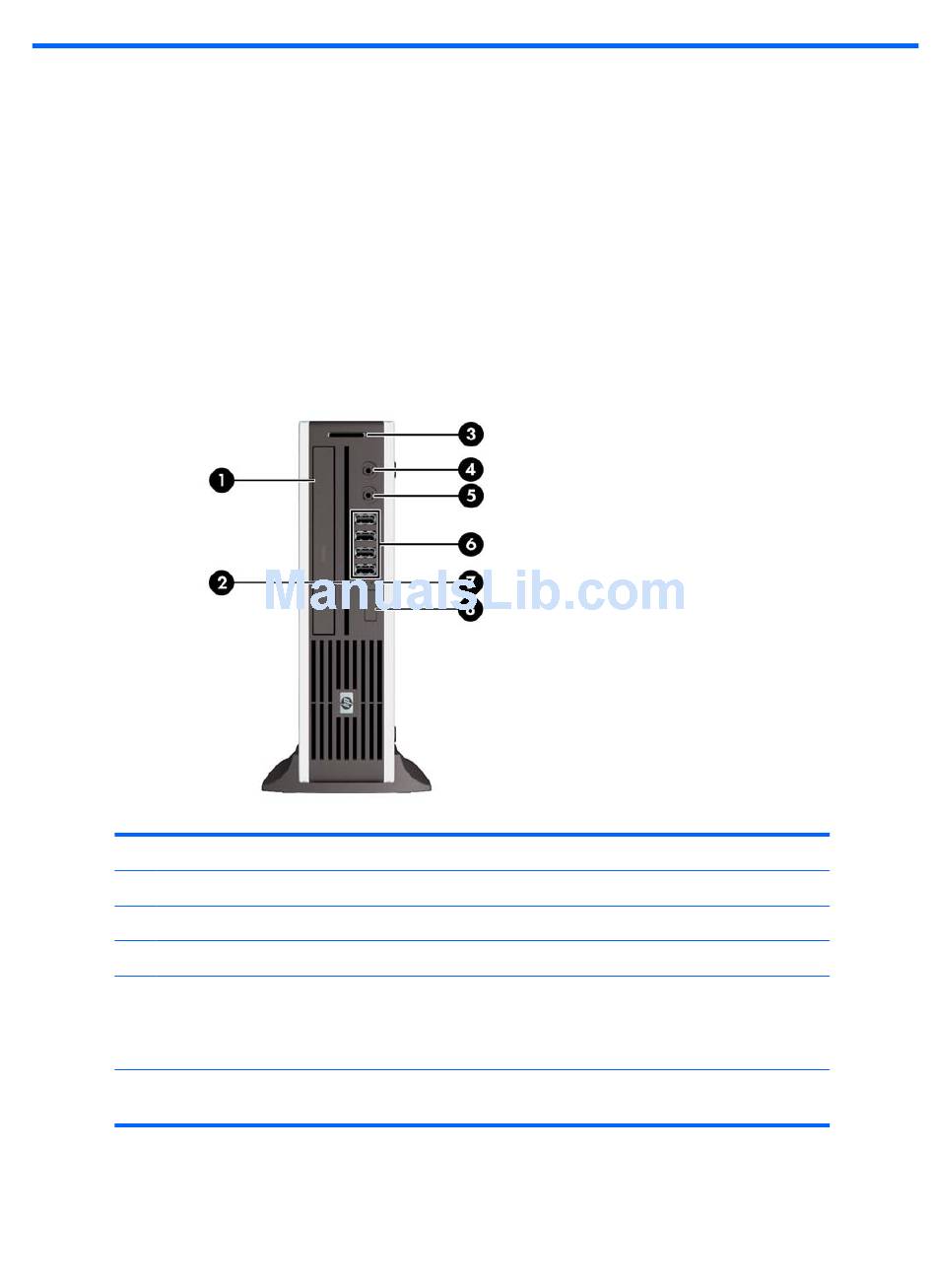

Figure 1-1
Table 1-1
Front Panel Components
1
Optical Drive
2
System Power LED
3
SD Media Card Reader (optional)
4
Headphone Connector
NOTE:
When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up
asking if you want to use the connector for a microphone line Line-In device or a headphone. You can
reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows
taskbar.
NOTE:
The Power On Light is normally green when the power is on. If it is flashing red, there is a problem
with the computer and it is displaying a diagnostic code.
Front Panel Components
5
Microphone/Headphone Connector
6
USB (Universal Serial Bus) Ports
7
Hard Drive Activity Light
8
Dual-State Power Button
Front Panel Components
1
