Placing a SoundStation VTX 1000 Phone to Send Stereo from Your Site

The VSX set-top and component systems allow you to send stereo using a
SoundStation VTX 1000 conference phone, with or without extension
microphones.
The SoundStation VTX 1000 contains three microphone elements, just as
Polycom microphones do. When StereoSurround is enabled, one microphone
element picks up audio from the left side of the room, one picks up the right
side of the room, and the third is disabled, as shown in the following diagram.
Stereo using a
SoundStation VTX 1000
not used
right
left

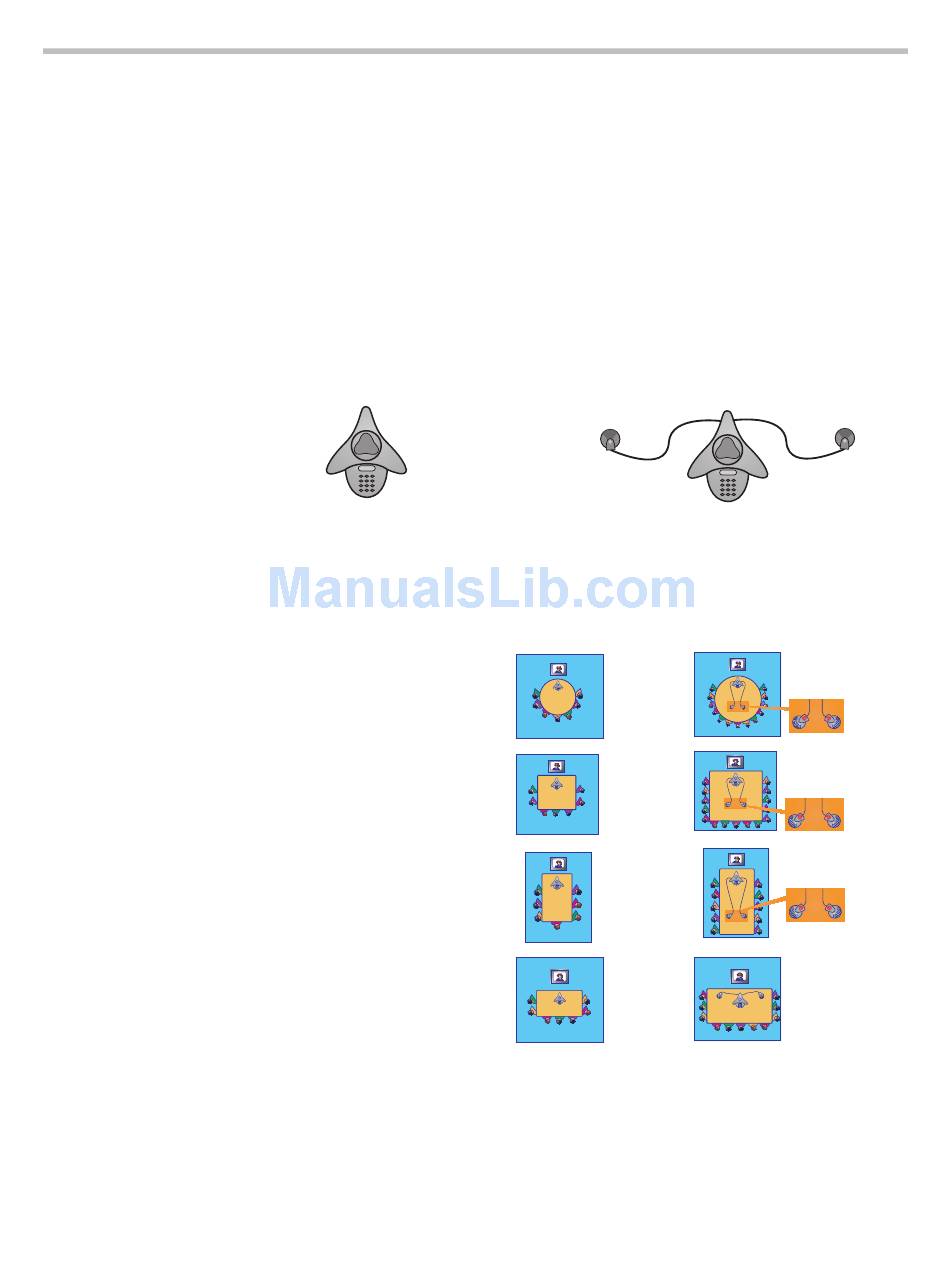

The following illustrations show how to place the SoundStation VTX 1000
conference phone for different room layouts.
Round Table
Square Table
Long Table
Wide Table
Position the SoundStation VTX 1000 so that:
• The keypad should be pointing away from the monitor.
• The SoundStation VTX 1000 should be parallel with, or in front of, the
person nearest the monitor.
Stereo using a
SoundStation VTX 1000 with
microphones
left
left
SoundStation
VTX 1000
Setting Up Your System Hardware
not used
right
SoundStation
VTX 1000 with
microphones
right
2 - 25
