Summary of Contents for Seat Mii 2013

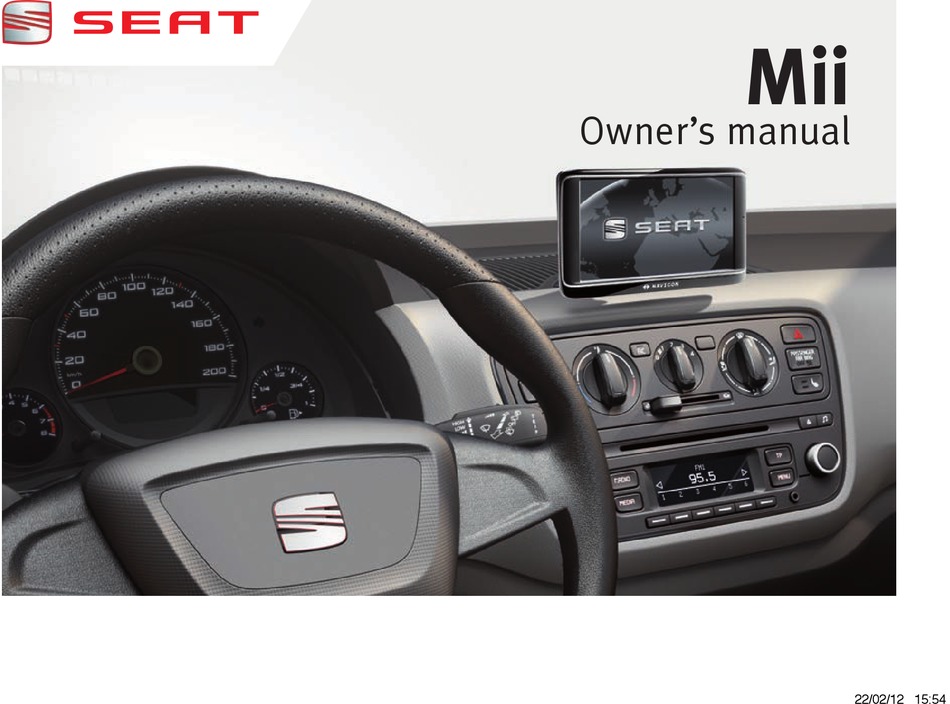

  • Page 1 Owner’s manual...
  • Page 3 Foreword This Instruction Manual and its corresponding supplements should be read carefully to familiarise yourself with your vehicle. Besides the regular care and maintenance of the vehicle, its correct handling will help preserve its value. For safety reasons, note the information concerning accessories, modifications and parts changes. If selling the vehicle, give all of the onboard documentation to the new owner, as it should be kept with the vehicle.

  • Page 5: Table Of Contents

    Seat functions ......Vehicle diagram Seat belts ....... Air control .
  • Page 6 Table of Contents Wheel trims ......Changing a wheel ......Anti-puncture kit* .

  • Page 7: Manual Structure

    Manual structure Manual structure What you should know before reading the on-board manual CAUTION This manual contains a description of the equipment supplied with the ve- Texts with this symbol draw your attention to potential sources of damage hicle at the time of press. Some of the equipment hereunder described will to your vehicle.

  • Page 8: Side View

    Exterior views Vehicle diagram Exterior views Side view Fig. 1 Vehicle side view. Legend for the fig. Exterior door handle ........Exterior mirrors .

  • Page 9: Front View

    Exterior views Front view Fig. 2 Detail of the front of the vehicle. Legend for the fig. Fog lights 84, 255 ..........Front towing eye housing behind a cover .

  • Page 10: Rear View

    Exterior views Rear view Fig. 3 Detail of the rear of the vehicle. Legend for the fig. Handle with button for opening the rear lid ....Registration plate light .

  • Page 11: Vehicle Interior

    Vehicle interior Vehicle interior Driver door overview Fig. 4 Overview of the controls of the driver door. Legend for the fig. Turn switch for adjusting the exterior mirrors ....–...

  • Page 12: Overview Of The Driver Side

    Vehicle interior Bottle holders Other controls ..........Storage compartment .
  • Page 13 – Rear window wiper  – Automatic rear window wash/wipe  – Lever with buttons for controlling the SEAT information system - , / ........

  • Page 14: Overview Of Centre Console

    ..........Right seat heating controls  or rear window heating but- ton ...
  • Page 15 Vehicle interior Bottom part of the centre console Fig. 7 Detail of the bot- tom part of the centre console. Legend for the fig. Storage compartment with drink holder in the centre console Ashtray* ..........12 volt socket or cigarette lighter* 117, 115 .

  • Page 16: Detail Of The Passenger Seat

    Vehicle interior Detail of the passenger seat Symbols on the roof Symbol Meaning    Interior lights ⇒  p age 84.  Fig. 8 Overview of the passenger side. Legend for the fig. Position of passenger front airbag on the dash panel .

  • Page 17: Instrument Panel

    ⇒  p age 128 off by the system. ALTERNATIVELY:  On the instrument panel: Driver or passen-  flashes: Traction Control regulator operat- ger has not fastened seat belt. ⇒  p age 57 ing. Instrument panel display: A passenger in  ...
  • Page 18 ⇒  p age 165 ● In any vehicle, the engine compartment is a hazardous area and could Fuel tank almost empty. cause severe injury ⇒  p age 171. Fault in airbag system and seat belt tension-  ⇒  p age 67 ers.

  • Page 19: Instruments

    Instrument panel Instruments Introduction Additional information and warnings: ● Indicator lamps ⇒  p age 15 ● Instructions for inspection intervals ⇒  B ooklet Maintenance Programme WARNING Any distraction may lead to an accident, with the risk of injury. ● Do not handle the instrument panel controls when driving. ...
  • Page 20 Instrument panel Detail of instrument panel Fig. 9 Instrument panel, on dash panel: variant 1. Fig. 10 Instrument panel, on dash panel: variant 2. ⇒  f ig. 9 ⇒  f ig. Details of the instruments Reset rotary control for the odometer ( trip –...
  • Page 21 Note Rev counter (with the engine running, in thousands of revo- On the screen of the SEAT Portable System (supplied by SEAT) ⇒  p age 213 lutions per minute). the other instruments can be seen, such as an outside temperature indica- The beginning of the red zone of the rev counter indicates tor.
  • Page 22 Check the function that is faulty and repair it. If The seat belt status display on the instrument panel display informs the driver, when the ignition is switched on, whether any passengers in the rear necessary, request assistance from specialised seats have fastened their seat belts ⇒ ...
  • Page 23 The inspection display appears on the instrument panel display ⇒  f ig. 10 SEAT makes a difference between services with engine oil change (Mainte- nance Service) and services without engine oil change (Inspection Service). The service interval display only gives information for service dates which involve an engine oil change.

  • Page 24: Seat Information System

    The multifunction display (MFI) has two automatic memories: 1 - Partial On the screen of the SEAT Portable System (supplied by SEAT) ⇒  p age 213 memory and 2 - Total memory. The selected memory will be shown in the other functions of the vehicle can be seen.
  • Page 25 Instrument panel With the ignition switched on, and memory 1 or 2 displayed, briefly press Menu Function to change from one memory to another. Distance travelled, after ignition is switched on, in Distance covered The memory stores the values for the journey and the con- sumption from the moment the ignition is switched on un- Average speed After starting the ignition, the average speed will...
  • Page 26 Instrument panel Note On the screen of the SEAT Portable System (supplied by SEAT) ⇒  p age 213 other functions of the multifunction display can be seen. ...

  • Page 27: Before Starting The Engine

    Use child retention systems appropriate for the child's body weight ● Notes for the user ⇒  p age 224 and height ⇒  p age 76. ¥ Correctly adjust front seat, head rests and rear-view mirrors to suit WARNING your height ⇒  p age 48, ⇒  p age 95. ¥...
  • Page 28 Hard use may involve frequent driving in traffic ¥ jams or driving in dusty areas. For further information, please refer to a SEAT Never drive with impaired faculties (for example, due to medication, dealership or a specialised workshop.
  • Page 29 CAUTION CAUTION SEAT does not accept liability for any damage to the vehicle due to the use ● Driving through flooded areas may severely damage vehicle compo- of a lower quality fuel, an inadequate service or the non-availability of genu- nents such as the engine, transmission, running gear or electrical system.

  • Page 30: Unlocking And Locking

    Additional information and warnings: Children and unauthorised individuals could lock the doors or the rear ● Adjustments to the SEAT information system ⇒  p age 22 lid, start the engine or turn the ignition on activating electrical systems, for example: the electric windows.
  • Page 31 This is also true for keys cut for the vehicle. The vehicle keys or new spare keys can be obtained from a SEAT dealership, a Specialised workshop or approved key service qualified to create this kind of key.
  • Page 32 Unlocking and locking The vehicle keys or new spare keys can be obtained from a SEAT dealership, Note a Specialised workshop or approved key service qualified to create this kind ⇒  f ig. 12 If the buttons of the vehicle key are pressed or one of the central of key.
  • Page 33 In moving the battery. this case, synchronise the vehicle key once more as follows: SEAT recommend having the batteries changed in a Specialised workshop. ● Unfold the key shaft ⇒  p age 29. ● Press the button on the vehicle key.
  • Page 34 Unlocking and locking ● Open the vehicle within one minute using the key shift. ● Turn on the ignition using the vehicle key. The key has been synchron- ised. ● If necessary, fit the cap. ...

  • Page 35: Central Locking* And Locking System

    Unlocking and locking Central locking* and locking system WARNING (Continued) ● Depending on the time of the year, temperatures inside a locked and closed vehicle can be extremely high or extremely low resulting in seri- Introduction ous injuries and illness or even death, particularly for young children. ●...
  • Page 36 Unlocking and locking Function Necessary operations Lock the vehicle, by – Turn off the ignition and turn it on again. pushing the central – Push the central locking button  locking button: Use the key to lock the – Turn off the ignition and turn it on again. vehicle: OR: Remove the key from the ignition.
  • Page 37 Unlocking and locking Mechanical locking Function Handling the buttons Handling the vehicle key ⇒  f ig. 17 on the vehicle in the lock cylinder or ⇒  f ig. 18 Handling the vehicle mechanical key ⇒  f ig. 17 Function with the vehicle mechanical key the lock cylinder.
  • Page 38 Unlocking and locking Locking and unlocking the vehicle from the inside Central locking ⇒  f ig. Push the button Unlocking the vehicle.  Locking the vehicle.  The central locking button is still operative when the ignition is switched off. If the vehicle has been locked with the vehicle key, the central locking but- ton does not operate.
  • Page 39 Unlocking and locking ● The doors can be opened and unlocked individually from the inside by Control lamp on the driver door pulling the inside door handle. When the vehicle is locked: Meaning ● The driver door cannot be locked using the central locking system when The red LED flashes for approximately 2 The "Safe"...

  • Page 40: Doors

    Note vate the childproof lock. On the display of the SEAT Portable System (supplied by SEAT), ⇒  p age 213 – With the door open, rotate the groove in the door using the igni- can be seen if at least one vehicle door has been left open or is not correctly ⇒ ...
  • Page 41 Unlocking and locking Deactivating the childproof lock – Unlock the vehicle and open the door whose childproof lock you want to deactivate. – With the door open, rotate the groove in the door using the igni- tion key, anti-clockwise for the right hand side doors and clock- ⇒ ...

  • Page 42: Rear Lid

    Note ● Do not close the rear lid by pushing it down with your hand on the On the display of the Portable Navigation System (supplied by SEAT) rear window. The rear window could break and cause injury. ⇒  p age 213 can be seen if the rear lid has been left open or is not correctly ●...
  • Page 43 Unlocking and locking Opening the rear lid WARNING Unsuitable or careless unlocking and opening of the rear lid could cause serious injuries. ● If there is a loaded luggage carrier on the rear lid, it could be un- locked or open but not recognised as such. An unlocked or open rear lid could open unexpectedly while driving.
  • Page 44 Unlocking and locking Closing the rear lid Note ⇒  f ig. 23 ● Grab the handgrip inside the rear lid (arrow). Before closing the rear lid, make sure that the key has not been left inside ● Push the rear lid downwards until it locks into place in the lock. the boot.

  • Page 45: Windows

    Opening and closing the electric windows Introduction Additional information and warnings: ● SEAT information system ⇒  p age 22 ● Central locking and locking system ⇒  p age 33 WARNING Careless use of the electric windows can cause serious injury.

  • Page 46: Panoramic Sunroof

    As a result, other damage can occur in the vehicle. ● In the case of heavy rain, if the sliding/tilting sunroof is open, the interi- or equipment of the vehicle may get wet, destroying the seat heating and damaging the electrical system of the vehicle. ...
  • Page 47 Unlocking and locking Note ● Leaves and other loose objects that land in the guides of the sliding/tilt- ing sunroof should be removed periodically by hand or using a vacuum cleaner. ● If the sliding/tilting sunroof does not work correctly, the anti-trap func- tion will not work either.
  • Page 48 Unlocking and locking Anti-trap function of the sliding/tilting electric panoramic ⇒  f ig. 26 Function Action sunroof ⇒  f ig. 27 To raise the tilt- The anti-trap function can reduce the risk of injury when closing the sliding/ tilting electric panoramic sunroof ⇒  ing sunroof com- briefly press the rear part of the knob.
  • Page 49 Unlocking and locking WARNING (Continued) ● No person should ever remain in the way of the sliding/tilting sun- roof, especially when closing without the anti-trap function. ● The anti-trap function does not prevent fingers or other parts of the body from becoming trapped against the roof frame and injuries occur- ring.

  • Page 50: Adjusting The Seat Position

    Otherwise the airbag and seat The vehicle has a total of 4 seats: 2 front seats and 2 rear seats. Each seat is belt offer insufficient protection and the risk of injury in the event of an equipped with a seat belt.
  • Page 51 If the seat belts are worn incorrectly or not at all, the risk of severe or fatal ● All vehicle occupants must assume the proper sitting position and be injuries increases.
  • Page 52 ● Adjust the backrest to an upright position so that your back rests com- pletely against it. ● Adjust the seat so that there is a distance of at least 25 cm between the ⇒  f ig. 28 steering wheel and your chest...
  • Page 53 ● Always keep your feet in the footwell while the vehicle is in motion. desired position. The backrest must ● Adjust and fasten your seat belt correctly ⇒  p age 57.  3 doors: Easy Entry + ad- be engaged.
  • Page 54 The front seat head restraints are integrated in the backrests and adjusting level. Keep the back of your neck as close as possible to the head re- them is not possible.
  • Page 55 On removing and fitting the head restraint, make sure the head restraint does not hit the interior roof of the vehicle or the backrest of the front seat. This could damage the interior roof and other parts of the vehicle.
  • Page 56 ⇒  Adjust the correct distance between the driver and the steering wheel ⇒  f ig. 28 using the controls on the driver seat ⇒  p age 51. WARNING Incorrect use of the steering wheel adjustment function and an incorrect adjustment of the steering wheel can result in severe or fatal injury.

  • Page 57: Seat Functions

    The front seat cushions can be heated electrically when the ignition is throughout. This also applies to the other occupants. switched on. ● Keep hands, fingers, feet and other limbs away from the seat operat- Switch off seat heating if there is nobody in the seat. ing and adjustment radius.
  • Page 58 CAUTION ● To avoid damaging the heating elements of the seat heating, please do not kneel on the seat or apply sharp pressure at a single point to the seat cushion and backrest. ● Liquids, sharp objects and insulating materials on the seat could dam- age the seat heating.

  • Page 59: Seat Belts

    In the event of an accident. Correctly fas- ● If the fabric or other parts of the seat belt are damaged, the seat belts ten seat belts when the vehicle is in motion to protect the driver and all could break in the event of an accident or sudden braking.
  • Page 60 They will switch off after a few seconds. An audible warning will be heard if the seat belts are not fastened as the vehicle drives off and reaches a speed of more then 25 km/h (15 mph) or if the seat belts are unfastened while the vehicle is in motion.
  • Page 61 Ensuring you are correctly and safely seated The seat belt status is displayed for around 30 seconds when a seat belt in the rear seats is fastened or unfastened. You can switch off this display by pressing the button. 0.0 / SET The seat belt status flashes for a maximum of 30 seconds when a seat belt in the rear seats is unfastened while the vehicle is in motion.
  • Page 62 – regardless of whether an airbag is fitted for the seat. The airbag is only deployed once. To achieve the best possible protection, the seat belt must always be worn properly so that you will be protected in accidents in which no airbag is deployed. Vehicle occupants not wearing belts could be thrown from the vehicle and sustain even more severe or fa- tal injuries.
  • Page 63 This is passengers who do not use seat belts endanger not only themselves but al- why it is so important to fasten seat belts before every trip, even when just ⇒  f ig.
  • Page 64 Fasten your seat belt properly before each trip and keep it fastened. Twisted seat belt If it is difficult to remove the seat belt from the guide, the seat belt may have become twisted inside the side trim after being wound too quickly on unfastening: ●...
  • Page 65 ● Unbuckling your seat belt while the vehicle is in motion can cause se- vere or fatal injuries in the event of an accident or sudden braking. The seat belt must not be unfastened until the vehicle has come to a stand- ...
  • Page 66 ● The seat belt itself or a loose seat belt can cause severe injuries if the Seat belts offer their maximum protection in the event of an accident and belt moves from hard areas of the body to soft areas (e.g. the stomach).
  • Page 67 Ensuring you are correctly and safely seated Belt tension limiter Note The belt tension limiter reduces the force of the seat belt on the body in the If your physical constitution prevents you from maintaining the correct posi- event of an accident.
  • Page 68 Ensuring you are correctly and safely seated For the sake of the environment Airbag modules and belt tensioner may contain perchlorate. Observe the le- gal requirements for their disposal. ...

  • Page 69: Airbag System

    ● Never carry objects in your hand or on your lap while the vehicle is in correctly adjusted and used.
  • Page 70 Ensuring you are correctly and safely seated WARNING If the airbags are triggered, a fine dust is produced. This is normal and it is not an indication of fire in the vehicle. ● This fine dust may irritate the skin and eyes and cause breathing dif- ficulties, particularly in people suffering from or who have suffered from asthma or other illnesses of the respiratory tract.
  • Page 71 Ensuring you are correctly and safely seated Types of front passenger airbag systems Control lamps There are 2 different SEAT front passenger airbag systems: Characteristics of the passenger Characteristics of the front passen- front airbag without disabling. ger airbag that can be disabled manually ⇒ ...
  • Page 72 If the deceleration magnitude value is below the refer- ence value programmed in the control unit, the airbags will not deploy de- ● Never mount a child seat in the front passenger seat or remove the spite serious damage being caused to the vehicle by the accident. Damage...
  • Page 73 ● Head restraints optimised for rear-end collision. ● Adjustable steering column. ● If necessary, anchor points for child seats for the rear seats. ● Where applicable, mountings for the child seat upper retaining strap. Vehicle diagram Prior to a journey...
  • Page 74 ⇒  p age 48. This way, the front airbags can completely deploy when In conjunction with the seat belts, the front airbag system gives the front occupants additional protection for the head and chest in the event of a se- triggered, providing their maximum protection.
  • Page 75 48. Air- ● Adjust the driver seat so that there is a distance of at least 25 cm (10 bags are identified by the word “AIRBAG”. inches) between the centre of your chest and the hub of the steering When the front airbags are triggered they fill the zones marked in wheel.
  • Page 76 ● The PASSENGER AIR BAG   control lamp on the dash panel will re- ● As soon as the child seat is no longer needed on the front passenger main lit while the ignition is switched on ⇒  p age 69.
  • Page 77 ● Any damage to the original seat upholstery or around the seams of the side airbag units must be repaired immediately by a Specialised workshop.

  • Page 78: Child Seats (Accessories)

    Ensuring you are correctly and safely seated Child seats (accessories) WARNING (Continued) ● Ensure the backrest of a seat is upright when a child seat is being used on it. Introduction ● Do not allow the child's head or other part of his or her body to enter the deployment area of the side airbags.
  • Page 79 Child must always use a child restraint system when travelling in the Not all children fit in the seat of their weight group. Nor do all seats adapt to vehicle. The child restraint system must be suitable for the height, the vehicle.
  • Page 80 In general, the rear seat is always the safest place for children, who are belted correctly, in the event of an accident. ● A suitable child seat that is correctly installed and used on one of the rear seats offer the most protection possible for babies and children up Fig.
  • Page 81 Only used child seats that are approved for each vehicle. If a child seat is mounted on the front passenger seat, the risk of the child sustaining severe or fatal injuries in the event of an accident increa- The frontal airbag on the front passenger side is highly dangerous for a ses.
  • Page 82 Front passenger Rear seats Group 0 If a child seat is mounted on the rear seat, adapt the position of the front Up to 10 kg passenger seat so that the child has enough space. Therefore, adapt the front passenger seat to the size of the child seat and the height of the child.
  • Page 83 ● Make sure the seat belt is not twisted. WARNING ● Insert the latch plate into the buckle for the appropriate seat and push it down until it is securely locked with an audible click. Unbuckling the seat belt while the vehicle is in motion can cause severe or fatal injuries in the event of an accident or sudden braking.
  • Page 84 Auxiliary introduction elements form part WARNING of the supply volume of the child seat or can be acquired at a SEAT dealer- ship. If necessary, auxiliary introduction elements are inserted in both an- The lower anchor points for child seats do not include rings. Only secure chor points of the vehicle ⇒ ...
  • Page 85 ● Hook the upper retaining strap in the luggage compartment, to the cor- ⇒  f ig. responding retaining ring ● Tighten the strap so that the top of the child seat rests on the backrest. Vehicle diagram Prior to a journey...

  • Page 86: Lights And Visibility

     ⇒  p age 85. Main beam on or flasher on. ● SEAT information system ⇒  p age 22 ● Changing bulbs ⇒  p age 255 Several warning and control lamps light up for a few seconds when the igni- tion is switched on while a test of the function is being carried out.
  • Page 87 Lights and visibility Push the lever all the way down to turn off the corresponding function. CAUTION Convenience turn signals Failure to heed the warning lamps when they appear may result in faults in the vehicle. For the convenience turn signals, move the lever as far as possible upwards ...
  • Page 88 Lights and visibility Turning on and off lights Fig. 56 Next to the steering wheel: diagram of some of the types of light switch. Observe the legal requirements regarding the use of vehicle lights in each ● Switching on the fog lights : Turn the switch to position  or pull out country.
  • Page 89 Note The use of stickers to cover headlights is only permitted over a short period. To modify the direction of the headlamps more permanently, please take the vehicle to a specialised workshop. SEAT recommends visiting a Techni- cal Service. ...
  • Page 90 Lights and visibility Headlight range control, lighting of instruments and Instrument and switch lighting controls When the side lights or dipped beam headlights are switched on, the light- ing for instruments and controls lights up at a constant brightness. WARNING Heavy objects in the vehicle may mean that the headlights dazzle and distract other drivers.

  • Page 91: Sun Blind

    Lights and visibility Sun blind Options for adjusting driver and front passenger sun visors: ● Lower by unfolding towards the windscreen. ● The sun visor can be pulled out of its mounting and turned towards the Introduction door. ● Swing the sun visor towards the door, longitudinally backwards. WARNING Vanity mirror* Folded sun blinds can reduce visibility.
  • Page 92 Lights and visibility Heat-insulating glass windscreen Fig. 59 Windscreen with reflective infrared and metal coating and small window (red surface). The heat-insulating windscreens include a reflective infrared coating. The section above the rear vision mirror has been left uncoated (communication window) to allow electric components from the accessories shop to operate ⇒ ...

  • Page 93: Window Wash/Wipe System

    Lights and visibility Window wash/wipe system Windscreen wiper lever Introduction Additional information and warnings: ● Exterior detail ⇒  p age 6 ● Air recirculation mode ⇒  p age 158 ● Working in the engine compartment ⇒  p age 171 ● Caring for and cleaning the vehicle exterior ⇒  p age 188 WARNING Water from the windscreen washer water bottle may freeze on the wind- Fig.
  • Page 94  ● If necessary, remove snow and ice from the windscreen wipers before starting your journey. ● Carefully lift the frozen windscreen wipers from the glass. SEAT recom- mends a de-icer spray for this operation. Note The windscreen wipers will only work when the ignition is switched on.
  • Page 95 Lights and visibility Windscreen wipers service position CAUTION ● To prevent damage to the bonnet and the windscreen wiper arms, only leave them in the service position. ● Before driving, always lower the windscreen wiper arms.  Checking and topping up the windscreen washer bottle with water Fig.
  • Page 96 Lights and visibility ● To top up, mix water with a window cleaner recommended by SEAT ⇒  . Please follow the instructions for use found on the packaging. ● In cold weather, a special antifreeze should also be added to prevent the water from freezing ⇒ ...

  • Page 97: Rear Vision Mirror

    Lights and visibility Rear vision mirror Exterior mirrors Introduction Additional information and warnings: ● Exterior detail ⇒  p age 6 ● Braking, stopping and parking ⇒  p age 128  Rear vision mirror Fig. 65 In the front doors: button to adjust the mechanical exterior rear vision mirror.
  • Page 98 Lights and visibility ⇒  f ig. 66 Turn the rotary control to the required position: WARNING (Continued)  ● If possible, use the rear vision mirror to estimate distances to vehi- Switch on the exterior mirror heating. cles behind you or in other circumstances. Adjust the left-hand exterior rear vision mirror by turning the ●...

  • Page 99: Driving Tips

    ● Roof carrier ⇒  p age 104 as to make passengers sit in an incorrect position. ● Wheels and tyres ⇒  p age 201 ● If secured objects occupy a seat then this should not be occupied or used by anybody. WARNING...
  • Page 100 ● Transport heavy objects as far forward as possible in the luggage com- uncontrolled movement of the open rear lid. partment and lock the seat backs in the vertical position. ● When transporting objects that protrude out of the luggage compart- ●...
  • Page 101 ● Secure loads correctly so they do not move. ● When transporting heavy objects, use suitable ropes or straps. ● Lock the seat backs in vertical position.  Vehicle diagram Prior to a journey...

  • Page 102: Loading Luggage Compartment

    Always transport heavy loads in the luggage compartment and place the through the vehicle interior. To reduce the risks, please note the follow- seat backs in a vertical position. Never overload the vehicle. Both the carry- ing: ing capacity as well as the distribution of the load in the vehicle have ef- ●...
  • Page 103 Folding up the rear seat backrest Note ● Lift back the backrest of the rear seat and push it firmly into the lock un- The ventilating slits between the heated rear window and the rear shelf til it clicks securely into place ⇒ ...
  • Page 104 Transporting Rear shelf* WARNING Unsecured or incorrectly secured objects or animals on the rear shelf could cause serious injuries in case of a sudden manoeuvre or braking or even an accident. ● Do not leave hard, heavy or sharp objects (loose or in bags) on the rear shelf.
  • Page 105 ● The maximum tensile load of the fastening ring for securing objects compartment: retaining should never be exceeded. hooks. ● A child seat should never be secured with the fastening rings. There may be hooks in the upper left and right part of the luggage compart- ment. Note ●...

  • Page 106: Roof Carrier System

    Given that the water drains have been incorporated into the roof for aerody- namic reasons, only the SEAT approved basic supports and roof carrier sys- ● Avoid brusque manoeuvres and sudden braking. tems can be used.
  • Page 107 The suitable accessories can be acquired at SEAT dealerships. Note Read and take into account the instructions included with the roof carrier Securing the base supports and roof carrier system system fitted and keep them in the vehicle.
  • Page 108 Transporting Always check the weight of the base support, the roof carrier system and the weight of the load to be transported and, if necessary, weigh them. Nev- er exceed the maximum authorised roof load. If you are using a roof carrier with a lower weight rating, you cannot trans- port the maximum roof load.

  • Page 109: Trailer Coupling

    ● The trailer may be released from the vehicle when the vehicle is mov- ing. CAUTION Any type of towing bracket installed on the vehicle can cause serious and costly damage that are not covered under the SEAT guarantee.  Vehicle diagram Prior to a journey...

  • Page 110: Practical Equipment

    Practical equipment Practical equipment Storage compartments WARNING (Continued) ● Never place other mats or rugs on top of the original mat supplied by the factory. Introduction ● Make sure that no objects can fall into the driver's footwell while the vehicle is in motion.
  • Page 111 Practical equipment Storage compartment on the driver side Compartment on the centre console Fig. 71 On the driver Fig. 72 In the front part of the centre console: side: storage compart- ment. storage compartment. ⇒  f ig. 72 There may be a storage compartment on the driver side. The storage compartment may be used as a drink holder ⇒ ...
  • Page 112 Practical equipment Storage compartment with cover on the passenger side* Fig. 73 Storage compartment with cover on the pas- senger side. There may be a storage compartment with cover on the passenger side. WARNING Opening and closing the storage compartment cover The risk of serious injuries in the event of an accident during a sudden ⇒ ...
  • Page 113 Practical equipment Open storage compartment on the passenger side* Storage compartment in the back of the centre console Fig. 74 Open storage Fig. 75 In the back part of the centre console: compartment on the pas- senger side. storage compartment. The drink holder in the back part of the centre console ⇒ ...
  • Page 114 Practical equipment Other storage compartments Other storage compartments: ● In the front door trims ⇒  p age 9. ⇒  f ig. ● In front of the rear seats ● Rear shelf for light items of clothing*. ● Bag hook in the luggage compartment ⇒  p age 100. ⇒ ...

  • Page 115: Drink Holders

    Practical equipment Drink holders CAUTION Do not leave open drinks containers in the drink holders when the vehicle is in motion. They could spill during braking, for example, and cause damage Introduction to the vehicle and the electrical system.  Drink holders The drink holders are in the open storage compartments in the driver and passenger doors.
  • Page 116 Practical equipment Centre console drink holders Place the drink container in the drink holder so that it surrounds it securely.  Fig. 78 In the front part of the centre console: drink holder. Fig. 79 In the back part of the centre console: drink holder.

  • Page 117: Ashtray And Lighter

    Practical equipment Ashtray and Lighter Opening and closing the ashtray ⇒  f ig. To open, lift the lid of the ashtray in the direction of the arrow Introduction To close, push the ashtray lid down. Emptying the ashtray Additional information and warnings: ●...
  • Page 118 Practical equipment WARNING Undue use of the cigarette lighter may cause a fire or burns and other se- rious injuries. ● The cigarette lighter must only be used to light cigarettes or similar. ● Never leave children unsupervised in the vehicle. The cigarette lighter can be used when the ignition is switched on.

  • Page 119: Electrical Power Socket

    Practical equipment Electrical power socket* ● To avoid damage due to voltage variations, switch off all appliances con- nected to the 12 V socket before switching the ignition on or off and before starting the engine. Introduction ● Never connect an appliance to the 12 Volt socket that consumes more than the power indicated in watts.
  • Page 120 Practical equipment Vehicle socket To prevent voltage variations from causing damage, switch off the electrical consumer connected to the 12 Volt socket before switching the ignition on or off and before starting the engine. CAUTION ● Always follow the operating instructions for the appliances to be con- nected! ●...

  • Page 121: While Driving

    Starting, changing gears, parking While driving Starting, changing gears, parking Stopping and starting the engine WARNING Switching off the engine while driving makes stopping the vehicle diffi- Introduction cult. As a consequence you may lose control of the vehicle and there is a risk of serious accident.

  • Page 122: Ignition Lock

    Starting, changing gears, parking WARNING The components of the exhaust system reach very high temperatures. This could cause a fire and considerable damage. ● Always park your vehicle so that no part of the exhaust system can come in contact with flammable materials (such as wood, leaves, spilled fuel, dried grass, etc).
  • Page 123 Starting, changing gears, parking Complete operations only in the sequence given. WARNING When the engine has started, release the key in the ignition Unsuitable or careless use of the vehicle key could result in serious in- lock. jury. If the engine does not start, stop the process and try again af- ●...

  • Page 124: Electronic Immobilizer

    For this reason, the vehicle can only be used with a genuine SEAT key with ● The brake servo does not work when the engine is not running. To stop, the brake pedal must be pressed with more force.
  • Page 125 Starting, changing gears, parking Note The correct operation of the vehicle is only guaranteed when original SEAT keys are used.  Vehicle diagram Prior to a journey... While driving Care, cleaning and mainte- If and when Technical Data nance...

  • Page 126: Changing Gear

    Starting, changing gears, parking Changing gear WARNING Do not allow the brakes to “rub” for a prolonged period of time, or press Introduction the brake pedal frequently or for long periods of time. Continuous brak- ing heats up the brakes. This could significantly reduce braking power, When reverse gear is engaged and the ignition is switched on the following increase braking distance or even result in the total failure of the brake takes place:...
  • Page 127 Starting, changing gears, parking Pedals WARNING (Continued) ● Never place other mats or rugs on top of the original mat supplied by the factory. ● Ensure that no objects can fall into the driver's footwell while the ve- hicle is in motion. CAUTION The pedals must always have free and unobstructed passage to the floor.
  • Page 128 Starting, changing gears, parking ● Keep the clutch pedal pushed all the way down. CAUTION ● Move the gearbox lever to the required position ⇒  If, at high speeds or high engine speeds the gear lever is shifted down to a ●...
  • Page 129 Note The recommended gear display is switched off when the clutch pedal is pressed. Note On the display of the Portable Navigation System (supplied by SEAT) ⇒  p age 213 the recommended gear can also be seen.  Vehicle diagram Prior to a journey...

  • Page 130: Braking, Stopping And Parking

    Starting, changing gears, parking Braking, stopping and parking WARNING (Continued) ● Always apply the handbrake when you leave your vehicle and when you park. Introduction ● Never leave children or disabled people alone in the vehicle. They may release the handbrake, operate the gear lever and set the vehicle in The assisted braking systems are the electronic distribution of the brake motion.
  • Page 131 Starting, changing gears, parking Warning and control lamps flash- Possible cause Solution Take your foot off the accelerator. lights Possible cause ⇒  Solution  ESC* or ASR regulating. Adjust your driving style to the road conditions.  ⇒  p age 130. Handbrake applied.
  • Page 132 Starting, changing gears, parking Using the handbrake WARNING (Continued) ● Pull firmly in an upwards direction on the handbrake lever while press- your speed and drive carefully to a Specialised workshop close by to ing the button. check the brake system. During the following journey, avoid sudden brak- ●...
  • Page 133 Starting, changing gears, parking To park the vehicle CAUTION Complete operations only in the sequence given. ● Special care should be taken when parking in areas with high kerbs or ● Park the vehicle on a suitable surface ⇒  fixed barriers. Objects protruding from the ground may damage the bumper or other parts of the vehicle during manoeuvres.
  • Page 134 If the brakes are not used frequently, or if rust has formed on the discs, SEAT recommends cleaning the pads and discs by braking firmly a few times at a moderately high speed. Only do this WARNING without endangering vehicles behind you or any other road users ⇒ ...
  • Page 135 If necessary, remove the wheels to check them lack of driver attention creates an inevitable situation. Otherwise, ESP* as- thoroughly. SEAT recommends visiting a Technical Service.  sists in maintaining vehicle control in extreme situations and uses the movements of the steering made by the driver to maintain the vehicle mov- ing in the desired direction.
  • Page 136 Starting, changing gears, parking The ABS, BAS, ASR and EDL systems are incorporated into the ESP*. The Traction control system (ASR) or Traction Control (TC) ESP* is always on In the event of wheelspin, the traction control system ASR or TC reduces the engine torque to match the amount of grip available.
  • Page 137 Starting, changing gears, parking WARNING (Continued) Note ● Even though braking assist systems are extremely effective and help Noises may be heard while any of the above systems are operating.  control the vehicle in difficult situations, remember that the vehicle sta- bility depends on tyre grip.
  • Page 138 WARNING SEAT have developed a special brake fluid optimised for the brake systems of their vehicles. To ensure the optimum working of the brake system, SEAT If the brake fluid level is low or unsuitable/old brake fluid is used, the recommends the use of brake fluid in accordance with the VW 501 14 brake system may fail or braking power will be reduced.
  • Page 139 Starting, changing gears, parking For the sake of the environment Brake fluid is an environmental pollutant. Collect any spilt service fluids and allow a professional to dispose of them.  Vehicle diagram Prior to a journey... While driving Care, cleaning and mainte- If and when Technical Data nance...

  • Page 140: Ecological Driving

    Starting, changing gears, parking Ecological driving Vehicles with a gear display help to achieve an economical driving style as the display indicates the best moment to change gear. Let the vehicle roll Introduction If you take your foot off the accelerator, the fuel supply is stopped and con- sumption is reduced.
  • Page 141 It takes a few kilometres of driving for the engine to ● Switch off the seat heating when the seats have warmed up. warm up and to normalise consumption.
  • Page 142 Always check the engine oil level and observe service intervals (engine oil change intervals). When purchasing engine oil, always observe legal requirements and ensure that the oil is approved by SEAT. Avoid carrying unnecessary loads The lighter the vehicle, the more economical and ecological the driving style.

  • Page 143: Steering

    Starting, changing gears, parking Steering Control and warning lamps lights up Possible cause Solution Introduction The steering system should be Electromechanical steering  (red) checked by a Specialised faulty. The power steering* is not hydraulic but electromechanical. The advantage workshop as soon as possible. of this steering system is that it disposes of hydraulic tubes, hydraulic oil, The steering system should be the pump, filter and other components.
  • Page 144 Starting, changing gears, parking Several warning and control lamps light up for a few seconds when the igni- Electromechanical steering tion is switched on while a test of the function is being carried out. They will With the electromechanical steering system, the power steering function au- switch off after a few seconds.

  • Page 145: Driver Assistance Systems

    Driver assistance systems Driver assistance systems Parking distance warning system* WARNING (Continued) ● The surface of certain objects and some clothing do not reflect the ul- trasound signals from the parking distance system. The system cannot Introduction detect or incorrectly detects these objects and people wearing these types of clothes.
  • Page 146 ⇒  p age 144. On the screen of the SEAT Portable System (supplied by SEAT) the area be- hind the vehicle is shown registered by the sensors. Any obstacles are dis- play in relation to the vehicle ⇒ ...
  • Page 147 Necessary operations Note Switching on the ⇒  p age 144 parking distance SEAT recommends practising using parking distance warning system in a Switching the display warning system. The OPS switches on automati- traffic free zone or in a car park to familiarise yourself with the system and cally.

  • Page 148: Cruise Control* (Cruise Control System - Ccs)

    Driver assistance systems Cruise control* (Cruise control system - CCS) Control lamp lights up Possible cause Introduction This cruise control system maintains the set speed of  the vehicle. The cruise control system (CCS) is able to individually maintain the set speed when driving forwards from approx.
  • Page 149 Driver assistance systems Cruise control system operation Control position, control Function Action ⇒  f ig. 91 operations Press the button in the area  briefly to in- crease speed in shot measures of about. 1 km/ Increasing the The vehicle accelerates ac- h (1 mph) and store.
  • Page 150 Driver assistance systems ● If the system detects a fault that could affect the working order of the CCS. ● If you increase the stored speed by pressing the accelerator pedal for a certain time. ● If the brake or clutch pedal is depressed. ●...

  • Page 151: City Safety Assist Function

    If you suspect that the laser sensor of the City Safety Assist function is dam- aged, switch off the City Safety Assist function. This will avoid additional damage. ● Any reparation of the laser sensor requires specialist knowledge. SEAT recommends visiting a Technical Service. ...
  • Page 152 Driver assistance systems flashes Possible cause ⇒  Solution Note fast: The City Safety Assist If the City Safety Assist function activates a brake, the brake pedal range is system function brakes auto- Control lamp turns off automati- reduced. This makes the brake pedal seem “harder”. ...
  • Page 153 ● Replace the windscreen if it is scratched, cracked or chipped by stones in the laser sensor area. Only use a windscreen authorised by SEAT. Carrying out repairs is not permitted (i.e. in the case of damage suffered in an impact from a stone).
  • Page 154 Driver assistance systems Function Switch off the City Safety Assist function in the following situations Switching off the City Safety Assist function is recommended in the follow- ing situations ⇒  ● While the vehicle is being towed. ● If the vehicle has been taken to an automatic car wash. ●...
  • Page 155 Driver assistance systems Special driving situations Fig. 95 A: Vehicle on a bend. B: Motorcyclist driving ahead out of range of the laser sensor. For example, the following driving situations require special attention: Driving through a bend When entering or leaving a “long” bend, the vehicle may decelerate when ⇒ ...

  • Page 156: Hill Hold

    Additional information and warnings: ⇒  p age 120. ● SEAT information system ⇒  p age 22 There is a fault in the alternator. ⇒  p age 184  ● Braking, stopping and parking ⇒  p age 128...
  • Page 157 The engine will stop. ● To restart, simply engage the clutch. Important conditions for the engine to stop automatically ● The driver's seat belt must be fastened. ● The driver door must be closed. ● The bonnet must be closed.

  • Page 158: Hill-Start Aid

    In some cases, it may be necessary to start the engine by hand using the key. Refer to the corresponding control lamp on the instrument panel.  ● If the driver unbuckles his/her seat belt. ● If the driver door is opened. ● If the bonnet is opened.
  • Page 159 Driver assistance systems This system also works when reversing uphill. WARNING ● If you do not start the vehicle immediately after taking your foot off the brake pedal, the vehicle may start to roll back under certain condi- tions. Depress the brake pedal or use the hand brake immediately. ●...

  • Page 160: Air Control

    ● Never leave the air fan turned off or use the air recirculation for long Additional information and warnings: periods of time; the air inside the interior will not be refreshed. ● SEAT information system ⇒  p age 22 ● Windscreen wash system ⇒  p age 91 CAUTION ●...
  • Page 161 When the cooling system is turned off, air coming from the outside will not Keep the air vents in front of the windscreen free of snow, ice and leaves to be dehumidified. To avoid fogging up the windows, SEAT recommends leav- ensure heating and cooling are not impaired and to prevent the windows ing the cooler (compressor) on.
  • Page 162 Air control Controls Fig. 98 In the centre console: Heating and ventilation system rotary control. Fig. 99 In the centre console: Air conditioning system controls. ...
  • Page 163 Air control Heated rear window Control Additional information. Heating and ventilation system ⇒  f ig. 98 ⇒  f ig. button and air conditioning system The heated rear window button is located on the centre console. The  heated rear window only works when the engine is running and switches off Temperature.
  • Page 164 Air control The air conditioning operates most effectively with the windows closed. ● The engine is not running. However, if the vehicle has heated up after standing in the sun for some ● The fan is switched off. time, the air inside can be cooled more quickly by opening the windows ●...

  • Page 165: Air Recirculation

    Air control Air vents Fig. 100 Dash panel: Air vents. Air vents Air recirculation ⇒  f ig. 100 Never close the air vents completely to ensure heating, cool- ing and ventilation inside the vehicle. Important Air recirculation mode prevents the ambient air from entering the interior. ●...
  • Page 166 Air control WARNING Stuffy or used air will increase fatigue and reduce driver concentration possibly resulting in a serious accident. ● Never use recirculation mode for long periods as it does not refresh the air inside the vehicle. ● If the cooling system mode is switched off and air recirculation mode switched on, the windows can mist over very quickly, considerably limit- ing visibility.

  • Page 167: At The Filling Station

    WARNING Refuelling or handling fuel carelessly can cause an explosion or fire re- For safety reasons, SEAT does not recommend carrying a spare fuel canis- sulting in serious burns and injuries. ter in the vehicle. Fuel could be spilled and catch fire, above all in case of ●...
  • Page 168 ● Refuelling a petrol engine with diesel can cause serious engine and fuel Fig. 101 On the instru- system damage; the resulting malfunctions are not covered by the SEAT ment panel: fuel gauge warranty. If you refuel with the wrong type of fuel, never start the engine.
  • Page 169 At the filling station Gauge position Possible cause ⇒  CAUTION lights up Solution ⇒  f ig. 101 ● Always pay attention to any lit lamps and to the corresponding descrip- The fuel tank is almost tions and instructions to avoid damage to the vehicle. Red mark (ar- empty.
  • Page 170 At the filling station Unscrewing the fuel tank plug CAUTION ● The fuel tank plug is at the rear of the vehicle on the right. ● Always remove any fuel spilled anywhere on the vehicle to avoid dam- ● Pull the rear zone of the fuel tank flap to open. age to the wheel housing, the tyre and vehicle paintwork.

  • Page 171: Fuel

    These additives will help to prevent corrosion, keep the fuel system clean and prevent deposits SEAT recommends the use of sulphur-free or low sulphur fuel to reduce con- from building up in the engine.
  • Page 172 Available petrol additives for improvements in Anti-detonation ratings or oc- tane ratings may contain metal additives ⇒  . SEAT recommends “Genuine SEAT Additives for petrol engines”. These addi- tives are available from Specialised workshops, who will inform you of their application.

  • Page 173: In The Engine Compartment

    In the engine compartment Care, cleaning and maintenance In the engine compartment Working in the engine compartment WARNING If the vehicle moves unexpectedly, this could cause serious injury. Introduction ● Never work underneath the vehicle if it is not secured against moving. If you must work underneath the vehicle with the wheels in contact with Before working in the engine compartment, make sure that the vehicle is the ground then it should be parked on flat ground, the wheels should be...
  • Page 174 In the engine compartment WARNING (Continued) WARNING ● Never open the bonnet if you see steam or coolant escaping from the The high voltages of the electrical system can give electric shocks as well engine compartment. Hot vapours and coolant can cause serious burns. as causing burns and serious injury and possibly even death! Always wait until you cannot see or hear the sound of steam or coolant ●...
  • Page 175 In the engine compartment Preparing the vehicle for work in the engine compartment WARNING Checklist Refill liquids and certain materials can catch fire easily in the engine compartment, causing a fire and serious injury! Carry out the operations below in the order indicated before starting work in ●...
  • Page 176 In the engine compartment Opening and closing the bonnet Fig. 104 A: Release lever in the footwell on the driver side. B: Release lever on the bonnet. Fig. 105 C: Bonnet securing rod in the bonnet. D: Bon- net supported by the bonnet securing rod. ...
  • Page 177 In the engine compartment Opening the bonnet CAUTION ● Before opening the bonnet, make sure that the windscreen wiper arms ● To avoid damage to the bonnet and to the windscreen wiper arms, only are in place against the windscreen ⇒  . open the bonnet when the windscreen wipers are in place against the wind- ⇒ ...

  • Page 178: Engine Oil

    In the engine compartment Engine oil Warning and control lamps flashes Possible cause Solution Introduction  Stop the vehicle! Switch off the engine. Check the Additional information and warnings: engine oil level, and if necessa- ● ⇒  B ooklet Maintenance Programme ry, refill with ⇒ ...
  • Page 179 CAUTION ● Only use engine oils whose specifications are expressly approved by SEAT. The use of any other type of engine oil could cause engine damage! ● No additives should be used with engine oil. Any damage caused by the use of such additives would not be covered by the factory warranty.
  • Page 180 ● The engine must be hot to be able to check the engine oil level. Stop the ● Only refill using approved SEAT engine oil in small quantities (no more engine and wait a few minutes for the oil to drain back into the sump.
  • Page 181  able tools and special knowledge, always visit a Specialised workshop to have the engine oil and filter changed. SEAT recommends visiting a Techni- cal Service. Detailed information on the service intervals are shown in the Maintenance Programme.

  • Page 182: Engine Coolant

    ⇒  ! In Coolant warning lamp such a case, have any work carried out by a Specialised workshop. SEAT rec- ommends visiting a Technical Service. Several warning and control lamps light up for a few seconds when the igni- tion is switched on while a test of the function is being carried out.
  • Page 183 Never mix genuine additives with other additives that are not approved by Engine coolant specifications SEAT. Otherwise, you run the risk of causing severe damage to the engine and the engine cooling system. The engine cooling system comes with a special mixture of water and at ●...
  • Page 184 ● Remove the cap very carefully ⇒  ● Only refill using new engine coolant according to SEAT specifications (⇒  p age 181) ⇒  . ● The engine coolant level should be between the marks on the coolant ⇒ ...
  • Page 185 In the engine compartment CAUTION WARNING ● Top up with distilled water only. Any other type of water may lead to con- Hot vapours and coolant can cause serious burns. siderable rusting in the engine due to its chemical components. This could ●...

  • Page 186: Vehicle Battery

    ● Keep children away from acid and the battery itself! ⇒  ! In such a case, have any work carried out by a Specialised workshop. SEAT recommends visiting a Technical Service. Negligent work can cause ● Wear eye protection. serious injury.
  • Page 187 In the engine compartment Warning lamp Checking the electrolyte level of the vehicle battery lights Possible cause Solution Contact a Specialised workshop. Have the electrical system checked.  Faulty generator. Disconnect any unnecessary electrical consumers. The gener- ator does not charge the battery while the vehicle is in motion.
  • Page 188 The electrolyte level of the vehicle's battery is correct. your vehicle before you purchase one. SEAT recommends you have the bat- tery replaced by a Technical Service. WARNING Use only maintenance-free genuine batteries conforming to TL 825 06 and VW 7 50 73 Standards.
  • Page 189 In the engine compartment the maximum service intervals permitted ⇒  B ooklet Maintenance WARNING Programme. A highly explosive mixture of gases is released when the battery is under Automatic consumer disconnection charge. The intelligent vehicle electrical system automatically implements a range ●...

  • Page 190: Vehicle Care And Maintenance

    Vehicle care and maintenance Vehicle care and maintenance Care and cleaning the vehicle exterior WARNING (Continued) ● Harmful vapours may be produced when using vehicle care products. Therefore, care products should only be used in well-ventilated spaces or Introduction in the open air. ●...
  • Page 191 However, wear and CAUTION damage to the paintwork will depend on the type of car wash used. SEAT ● The temperature of the water must not exceed +60°C (+140°F). recommends the use of car washes without brushes.
  • Page 192 Vehicle care and maintenance CAUTION WARNING To prevent damage to the vehicle, please observe the following before en- The incorrect use of high pressure cleaning equipment could result in tering an automatic car wash: permanent damage, visible or invisible, to the tyres or other materials. ●...
  • Page 193 ⇒  . ● Never mix our cleaning products with other products not recommended by SEAT in the windscreen washer bottle. This could lead to flocculation and Special cleaning products or window cloths are available at any Technical may block the windscreen washer jets.
  • Page 194 Vehicle care and maintenance Cleaning and changing windscreen wiper blades Check the condition of the wiper blades regularly. If the wipers scrape across the glass they should be changed if they are damaged, or cleaned if they are dirty ⇒  . Damaged wiper blades should be replaced immediately.
  • Page 195 Vehicle care and maintenance ● Insert a new blade of the same length and type in the windscreen wiper Even if a wax solution is used regularly in the automatic car wash, SEAT rec- arm in the opposite direction to the arrow and hook into place.
  • Page 196 Remove road salt and brake dust by washing the wheels approximately Protection of vehicle undercarriage once a fortnight. Use an acid free detergent to clean the wheel rims. SEAT recommends treating the wheel rims thoroughly with a hard wax about The vehicle underbody is coated to protect it from chemical and mechanical once every three months.
  • Page 197 ● Do not apply additional underseal or anti-corrosion products to the exhaust pipes, catalytic converters, heat shields or other parts of the ve- ● SEAT recommends you have this work performed by a specialised hicle which reach high temperatures. workshop.

  • Page 198: Caring For And Cleaning The Vehicle Interior

    The dye from many items of modern clothing (e.g. dark jeans) is not always cordance with the manufacturer's instructions. solid enough. Seat upholstery (material and leather), especially when light- ● Only use approved or recommended care products. coloured, may visibly discolour if the dye comes out of clothing (even when used correctly).
  • Page 199 ● Always follow the check list and perform the necessary operations. Note SEAT recommends you take the vehicle to a Specialised workshop to treat any stains on the upholstery caused by the discolouration of clothing.  Vehicle diagram Prior to a journey...
  • Page 200 Vehicle care and maintenance Cleaning storage compartments, drinks holders and Type of stain Cleaning the vehicle ashtray Water-based stains, – Use a sponge and wipe with a solution of water e.g. coffee or fruit and wool wash. juice. – Dry with a dry, absorbent cloth. Persistent stains, –...
  • Page 201 ● Clean the ashtray with a dishcloth. Use a toothpick or similar to remove ash from the area where cigarettes are If the seat belt is very dirty, the belt retractor may not work correctly thus ⇒  f ig. stubbed out 114.
  • Page 202 ● Never attempt to repair, modify or remove a seat belt yourself. ● Always have damaged seatbelts replaced immediately by seat belts approved for the vehicle in question by SEAT. Seat belts which have been worn in an accident and stretched must be replaced by a Specialised workshop.

  • Page 203: Wheels And Tyres

    ● Never drive on damaged (punctured, cut, cracked or dented) or worn SEAT recommend that all work on tyres and wheels is carried out by a Speci- tyres. Driving on damaged or worn tyres could result in burst tyres, seri- alised workshop.
  • Page 204 ● Remove any foreign bodies found on the outside of the tread provided they have not passed through the wall of the tyre ⇒  p age 207. SEAT recommends that tyres over six years old are replaced with new tyres. ● The instructions for tyre control systems should always be observed.
  • Page 205 Do not place tyres mounted on the wheel in a vertical position. The tyres and rims approved by SEAT are specially matched to the character- istics of the vehicle and are critical to good road holding and safe handling.
  • Page 206 ● Never use tyres which are larger than SEAT approved tyres. If the tyres ● Inspect wheel trims regularly for damage and replace as required. are too big, they may knock or rub against the chassis or other components, resulting in damage.
  • Page 207 Vehicle care and maintenance Note If you use tyres that are approved by SEAT, you can be sure that the true tyre dimensions will be correct for your vehicle. For other tyre models, the tyre vendor should provide the manufacturer's certificate with the tyre, indicat- ing that this type of tyre is suitable for your vehicle.
  • Page 208 Vehicle care and maintenance Checking tyre pressures CAUTION Check tyre pressures only when the vehicle has not been driven for more ● Take care not to tilt the manometer when placing it on the valve. Other- than a few kilometres at low speeds in the past three hours. wise, the valve may be damaged.
  • Page 209 Vehicle care and maintenance The minimum tread depth required by law in the majority of cases is Damaged tyres 1.6 mm, measured in the tread grooves next to the tread wear indicators. Observe legal requirements in each country. Damage to wheels and tyres is often not immediately visible. If you notice unusual vibration or the vehicle pulling to one side, this may indicate that The performance of winter tyres is much reduced when the tread has worn one of the tyres is damaged ⇒ ...
  • Page 210 Vehicle care and maintenance Running gear settings: an incorrectly positioned running gear increases the Removing the spare wheel wear of tyres and affects your safety while driving. If tyres wear too quickly, ● Open the rear lid and lift the luggage compartment shelf ⇒  p age 100. have the wheel alignment checked at a Specialised workshop.
  • Page 211 Vehicle care and maintenance ● Do not drive faster than 80 km/h (50 mph). WARNING (Continued) ● Avoid heavy acceleration, hard braking and fast cornering. ● You should never use more than one temporary spare wheel. ● Snow chains on the temporary spare wheel are not permitted ●...
  • Page 212 Vehicle care and maintenance Radial Tyre code (example) Meaning Rim diameter code DOT BT RA TY5 1709 Tyre identification number (TIN , may be only on interior wall of wheel) and date of manufacture: Load index & speed rating DOT The tyre complies with the legal require- DOT tyre identification number ments of the US Department of Trans- Severe snow conditions...
  • Page 213 165/70 R14 5 J x 14 offset of 35 615 kg SEAT recommends you ask a Technical Service for further information on wheel, tyre and chain sizes. Speed rating The speed rating indicates the maximum speed permitted for the tyres.
  • Page 214 Then, fit the rear wheel that is free, instead of the damaged front wheel. In this situation, observe the rotating direction of the wheels. SEAT recommends attaching the snow chains before fitting the wheel.

  • Page 215: Modifications

    Introduction ● SEAT strongly recommends you to only use SEAT approved accesso- ® ries and SEAT original spare parts. These parts and accessories have Additional information and warnings: been specially tested by SEAT for suitability, reliability and safety.
  • Page 216 Any retro-fitted equipment which has a direct effect on vehicle control must Up to 1000 kilometres the following instructions apply: be approved by SEAT for use in your vehicle and bear the e mark (the Euro- pean Union's authorisation symbol). This includes cruise control systems or ●...
  • Page 217 ● Read and observe the information and warnings given on the fluid containers. Your SEAT Official Service cannot be held liable for any damage caused by technical modifications or repairs performed incorrectly. ● Only work in the open air or in well-ventilated zones, when using products which give off harmful vapours.
  • Page 218 Modifications to the vehicle suspension may affect the operation of the air- bag system in the event of collision. For example, if wheel and tyre combi- nations not approved by SEAT are used, or if the vehicle height is lowered,...
  • Page 219  SEAT has approved your vehicle for use with two-way radios providing the following conditions are observed: Information stored by the control units ●...
  • Page 220 Bluetooth technology , it will comply with the legislation in many coun- The SEAT Official Service must have a record of any modification to the pro- tries which only permits the use of mobile phones inside vehicles using a gramming.
  • Page 221  Mobile telephones should only be used inside the vehicle if they are con- nected to a hands-free system. SEAT recommends using an external aerial should you wish to use a mobile telephone inside the vehicle. ®...
  • Page 222 Vehicle care and maintenance SEAT Portable System* The SEAT Portable System (supplied by SEAT) allows for the use of other ve- hicle functions such as additional applications ⇒  The gradient and the angle of vision can be set by moving the navigator to ⇒ ...
  • Page 223 ● Do not clean the holder for the navigation device with moist products. weather conditions. Use a dry cloth. Note SEAT recommends taking the Portable Navigation System with you when you leave the vehicle to prevent it from being stolen.  Vehicle diagram Prior to a journey...
  • Page 224 Vehicle care and maintenance Jacking points for raising vehicle The vehicle should not be lifted using lifting platforms with lift pads con- taining fluid. When raising a vehicle using a platform or jack, a series of precautionary measures are required. Never raise the vehicle with a lifting platform or jack unless you have received training in how to do so and know how to lift the vehicle safely.
  • Page 225 Vehicle care and maintenance CAUTION ● Never raise the vehicle at the engine oil sump, the gearbox or the rear or front axles. ● Always use an intermediate rubber support to prevent damage to the vehicle underbody. Check that the arms of the lifting platform are able to move with obstruction.

  • Page 226: Notes For The User

    Vehicle care and maintenance Notes for the user Labels and plates Introduction Additional information and warnings: ● Exterior detail ⇒  p age 6 ● Accessories, parts replacement, repairs and modifications ⇒  p age 213 ● ⇒  B ooklet Maintenance Programme WARNING Fig.
  • Page 227 ● SEAT does not accept liability if the vehicle does not comply in part or in Conformity certification full with the legal requirements of other countries or continents.
  • Page 228 Collection and scrapping of end-of-life vehicles Collection of end-of-life vehicles SEAT is already prepared for the moment when you wish to scrap your vehi- cle and offers you an environmentally-friendly solution. An extensive net- work of used vehicle reception centres already exists in much of Europe. Af-...

  • Page 229: Purification System

    Vehicle care and maintenance Engine management and exhaust gas Control lamps purification system lights Possible cause Solution Introduction Take the vehicle to a Specialised Fault in engine management  workshop as soon as possible (Electronic Power Control). and have the engine checked. Additional information and warnings: You should reduce speed accord- ●...
  • Page 230 Vehicle care and maintenance Catalytic converter The catalytic converter permits the subsequent treatment of the exhaust gases thus reducing contaminating gas emissions. To ensure a longer work- ing life for the exhaust system and catalytic converter in a petrol engine: ●...

  • Page 231: Frequently Asked Questions

    If you suspect that the vehicle has a fault or is damaged when using it, be- Assistance systems ac- tems” in the detailed alpha- fore consulting a SEAT dealership or a specialised workshop, carefully read tive. betical index. the following instructions. Similarly, the terms in the alphabetical index “Things to note”...
  • Page 232 Practical information Possible causes, Problem Possible solution among others Charge the battery Vehicle battery flat. ⇒  p age 184. The electrical Fuel tank level insuffi- Refuel ⇒  p age 165. equipment is not cient. working. Check fuse and change if A fuse is blown.

  • Page 233: In Case Of Emergency

    Practical information In case of emergency Protecting yourself and securing the vehicle Introduction Additional information and warnings: ● Braking, stopping and parking ⇒  p age 128 ● Emergency locking and unlocking ⇒  p age 234 ● Vehicle tools ⇒  p age 237 ●...
  • Page 234 Practical information Checklist (Continued) WARNING Place an emergency warning triangle to indicate the position of your vehicle to other road users. The components of the exhaust system reach very high temperatures. This could cause a fire and considerable damage. Allow the engine to cool and check if a specialist is required. ●...
  • Page 235 Fire extinguisher A fire extinguisher can be stored in a holder in the passenger seat footwell. The fire extinguisher must conform to legal requirements, be ready for use and be checked regularly. Check the certification seal on the extinguisher.

  • Page 236: Emergency Locking And Unlocking

    Practical information Emergency locking and unlocking CAUTION When opening and closing in an emergency, carefully disassemble compo- nents and then reassemble them carefully to avoid damage to the vehicle. Introduction  The doors and rear lid can be locked manually and partially opened, for ex- ample if the key or the central locking is damaged.
  • Page 237 Practical information Manually locking the passenger side door ● Door open. ● Remove the rubber cap to the front of the door. The rubber cap is ⇒  f ig. marked with a lock symbol  128. ● Unfold the key shaft if necessary ⇒  p age 28. ●...
  • Page 238 Practical information ● If necessary, fold the rear seat bench backrest forwards ⇒  p age 55. ● Remove equipment to access the inside of the rear lid. ● Unfold the key shaft ⇒  p age 28. ⇒  f ig. 130 ●...

  • Page 239: Vehicle Tool Kit

    Practical information Vehicle tool kit* Location Introduction When securing the vehicle in case of a breakdown, please note the legal re- quirements for each country. Vehicle tool kit For vehicles with a factory-fitted spare wheel or temporary spare wheel, in addition to winter wheels, the luggage compartment may contain additional vehicle tools ⇒ ...
  • Page 240 The screwdriver may be found underneath the wheel span- ner. Adapter for antitheft bolt. SEAT recommend you carry the wheel bolt adapter in the vehicle tool kit at all times. The code number of the anti- theft wheel bolt is stamped on the front of the adapter. In case it is lost, another adapter can be ordered using this number.

  • Page 241: Wheel Trims

    Practical information Wheel trims Hubcaps Introduction Additional information and warnings: ● Caring for and cleaning the vehicle exterior ⇒  p age 188 ● Vehicle tools ⇒  p age 237 ● Change wheel ⇒  p age 241 ● Tire Mobility Set ⇒  p age 247 WARNING Fig.
  • Page 242 Practical information Full hubcaps Wheel bolt caps Fig. 134 Removing the Fig. 135 Removing the full hubcap. wheel bolt caps. ● Take the wire hook from the vehicle tool kit ⇒  p age 237. Removing the full hubcap ⇒  f ig. 135 ●...

  • Page 243: Changing A Wheel

    Practical information Changing a wheel WARNING (Continued) ● If you are changing a wheel yourself, you should be familiar with the required procedure. Otherwise, you should seek professional assistance. Introduction ● Only use suitable tools that are not damaged when changing a wheel. ●...
  • Page 244 Practical information Preparations for changing a wheel Wheel bolts Check list Before changing a wheel, complete the following operations in the order given ⇒  In the event of a flat tyre, park the vehicle a safe distance from traffic and on suitable ground. Apply the handbrake firmly ⇒ ...
  • Page 245 Practical information If the wheel bolt is very tight, you may be able to loosen it by pushing down If wheel bolts are rusty and it is difficult to tighten them, the threads should on the end of the wheel brace carefully with your foot. Hold on to the vehicle be replaced and cleaned before checking the tightening torque.
  • Page 246 Practical information Raising the vehicle with the jack Fig. 138 Jack position points Fig. 139 jack mounted on the left rear part of the vehi- cle. The jack may be applied only at the jacking points shown (marks on chas- Raise the vehicle using only the designated jacking points.
  • Page 247 Please observe the following rules to minimise the risk of in- jury: ● You should only use a jack approved by SEAT for your vehicle. Other jacks, even those approved for other SEAT models, might slip out of place.
  • Page 248 Practical information ● Tighten all of the wheel bolts clockwise ⇒  Changing a wheel . Tighten the bolts in diago- nal pairs (not in a circle). ● Put the caps, trim or full hubcap back on ⇒  p age 239. WARNING If the wheel bolts are not treated suitably or not tightened to the correct torque then this could lead to loss of vehicle control and to a serious ac-...

  • Page 249: Anti-Puncture Kit

    Practical information Anti-puncture kit* WARNING Using the tire mobility set can be dangerous, especially when filling the Introduction tyre at the roadside. Please observe the following rules to minimise the risk of injury: The Tyre Mobility Set* will reliably seal punctures caused by the penetration ●...
  • Page 250 (50 mph) and subsequently check the tyre. For the sake of the environment Dispose of used or expired sealant observing any legal requirements. Note A new bottle of sealant can be purchased at SEAT dealerships. Fig. 141 Standard repre- Note sentation: Contents of Take into account the separate instruction manual of the tire mobility set the tire mobility set.
  • Page 251 Practical information Bottle of sealant WARNING Spare tyre valve Failure to follow the checklist prepared for your own safety could lead to The valve insert remover has a gap at the lower end for a valve insert. accidents and severe injuries. The valve insert can only be screwed or unscrewed in this way.
  • Page 252 Practical information ● Start the vehicle engine and leave it running. WARNING (Continued) ⇒  f ig. 141 ● Attach the connector to a 12 volt socket of the vehicle ● Allow them to cool before storing the device. ⇒  p age 117. ●...
  • Page 253 Practical information WARNING Driving with an unsealed tyre is dangerous and can cause accidents and serious injury. ● Do not continue driving if the tyre pressure is 1.3 bar (19 psi / 130 kPa) and lower. ● You should obtain professional assistance. ...

  • Page 254: Fuses

    Practical information Fuses WARNING Using unsuitable fuses, repairing fuses or bridging a current circuit with- Introduction out fuses can cause a fire and serious injury. ● Never use a fuse with a higher value. Only replace fuses with a fuse of Due to the constant update of vehicles, fuse assignments depending on the same amperage (same colour and markings) and size.
  • Page 255 Practical information Vehicle fuses Identifying fuses situated below the driver-side dash panel by colours Colour Amp rating Purple Light brown Brown Blue Yellow White or transparent Green Orange Fig. 142 Below the driv- Opening and closing the fuse box situated below the dash panel er side dash panel: fuse box cover.
  • Page 256 Practical information Identifying a blown fuse CAUTION ⇒  f ig. A fuse is blown if its metal strip is ruptured 144. ● Always carefully remove the fuse box covers and refit them correctly to avoid problems with your vehicle. Point a lamp at the fuse. This will make it easier to see if the fuse is blown. ●...

  • Page 257: Changing Bulbs

    Changing bulbs requires a certain amount of manual skill. If you are unsure, partment is a hazardous area and could cause severe injury. SEAT recommends that you consult an Technical Service or request assis- ● The bulbs H4, HB4 and H7 are pressurised and might explode on tance from a specialist.
  • Page 258 Practical information Information for replacing bulbs Check if the new bulb is working. If the bulb is not working, it may not have been correctly fitted, it could be damaged or the connector may not be correctly connected. Checklist Every time a bulb for the headlights is replaced, visit a specialised To replace a bulb, carry out the following operations always in the order giv- workshop to check the headlights.
  • Page 259 Practical information Replacing the bulbs in the headlights Fig. 145 In the engine compartment: Rear view of the front left headlight with rubber cover: dipped beam and main beam headlights, side lights and daytime driving lights and turn signal. There is no need to remove the headlight to replace bulbs. Complete operations only in the sequence given: ⇒ ...
  • Page 260 Practical information Complete operations only in the sequence given: ⇒  f ig. 145 Dipped beam and main beam headlights Side light and daytime driving light Turn signals (front) Insert the bulb, return it to its position and Insert the bulb holder in the headlight and Insert the bulb holder in the headlight and insert the retaining clip turn it clockwise as far as the stop.
  • Page 261 Practical information Complete operations only in the sequence given: Complete operations only in the sequence given: ⇒  f ig. 147 Turn the bulb holder in the direction of the arrow, in an 10. Replace the wheel arch trim into its position. anti-clockwise direction as far as it will go and remove it, along with Place the expansive rivet in the wheel arch trim and bumper and the bulb, pulling backwards.
  • Page 262 Practical information Changing the bulbs in the rear lights Fig. 148 On the side of the luggage compartment: TO: Remove the cover, B: Removing the tail light units. Fig. 149 Tail light unit: C: Remove the bulb holder, D: Remove the bulbs. Complete operations only in the sequence given.
  • Page 263 Practical information Removing the tail light units Changing the number plate light Always take the checklist into account and take the necessary ac- tions ⇒  p age 256. Open the rear lid ⇒  p age 40. ⇒  f ig. 148 Carefully remove the cover towards the lever Pull the release...
  • Page 264 Practical information Changing the side turn signal bulb Only carry out the operations in the sequence indicated: Always take the checklist into account and take the necessary ac- tions ⇒  p age 256. With one hand, press on the number plate light from left to right ⇒ ...
  • Page 265 Practical information Only carry out the operations in the sequence indicated: Always take the checklist into account and take the necessary ac- tions ⇒  p age 256. ⇒  f ig. 152 With one hand move the side turn signal backwards Remove the side turn signal from the chassis by leverage Remove the bulb holder with the bulb in the direction of the arrow ⇒ ...

  • Page 266: Starting Assistance

    Practical information Starting assistance WARNING (Continued) ● A highly explosive mixture of gases is released when the battery is being charged. Always keep lit cigarettes, open flames, sparks and fire Introduction far from the battery. Never use a mobile telephone when connecting and removing the jump leads.
  • Page 267 Practical information How to jump start: description 2. Connect one end of the red jump lead to the positive terminal ⇒  f ig. 154 ⇒  f ig. 155 of the vehicle with the flat bat- tery 3. Connect the other end of the red jump lead to the positive ter- minal in the vehicle providing assistance 4.
  • Page 268 Practical information 11. Turn on the heater blower and heated rear window in the vehi- WARNING (Continued) cle with the flat battery. This helps minimise voltage peaks ● The non-insulated parts of the battery clamps must not be allowed to which are generated when the leads are disconnected.

  • Page 269: Towing And Tow Starting

    Practical information Towing and tow starting WARNING When towing the vehicle, the handling and braking efficiency change Introduction considerably. Please observe the following instructions to minimise the risk of serious accidents and injury: When towing or tow starting, respect the legal requirements. ●...
  • Page 270 Practical information Instructions for tow starting Situations in which the vehicle should not be towed In the following cases, the vehicle should not be towed but transported on a In general, the vehicle should not be started by towing. Jump-starting is trailer or special vehicle: much more preferable ⇒ ...
  • Page 271 Practical information Note the instructions for towing ⇒  p age 268. Fitting the front tow ring To fit the tow ring ● Take the tow ring from the on-board tools in the luggage compartment ⇒  p age 237. ⇒  f ig. 156 ●...
  • Page 272 Practical information If the vehicle is towed, with the hazard warning lights on and the ignition switched on, the turn signal may be used to indicate changes of direction. Simply operate the turn signals lever as usual. Meanwhile, the hazard warn- ing lights will go off.

  • Page 273: Technical Data

    Description of specifications Technical Data Description of specifications Technical specifications Introduction The Maintenance Programme vehicle data or the official vehicle documents show which engine is installed in the vehicle. The instructions in the official vehicle documents take precedence. All the technical data provided in this documentation is applicable to the basic model.
  • Page 274 Description of specifications Vehicle identification data number (chassis number) is also stamped on the right water drain channel. The water drain channel is located between the suspension tower and the wing. Open the bonnet to read the vehicle identification number . Vehicle data plate ⇒ ...
  • Page 275 Description of specifications ● Passengers. for the vehicle kerb weight. The specifications do not refer to an individual vehicle. To measure the fuel consumption, two measuring cycles are carried ● Total equipment. out on a rolling road test bed. The test criteria are as follows: ●...

  • Page 276: Engine Specifications

    Description of specifications Engine specifications Petrol engine 1.0 44 kW (60 PS) Engine specifications Power output in kW (PS) 44 (60)/ 5000-6000 Maximum torque in Nm at rpm 95/ 3000-4300 No. of cylinders/capacity in cm 3/ 999 Fuel 95 super RON Research Octane Number = Anti-detonation rating of the petrol.
  • Page 277 Description of specifications Petrol engine 1.0 44 kW (60 PS) Ecomotive Engine specifications Power output in kW (PS) 44 (60)/5000 Maximum torque in Nm at rpm 92/3000 No. of cylinders/capacity in cm 3/999 Fuel 95 super RON Research Octane Number = Anti-detonation rating of the petrol. Performance Maximum speed in km/h...
  • Page 278 Description of specifications Petrol engine 1.0 55 kW (75 PS) Engine specifications Power output in kW (PS) 55 (75)/ 6200 Maximum torque in Nm at rpm 95/ 3000-4300 No. of cylinders/capacity in cm 3/ 999 Fuel 95 super RON Research Octane Number = Anti-detonation rating of the petrol. Performance Maximum speed in km/h...
  • Page 279 Description of specifications Petrol engine 1.0 55 kW (75 CV) Ecomotive Engine specifications Power output in kW (PS) 55 (75)/6200 Maximum torque in Nm at rpm 95/3000-4300 No. of cylinders/capacity in cm 3/999 Fuel 95 super RON Research Octane Number = Anti-detonation rating of the petrol. Performance Maximum speed in km/h...

  • Page 280: Dimensions

    Description of specifications Dimensions Longitude 3557 mm Width 1641 – 1645 mm Height, unladen 1478 – 1489 mm Wheelbase 2420 mm Turning circle diameter approx. 9.8 m Front track width 1412 – 1428 mm Rear track width 1408 – 1424 mm Ground clearance with maximum au- 109 mm thorised load...

  • Page 281: Index

    Air recirculation ......163 Front seat ......51 Assisted braking systems .
  • Page 282 Index Emergency brake indicator in case of sud- locking and unlocking from the inside ..36 den braking ..... . . 232 "Safe"...
  • Page 283 See "Care of your vehicle" ... . . 188 Seat belts ......61 Brake system .
  • Page 284 Driving through water ....27 passenger seat ..... . . 14 See "Brake assist systems"...
  • Page 285 Index Electric windows Engine coolant ......180 Buttons ......43 Checking the level .
  • Page 286 Handbrake ......130 see Child seat ......76 In case of a breakdown Hazard warning lights system .
  • Page 287 Rear shelf ......102 see Child seat ......76 New tyres and wheels Lifting platform .
  • Page 288 Index On-board tools Parking aid ......144 Problems ......229 Components .
  • Page 289 Plates ......224 Seat belts ......57 Sitting position Replacement of parts .
  • Page 290 Index Snow chains ......211 Steering ......141 Parking aid .
  • Page 291 Index Temperature display Towing ......119, 267 Tyre pressure Liquid coolant temperature ... . . 23 Driving advice .
  • Page 292 Side view ......6 Seat belts ......58 anodized surfaces .
  • Page 293 Index Wheels and tyres ..... . . 201 Hub caps ......239 Avoiding damage .
  • Page 294 SEAT S.A. is permanently concerned about continuous development of its types and models. For this reason we ask you to under- stand, that at any given time, changes regarding shape, equipment and technique may take place on the car delivered. For this reason no right at all may derive based on the data, drawings and descriptions in this current handbook.

This manual is also suitable for:

Mii2012

Table of Contents
