2. Setup

Step 1 Setting the Hardware

This section describes how to set the board and plug it on your PC.
Remove CFs in advance before Windows is newly installed on the hard disk or before this product is
added to your PC on which Windows is currently installed.

Parts of the Board

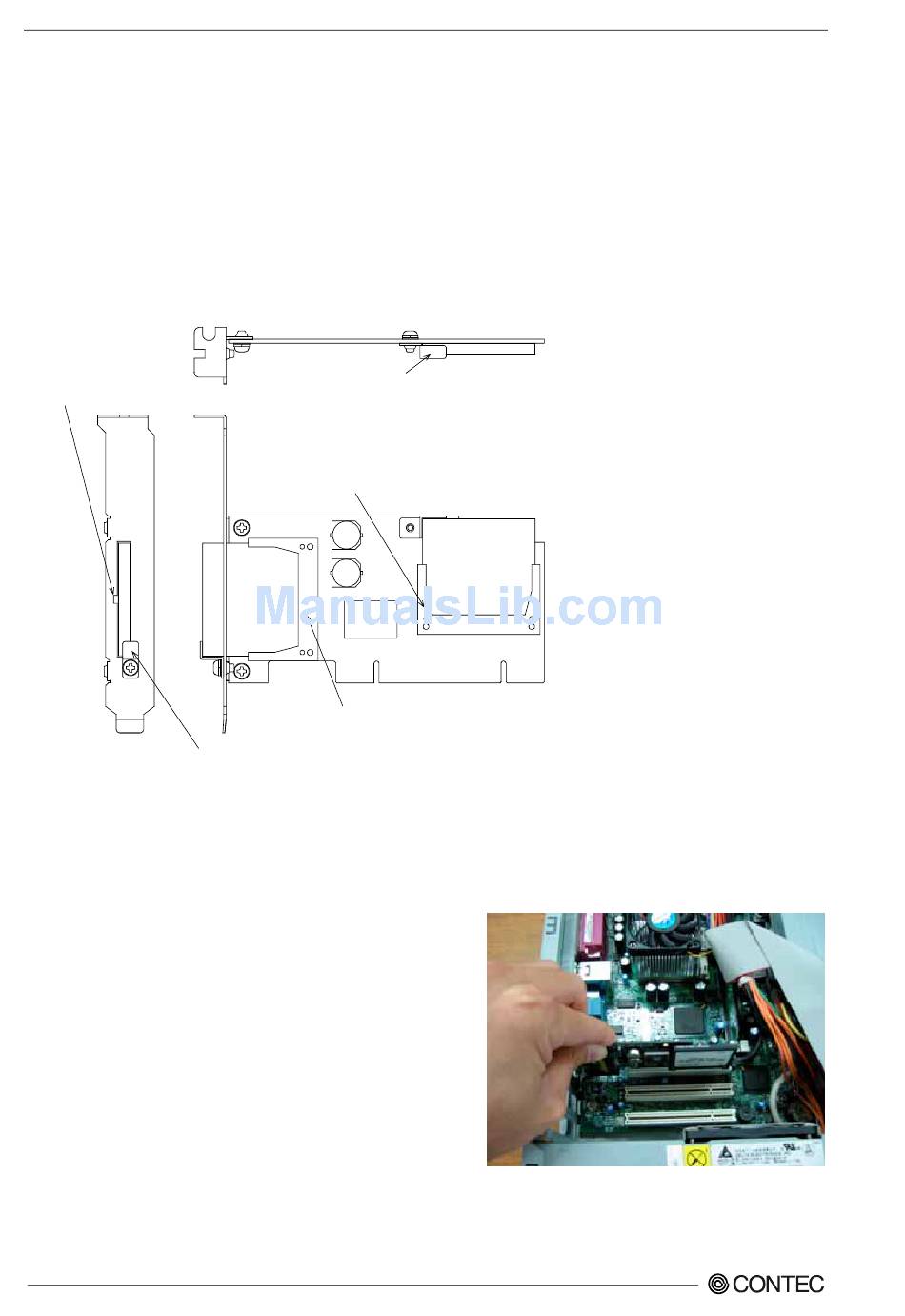

Figure 2.1. shows the names of major parts on the board.
CF Access LED
CF removal prevention fitting
Figure 2.1. Part Names

Plugging the Board

(1) If OS is preinstalled, shutdown the system before mounting this board.
(2) Unplug the power code of your PC from the wall
outlet.
(3) Remove the cover from the PC. For instructions on
how to remove, refer to the user's guide for your PC.
(4) Remove the PCI slot cover so that the board can be
mounted.
(5) If OS is DOS or a new OS is installed to the CF of
this product, proceed to step (6).
If Windows is newly installed to a hard disk or
Windows is currently installed on your PC, remove the mounted CF from this board.
(6) Plug the board into an expansion slot.
8
CF removal prevention fitting
CF Slot (Primary master)
CF Slot for expansion (Seconfary master)
CF has been
mounted.
PC-RSD Series
