4. About the RAID Building Software

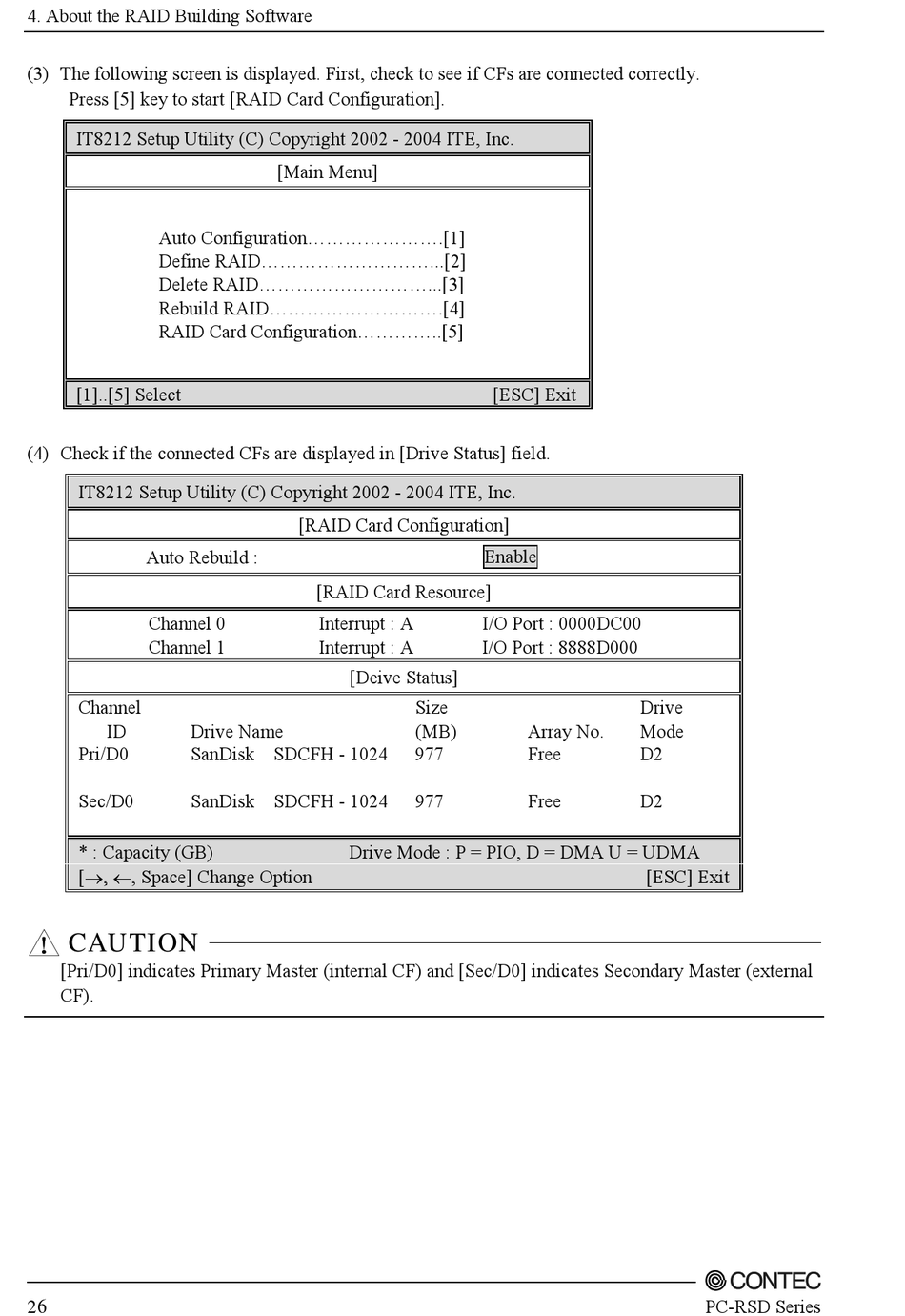

(3) The following screen is displayed. First, check to see if CFs are connected correctly.
Press [5] key to start [RAID Card Configuration].
IT8212 Setup Utility (C) Copyright 2002 - 2004 ITE, Inc.
Auto Configuration......................[1]
Define RAID..............................[2]
Delete RAID..............................[3]
Rebuild RAID............................[4]
RAID Card Configuration..............[5]
[1]..[5] Select
(4) Check if the connected CFs are displayed in [Drive Status] field.
IT8212 Setup Utility (C) Copyright 2002 - 2004 ITE, Inc.
Auto Rebuild :
Channel 0
Channel 1
Channel
ID Drive Name
Pri/D0 SanDisk SDCFH - 1024
Sec/D0 SanDisk SDCFH - 1024
* : Capacity (GB)
[→,  ← , Space] Change Option
CAUTION
[Pri/D0] indicates Primary Master (internal CF) and [Sec/D0] indicates Secondary Master (external
CF).
26
[Main Menu]
[RAID Card Configuration]
[RAID Card Resource]
Interrupt : A
Interrupt : A
[Deive Status]
Size
(MB)
977
977
Drive Mode : P = PIO, D = DMA U = UDMA
[ESC] Exit
Enable
II/O Port : 0000DC00
I/O Port : 8888D000
Drive
Array No. Mode
Free D2
Free D2
[ESC] Exit
