(7) Attach the board bracket to the PC with a screw.
(8) If OS is DOS or a new OS is installed to the CF of this product, check if the CF is mounted on this
product and then put the cover back into place. If Windows is newly installed to a hard disk or
this product is added to the PC on which Windows is currently installed, proceed to "Step 2
Installing the Hardware", mount the CF on the slot where it was originally mounted on and then put
the cover back into place.
(9) If OS is DOS, after completing the board mounting, turn on the PC. A message saying "IT8212
RAID... " will be displayed after a period of time. At this time, RAID setting is not performed, so
continue the startup by pressing [Esc] key. Without pressing [Esc], the status will become startup
status after a period of time. After the startup, this product can be used as an IDE device.

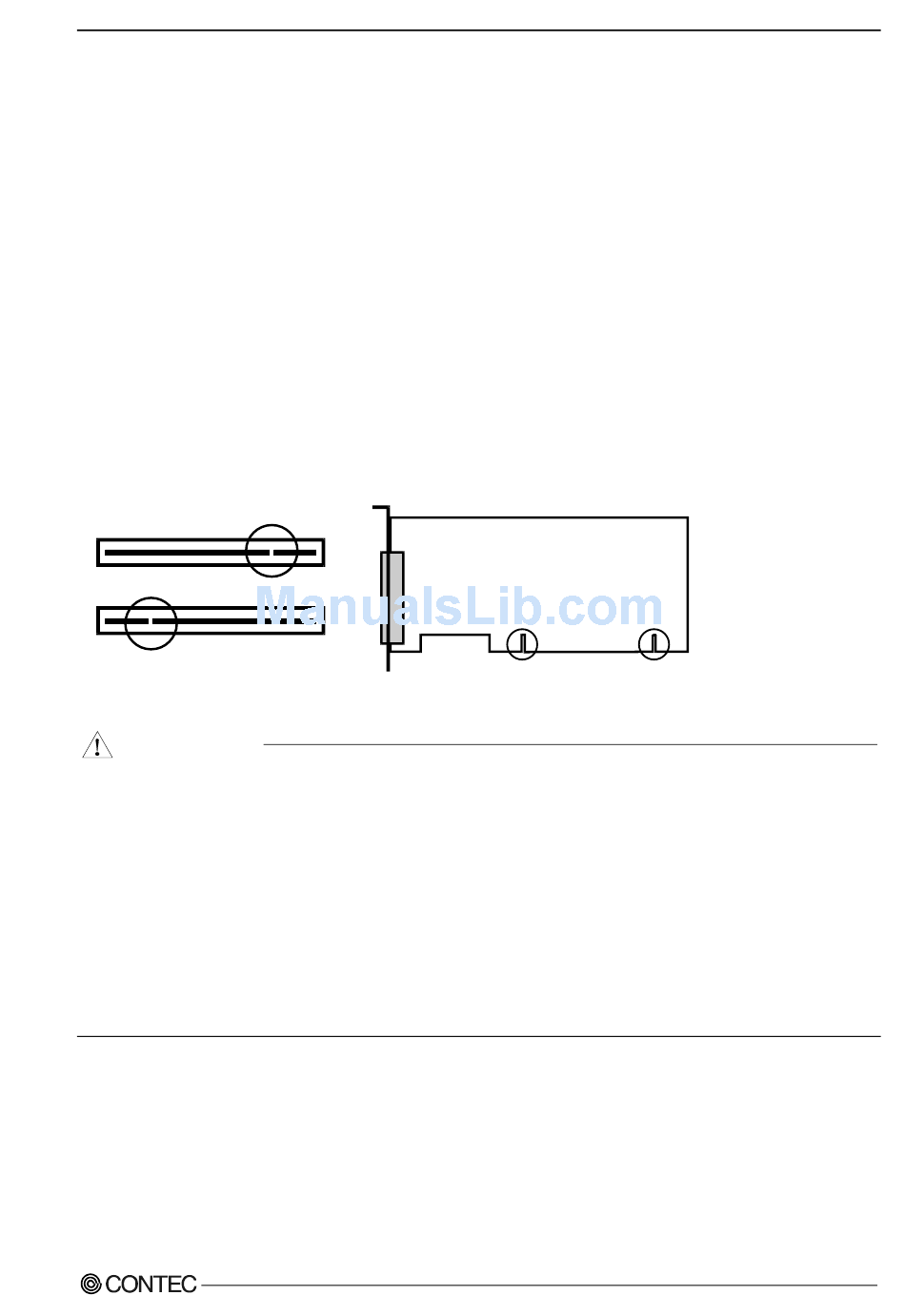

Applicable PCI bus slots
PCI bus slots used in PCs have keys to prevent 5V and 3.3V PCI bus boards from being accidentally
plugged into wrong bus slots. This board can be plugged into both of the 5V and 3.3V PCI bus slots.
<PCI bus slot>
5-V PCI bus slot
3.3-V PCI bus slot
3.3V key
CAUTION
- Do not touch the board's metal plated terminals (edge connector) with your hands.
Otherwise, the board may malfunction, overheat, or cause a failure.
If the terminals are touched by someone's hands, clean the terminals with industrial alcohol.
- Do not install or remove the board to or from the slot while the computer's power is turned on.
Otherwise, the board may malfunction, overheat, or cause a failure.
Doing so could cause trouble. Be sure that the personal computer or the I/O expansion unit power is
turned off.
- Make sure that your PC or expansion unit can supply ample power to all the boards installed.
Insufficiently energized boards could malfunction, overheat, or cause a failure.
- Power supply from the PCI bus slot at +5V is required.
PC-RSD Series
<PCI bus board>
5V key
A :
Slit for 5-V PCI bus slot
B :
Slit for 3.3-V PCI bus slot
B A
2. Setup
