2. Setup

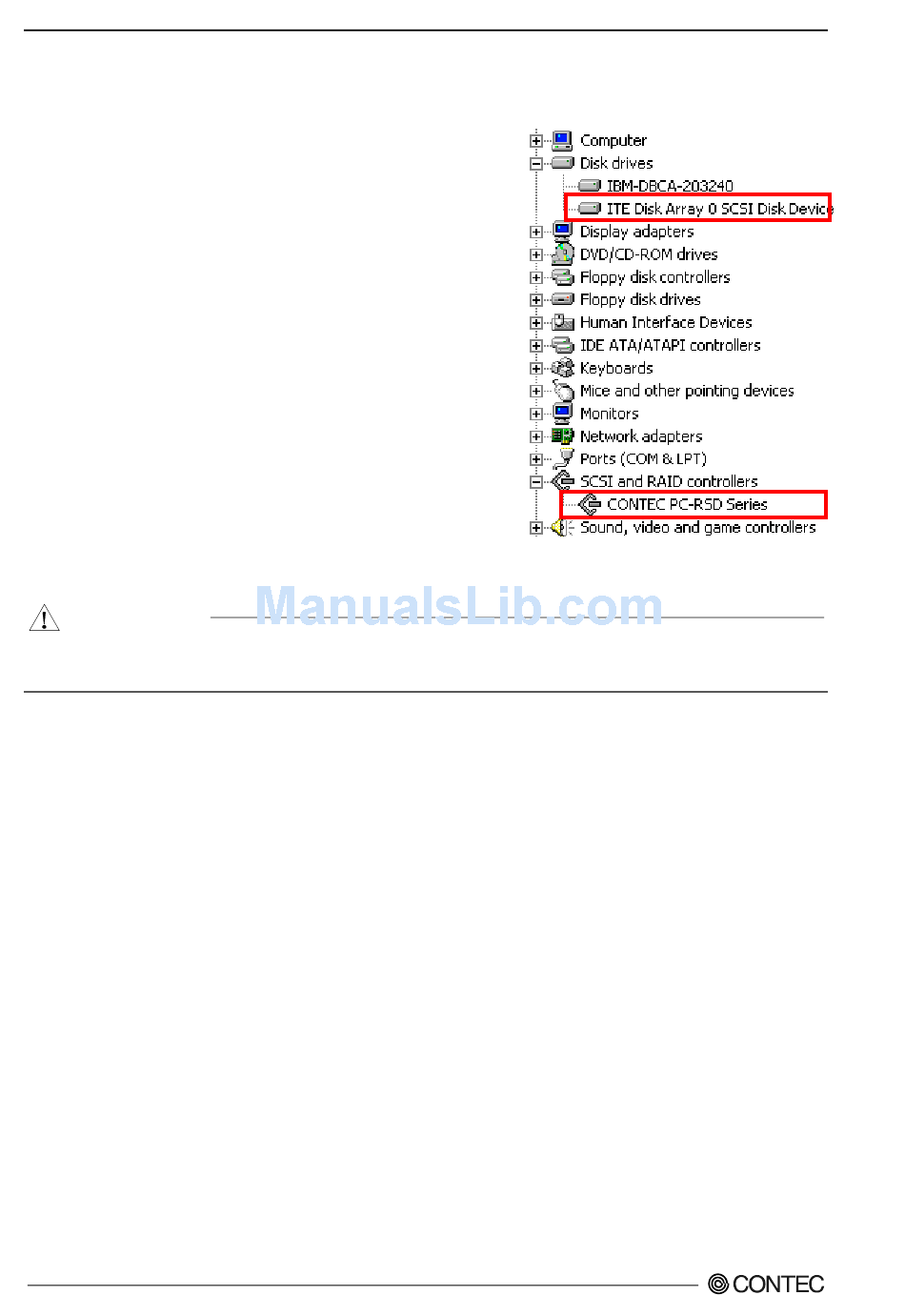

Check Method of Hardware Install Completion

(1) Click the [Start] button on the left side of task bar and

then double click the [System] from the

[Setting]→[Control Panel].

(2) When the [System propaties] is displayed, click the

[Hardware] tab and then click the [Device Manager].

(3) Check if the board name has been registered correctly in

[SCSI and RAID controllers].

(4) Check if [ITE Disk Array 0 SCSI Disk Device] has been

registered in [Disk Drives].

After checking that it has been registered for disk drive, you can now use it as a disk drive. The drive

mapping depends on your PC conditions (BIOS setting and IDE device connection status).

CAUTION

When formatting a CF in Windows XP, do not format it as "dynamic disk". Once formatted as

"dynamic disk", the CF cannot be used on other PCs or OSs.

PC-RSD Series
