4. About the RAID Building Software

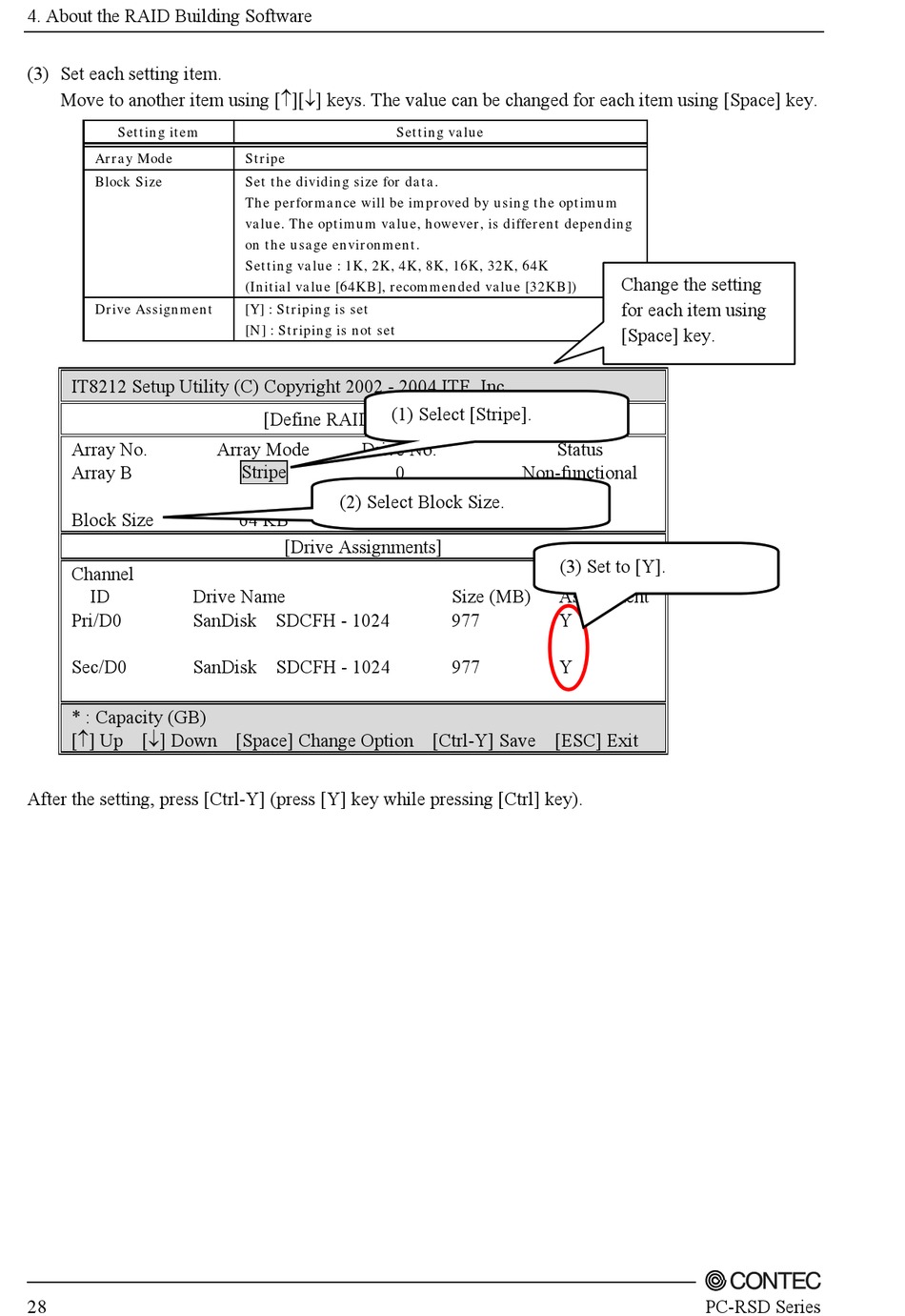

(3) Set each setting item.
Move to another item using [↑][↓] keys. The value can be changed for each item using [Space] key.
Setting item
Array Mode
Block Size
Drive Assignment
IT8212 Setup Utility (C) Copyright 2002 - 2004 ITE, Inc.
Array No.
Array B
Block Size
Channel
ID Drive Name
Pri/D0 SanDisk SDCFH - 1024
Sec/D0 SanDisk SDCFH - 1024
* : Capacity (GB)
[↑] Up [↓] Down [Space] Change Option [Ctrl-Y] Save [ESC] Exit
After the setting, press [Ctrl-Y] (press [Y] key while pressing [Ctrl] key).
28
Stripe
Set the dividing size for data.
The performance will be improved by using the optimum
value. The optimum value, however, is different depending
on the usage environment.
Setting value : 1K, 2K, 4K, 8K, 16K, 32K, 64K
(Initial value [64KB], recommended value [32KB])
[Y] : Striping is set
[N] : Striping is not set
[Define RAID Sub-Menu]
Array Mode Drive No.
Stripe
(2) Select Block Size.
64 KB
[Drive Assignments]
Setting value
(1) Select [Stripe].
Status
0 Non-functional
(3) Set to [Y].
Size (MB) Assignment
977 Y
977 Y
Change the setting
for each item using
[Space] key.
