• PIKprog+ can supply programmed device only, but target
system cannot supply PIKprog+.
• PIKprog+ apply programming voltage to target device and
checks his value (target system can modify programming
voltage). If the programming voltage is different as
expected, no action with target device will be executed.

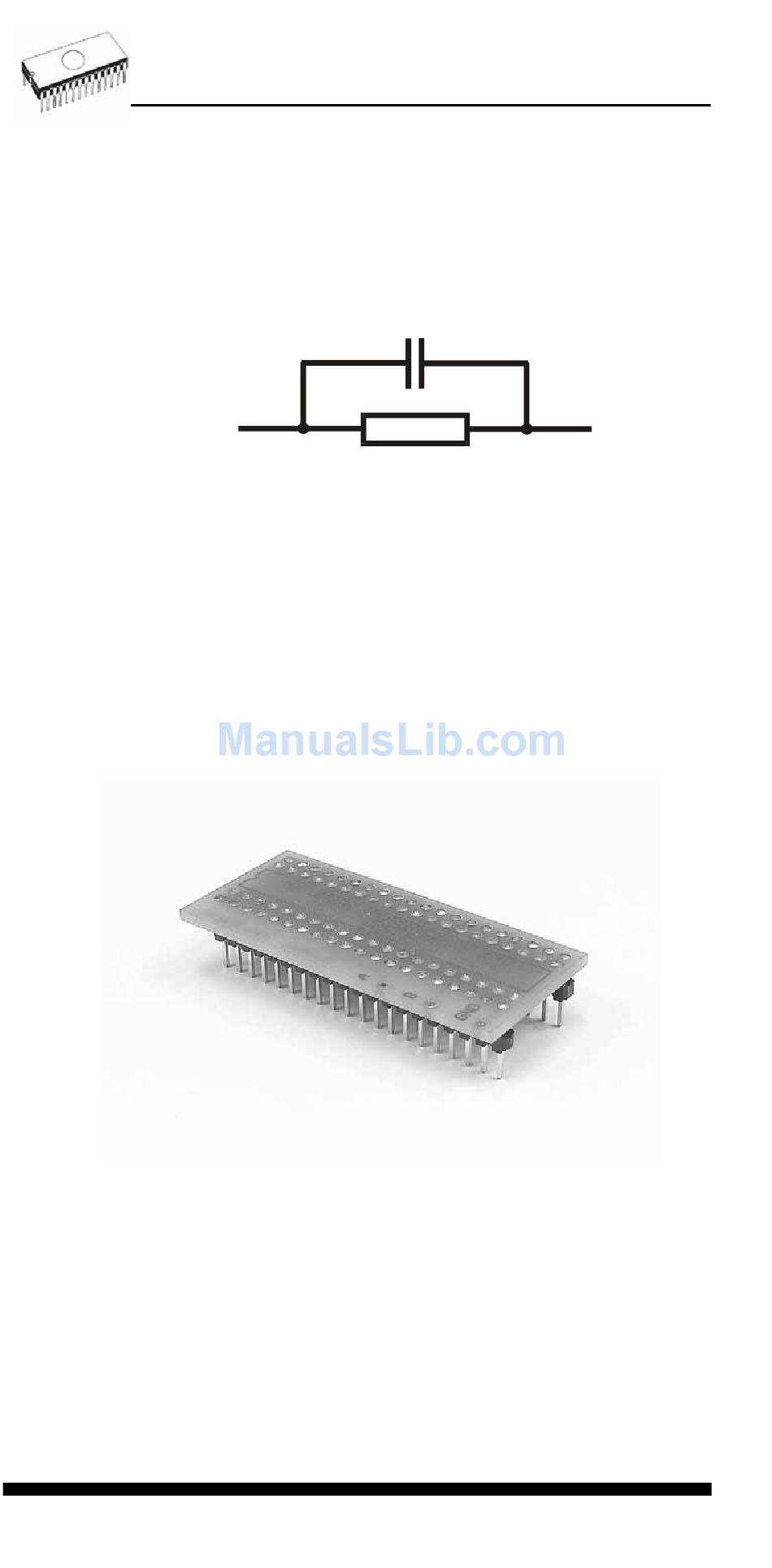

Note: H/L/read PIKprog+ driver

Selftest and calibration

If you feel that your programmer does not react according to
your expectation, please run the programmer selftest using
Diagnostic POD, enclosed with the standard delivery package.
For optimal results with programmer we recommend you
undertake every 6 months, an extended test and to check the
calibration. See instructions for selftest in the Diagnostics
menu of PG4UW.

Technical specification

HARDWARE
Socket, pin drivers and DACs
• FPGA based IEEE 1284 slave printer port, up to 1MB/s
transfer rate
H/L/read
driver
96
ELNEC s. r. o.
1n0
ISP
connector
1k3
