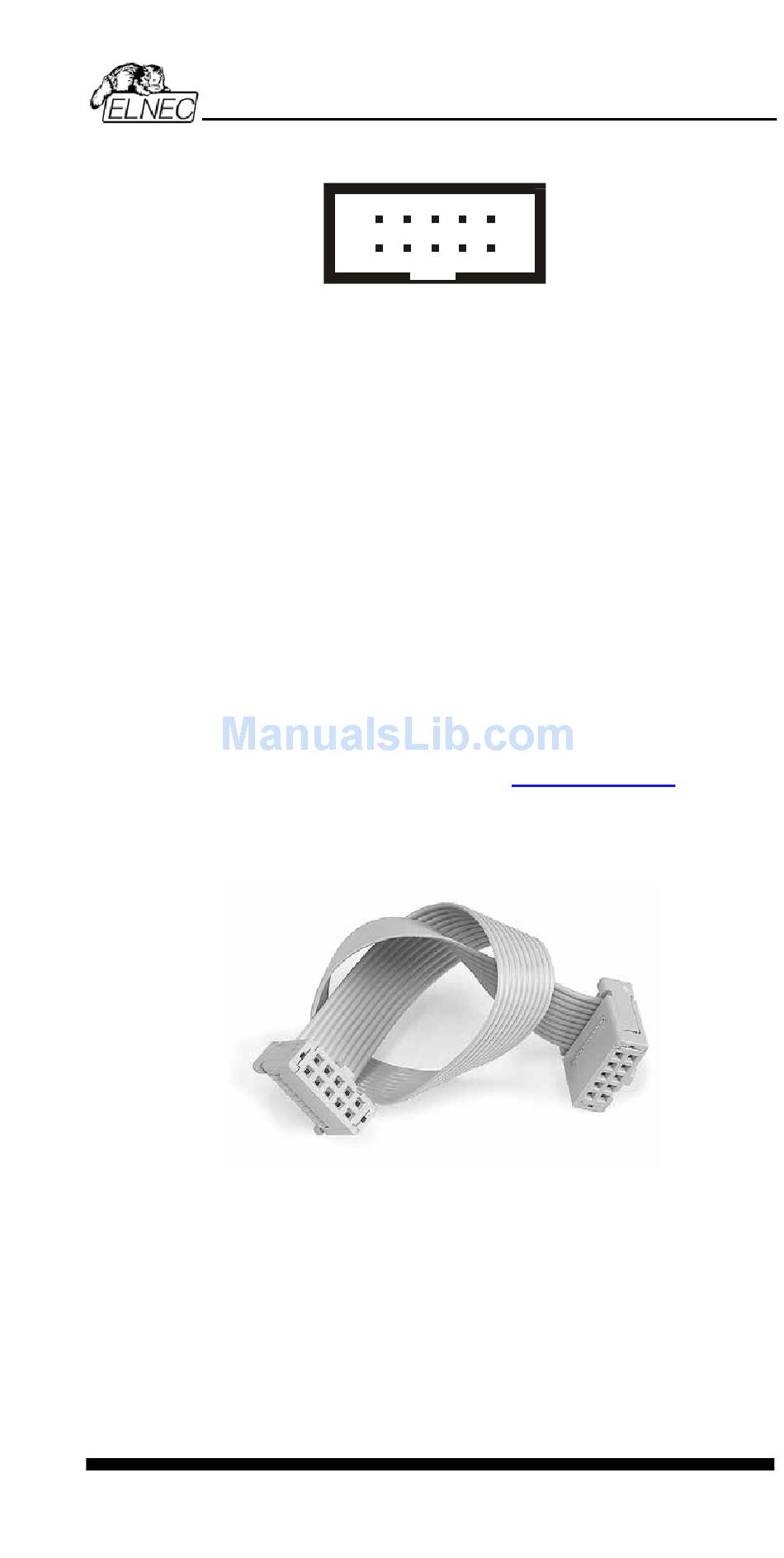

Description of PIKprog+ ISP connector
Front view at ISP connector of programmer.
Pin
1
2
3, 10
4, 6, 8
5
7,9
Specification of ISP connector pins depends on the device,
which you want to program. You can find it in the control SW
for programmer (PG4UW), menu Device / Device Info
(Ctrl+F1). Be aware, the ISP programming way of respective
device must be selected. It is indicated by (ISP) suffix after
name of selected device.
These specifications correspond with Microchip application
note: In-Circuit Serial Programming™(ICSP™) Guide. Used
application note you may find on www.elnec.com, section
application notes.
Note: Pin no. 1 is signed by triangle scratch on ISP cable
connectors.
Warnings:
• When you use PIKprog+ as ISP programmer, don't insert
device to ZIF socket.
• When you program devices in ZIF socket, don't insert
ISP cable to ISP connector.
• Use only attached ISP cable. When you use other ISP
cable (other material, length...), programming may occur
unreliable.
4 6
2
1 3 5
Capability of ISP connector pins
Description
VCCP for target device, with sense
H/L/read, GND
H/L/read, VPP
H/L/read
NC
GND
ISP cable of PIKprog+
95
8 10
7
9
PIKprog+
