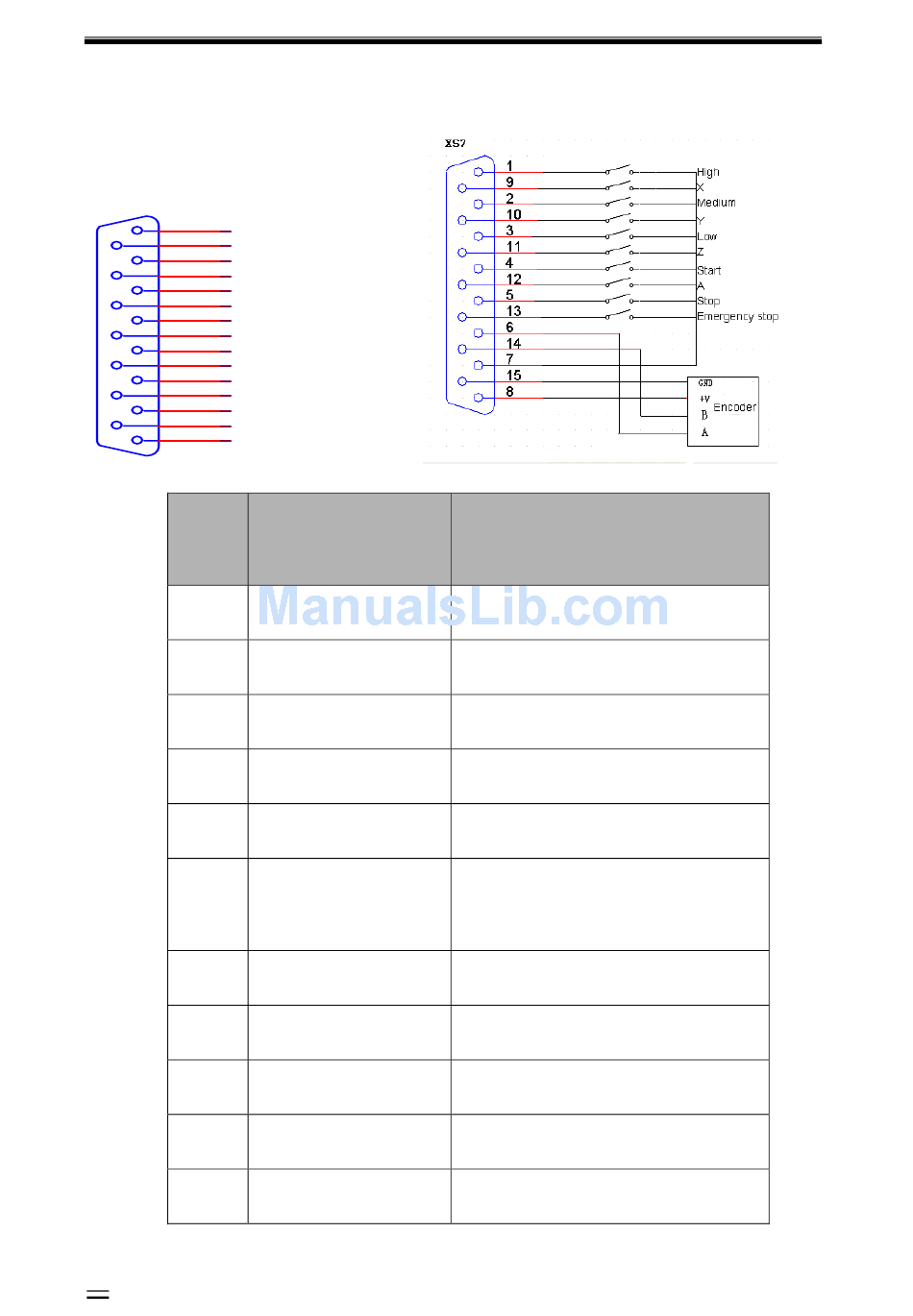

11.2.4. Handheld box interface (XS7)
1
IN24
9
IN25
2
IN26
10
IN27
3
IN28
11
IN29
4
IN30
12
IN31
5
IN32
13
IN33
6
HA
14
HB
7
24V-
15
5V-
8
5V+
Wire
Definition
No.
1 (IN24) gear switch
2 (IN26) gear switch
3 (IN28) gear switch
4 (IN30) button
5 (IN32) button
7 24V‐
9 (IN25) axis selection
10 (IN27) axis selection
11 (IN29) axis selection
12 (IN31) axis selection
13 (IN33) button
153
BZ001M056A ADT‐DK300A/400A Engraving Machine
Function
0.1 gear ‐‐‐ High speed
0.01 gear ‐‐‐ Medium speed
0.001 gear ‐‐‐ Low speed
Cycle start
Emergency stop
Negative pole of internally provided 24V
power supply
X axis
Y axis
Z axis
A axis
Emergency stop
