9.4
The control gives its reference value to the frequency inverter via the object 0x6042/0
target velocity in the RxPDO used and receives the information about its actual value
back via the object 0x6044/0 control effort in the TxPDO used.
The use of the reference/actual value channel depends on the set configuration
(control system). The actual value is generated from the correct source depending on
the control system used.
Note:
The reference value for the frequency inverter from the object 0x6042/0 target
velocity is included via the reference line value. This reference value is combined with
the internal reference value from the reference frequency value channel in the input
of the ramp function. Reference frequency value channel: see operating instructions.
The internal reference value from the reference frequency value channel and the
reference line value can be fed to the ramp individually or as an added variable.
Setting is done via the data set change-over capable parameter
No.
434 Ramp set-point
0 -
1 -
2 -
06/05
06/05

Reference value / actual value

The reference value in the object 0x6042/0 target velocity and the actual
value in the object 0x6044/0 control effort are interpreted by the control
in the notation xxxx RPM. Conversion into a frequency (reference value)
or from a frequency (actual value) is done in the frequency inverter.
The object pole number is converted inside the product and related to the
No. of pole pairs
parameter
value of the number of pole pairs is to be doubled for the object
0x604D/0 pole number.

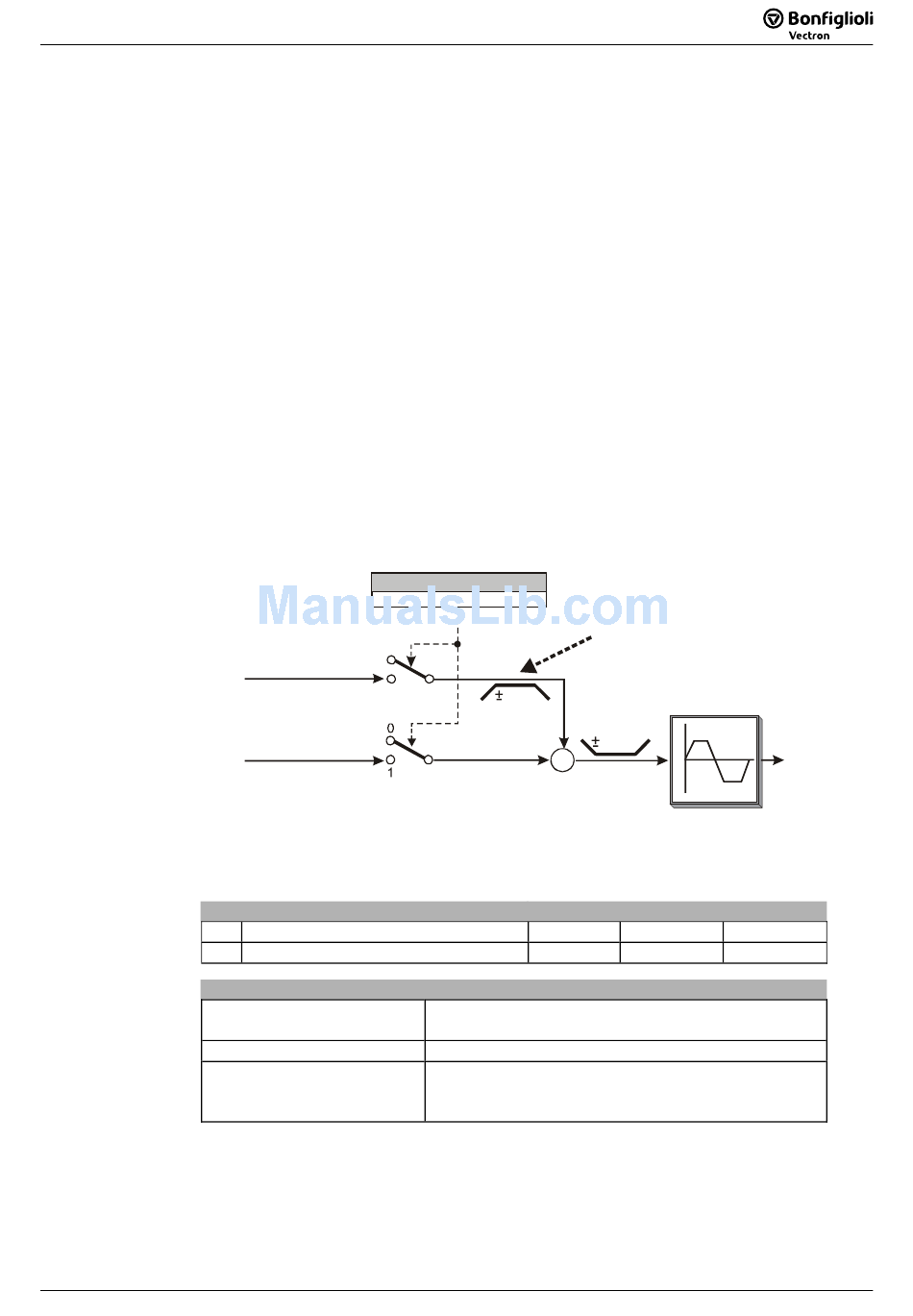

Ramp set-point
operation mode 434
0
reference
line value
1
internal reference
frequency
Parameter
Description
Operation mode
Internal reference
frequency value
Reference line value
Internal reference
frequency value
+ reference line value
373 in the first data set. The parameter
please read the note !
fmin
+
Min.
1
Function
Reference value from the sources of the percentage of
reference frequency value channel
Reference value via a communication interface
Sum of internal reference frequency value
and reference line value
frequency
ramp
fmax
Ramp set-point
Setting
Max. Fact. sett.
3 3
434.
