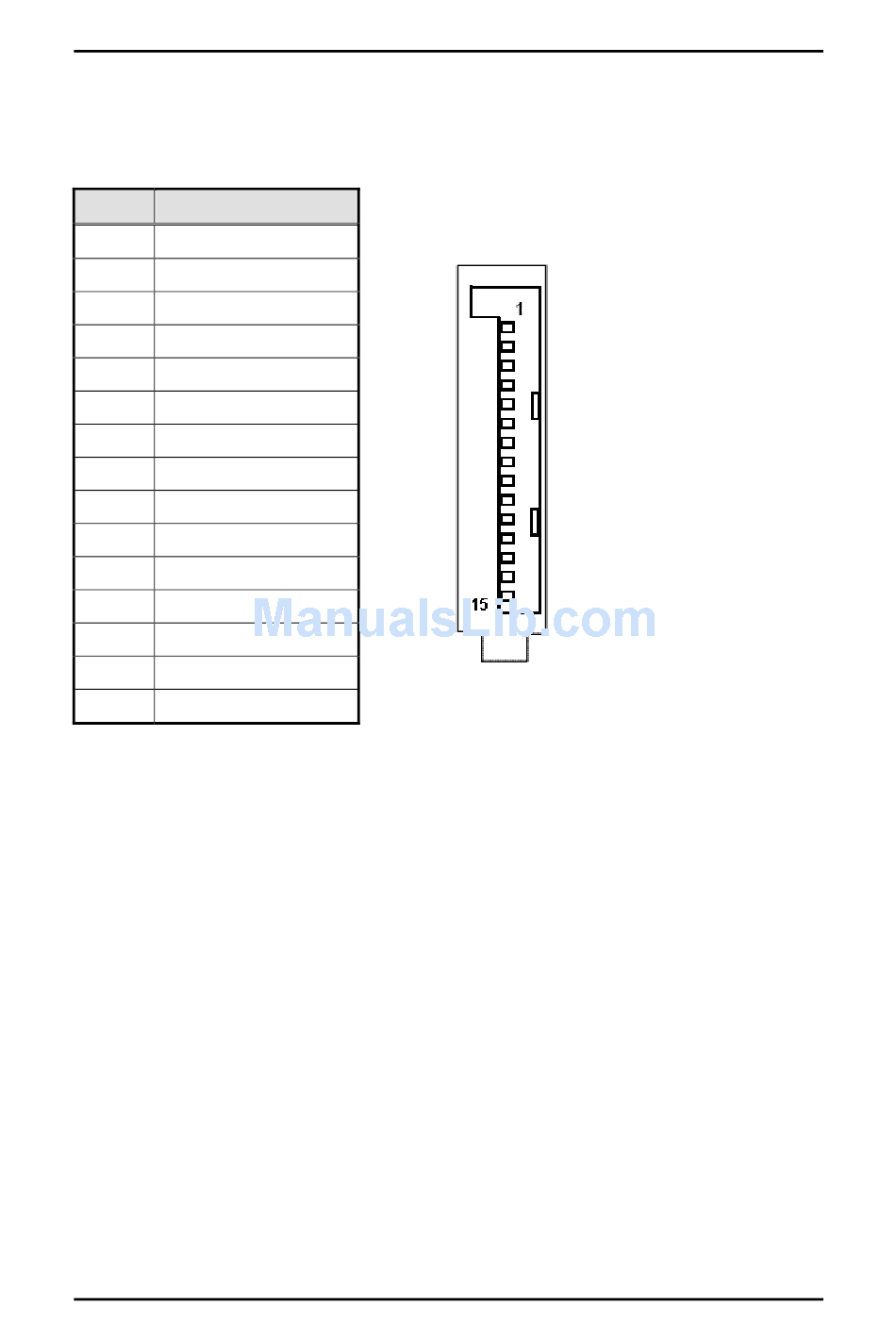

3.3.11 SATA Power Connector
The SATA connector is for high-speed SATA interface ports and they can be
connected to hard disk devices.
Pin
Signal
1
+3.3VDC
2
+3.3VDC
3
+3.3VDC
4
COM
5
COM
6
COM
7
+5VDC
8
+5VDC
9
+5VDC
10
COM
11
COM
12
COM
13
+12VDC
14
+12VDC
15
+12VDC
Jumper Setting & Connector
eBOX622-830-FL Series User's Manual
43
