eBOX622-830-FL Series User's Manual

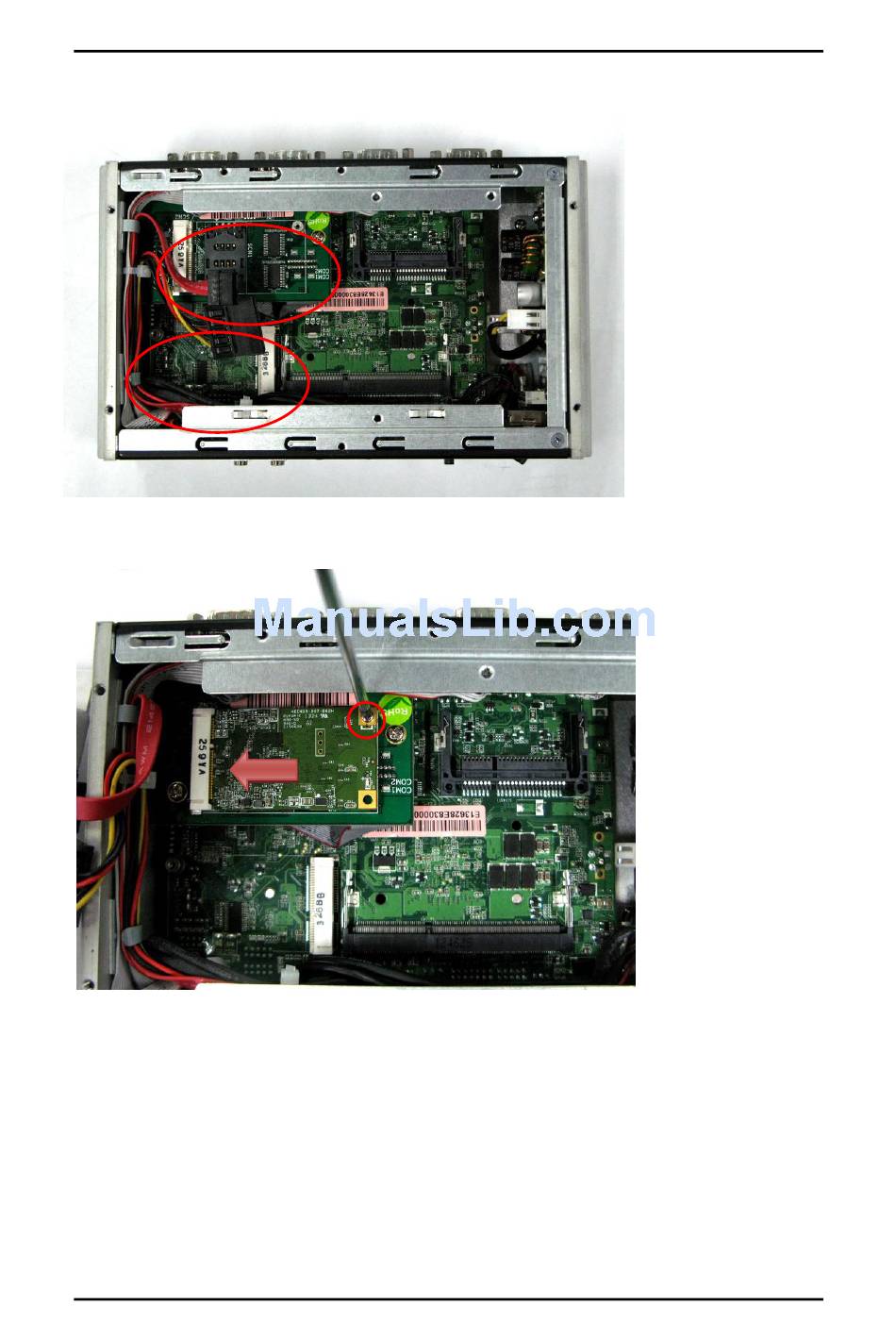

Step 4 Remove the HDD bracket to locate the two Express Mini Card slots.
Mini Card Slot 2
Mini Card Slot 1
Step 5 Slide Mini card into Mini Card slot with caution and fasten screw of
Express Mini Card.
Step 6 Assembly the Top Cover back and fasten all screws.
22
Hardware Installation
