AXIOMTEK eBOX627-312-FL Series Quick Installation Manual

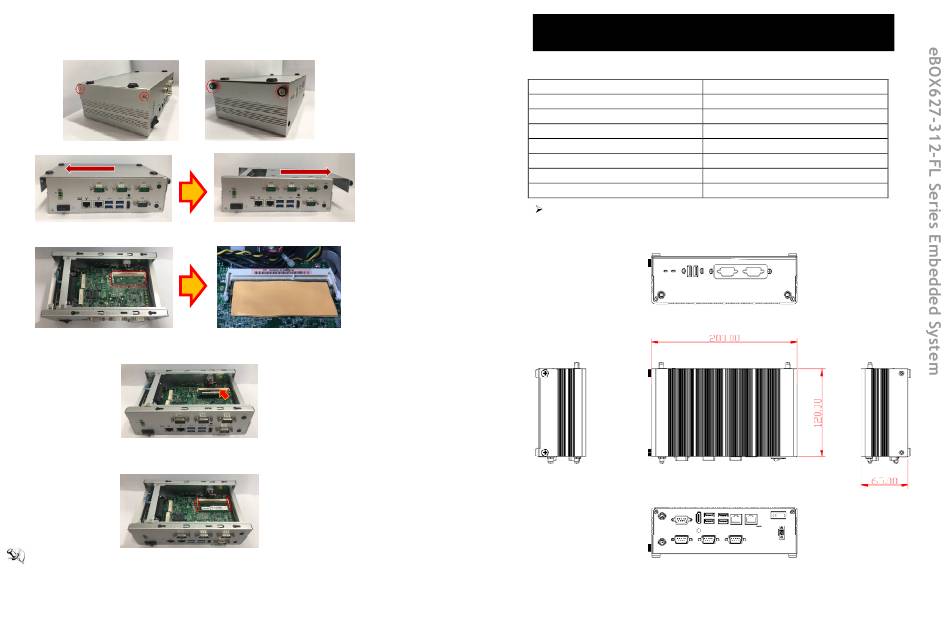

Installing the Memory Module
Step 1 Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the side
of the system, and then loosen four screws.
Step 3 Remove both of the bottom cover and HDD/SSD cover.
Step 4 Locate the DDR3L SO-DIMM slot, and apply the thermal pad
on the board.
Step 5 Holding the DDR3L SO-DIMM at a 30 degree angle up from
horizontal, slowly insert the golden fingers into the DDR3L
SO-DIMM slot until it is fully inserted in.
Step 6 Press it down gently, until it is firmly seated by locking two
latches on the sides.
Note: Please be informed that you can get more detail information
in eBOX627-312-FL user's manual.
4 ©Copyright 2018 Axiomtek Co., Ltd.
Version A1 July 2018
Printed in Taiwan
9416K627000E
eBOX627-312-FL Quick Installation Guide
Packing List
System Unit x 1 DVD/CD x 1
Quick Installation Guide x 1 Pre-installed Foot Pad x 4
Screws Pack x 1 2-pin Terminal Block Connector x 1
DRAM Thermal Pad x 1 HDMI Cable Locking Clip x 1
SSD/HDD (Optional) Wall-mount Bracket (Optional)
mSATA (Optional) VESA Mount Kit (Optional)
Mini Card Modules (Optional) Din-rail Kit (Optional)
DDR3L Memory (Optional) WIFI / 3G / LTE Modules (Optional)
Do not try to apply power to the system if any damaged components.
Dimensions
©Copyright 2018 Axiomtek Co., Ltd.
Version A1 July 2018
Printed in Taiwan
9416K627000E
1
