AXIOMTEK eBOX625-312-FL Series Quick Installation Manual

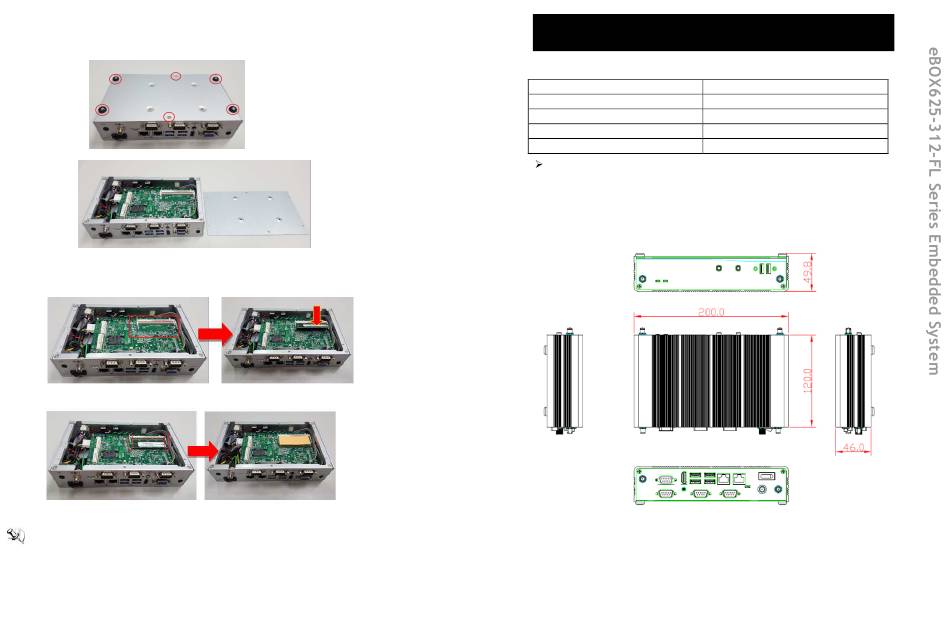

Installing of the Memory Module
Step 1 Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the side of
the system, and then loosen two screws and four foot pads.
Step 3 Remove both of the bottom cover.
Step 4 Locate the DDR3L SO-DIMM slot, holding the DDR3L SO-DIMM
at a 30 degree angle up from horizontal; slowly insert the
golden fingers into the DDR3L SO-DIMM slot until it is fully
inserted in.
Step 5 Press it down gently, until it is firmly seated by locking two
latches on the sides and place the thermal pad on the DRAM.
Step 6 Put the bottom cover back and fasten all screws.
Note: Please be informed that you can get more detail information
in eBOX625-312-FL user's manual.
4
©Copyright 2019 Axiomtek Co., Ltd.
Version A1 Jan 2019
Printed in Taiwan
9416K625030E
eBOX625-312-FL Quick Installation Guide
Packing List
System Unit x 1 DRAM Thermal Pad x 1
Quick Installation Guide x 1 HDMI Cable Locking Clip (Optional)
DVD/CD x 1 12V/60W power adapter (Optional)
Screws Pack x 1 Power cord (Optional)
Pre-installed Foot Pad x 4
Do not try to apply power to the system if any damaged components.
Dimensions
©Copyright 2019 Axiomtek Co., Ltd.
Version A1 Jan 2019
Printed in Taiwan
9416K625030E
1
