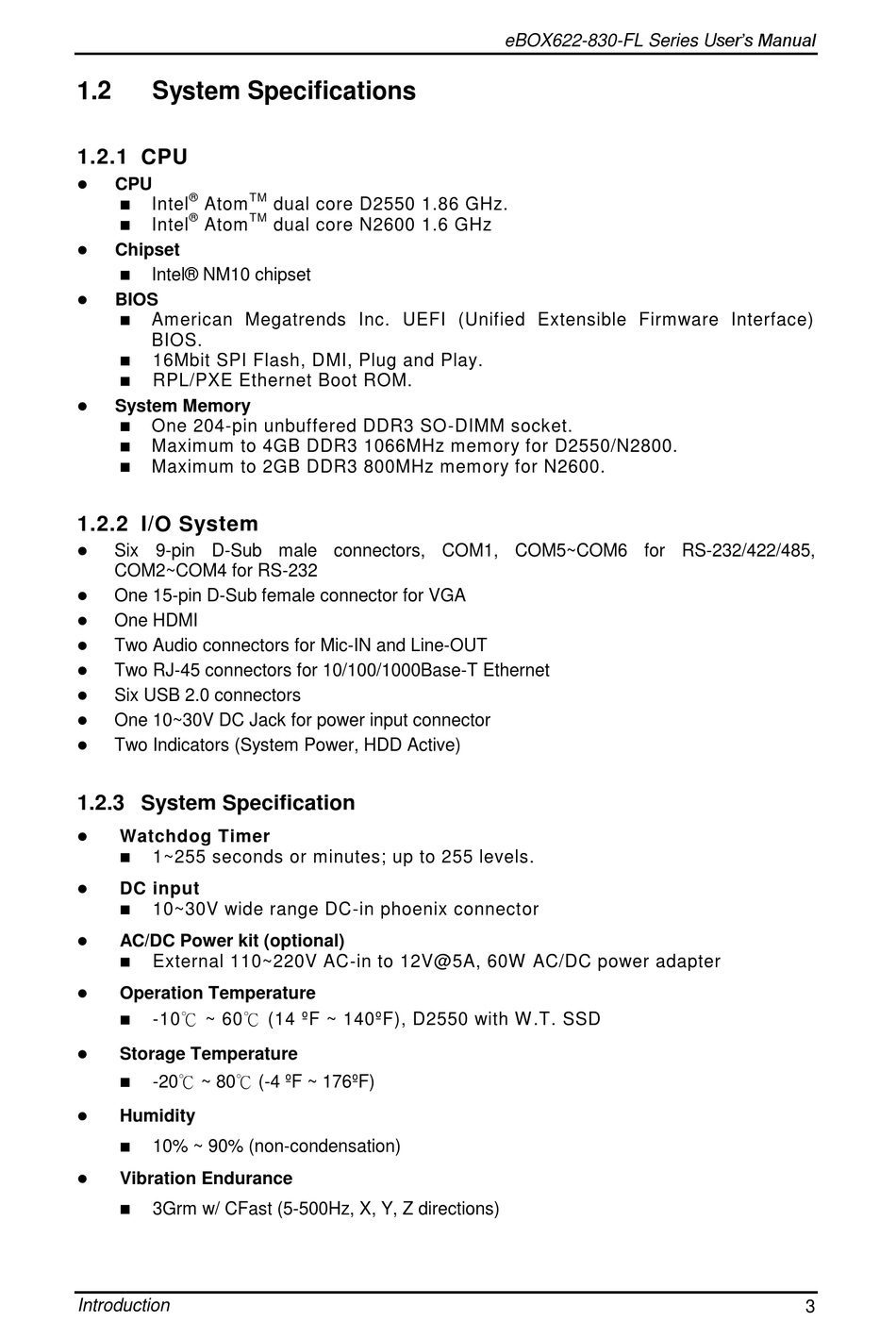

1.2

System Specifications

1.2.1 CPU

 CPU
®
 Intel Atom
®
 Intel Atom
 Chipset
 Intel® NM10 chipset
 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface)
BIOS.
 16Mbit SPI Flash, DMI, Plug and Play.
 RPL/PXE Ethernet Boot ROM.
 System Memory
 One 204-pin unbuffered DDR3 SO-DIMM socket.
 Maximum to 4GB DDR3 1066MHz memory for D2550/N2800.
 Maximum to 2GB DDR3 800MHz memory for N2600.

1.2.2 I/O System

 Six 9-pin D-Sub male connectors, COM1, COM5~COM6 for RS-232/422/485,
COM2~COM4 for RS-232
 One 15-pin D-Sub female connector for VGA
 One HDMI
 Two Audio connectors for Mic-IN and Line-OUT
 Two RJ-45 connectors for 10/100/1000Base-T Ethernet
 Six USB 2.0 connectors
 One 10~30V DC Jack for power input connector
 Two Indicators (System Power, HDD Active)

1.2.3 System Specification

 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 DC input
 10~30V wide range DC-in phoenix connector
 AC/DC Power kit (optional)
 External 110~220V AC-in to 12V@5A, 60W AC/DC power adapter
 Operation Temperature
 -10℃ ~ 60℃ (14 ºF ~ 140ºF), D2550 with W .T. SSD
 Storage Temperature
 -20℃ ~ 80℃ (-4 ºF ~ 176ºF)
 Humidity

10% ~ 90% (non-condensation)

Vibration Endurance
 3Grm w/ CFast (5-500Hz, X, Y, Z directions)
Introduction
TM
dual core D2550 1.86 GHz.
TM
dual core N2600 1.6 GHz
eBOX622-830-FL Series User's Manual
3
