B Adjusting the Color Temperature — COLOR TEMP ADJ Menu

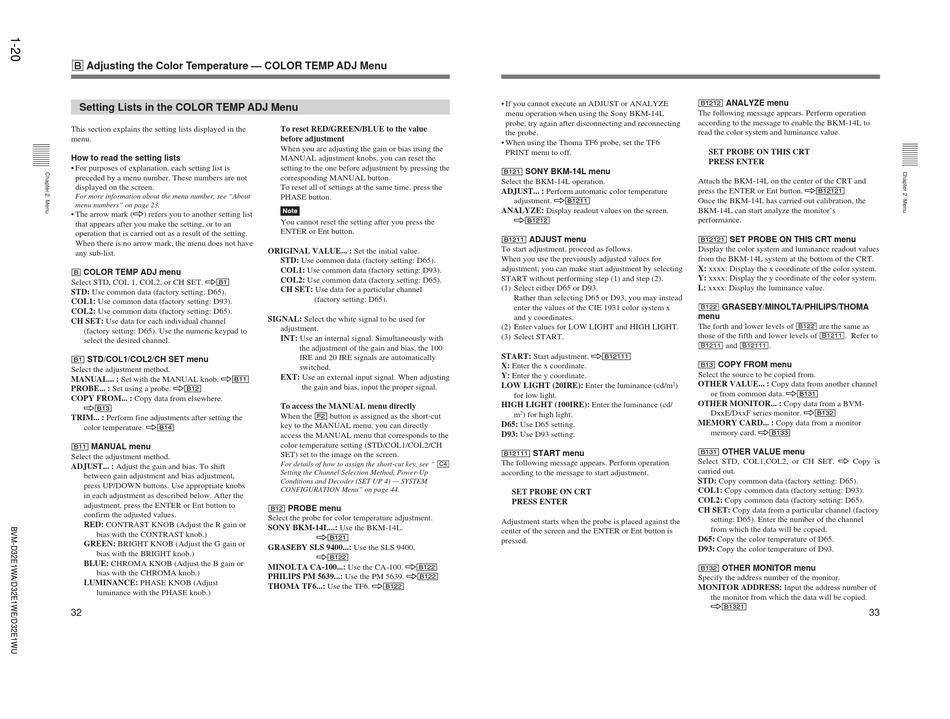

Setting Lists in the COLOR TEMP ADJ Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 23.
• The arrow mark (÷) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not have
any sub-list.
[B] COLOR TEMP ADJ menu
Select STD, COL 1, COL2, or CH SET. ÷[B1]
STD: Use common data (factory setting: D65).
COL1: Use common data (factory setting: D93).
COL2: Use common data (factory setting: D65).
CH SET: Use data for each individual channel
(factory setting: D65). Use the numeric keypad to
select the desired channel.
[B1] STD/COL1/COL2/CH SET menu
Select the adjustment method.
MANUAL... : Set with the MANUAL knob. ÷[B11]
PROBE... : Set using a probe. ÷[B12]
COPY FROM... : Copy data from elsewhere.
÷[B13]
TRIM... : Perform fine adjustments after setting the
color temperature. ÷[B14]
[B11] MANUAL menu
Select the adjustment method.
ADJUST... : Adjust the gain and bias. To shift
between gain adjustment and bias adjustment,
press UP/DOWN buttons. Use appropriate knobs
in each adjustment as described below. After the
adjustment, press the ENTER or Ent button to
confirm the adjusted values.
RED: CONTRAST KNOB (Adjust the R gain or
bias with the CONTRAST knob.)
GREEN: BRIGHT KNOB (Adjust the G gain or
bias with the BRIGHT knob.)
BLUE: CHROMA KNOB (Adjust the B gain or
bias with the CHROMA knob.)
LUMINANCE: PHASE KNOB (Adjust
luminance with the PHASE knob.)
32
To reset RED/GREEN/BLUE to the value
before adjustment
When you are adjusting the gain or bias using the
MANUAL adjustment knobs, you can reset the
setting to the one before adjustment by pressing the
corresponding MANUAL button.
To reset all of settings at the same time, press the
PHASE button.
Note
You cannot reset the setting after you press the
ENTER or Ent button.
ORIGINAL VALUE... : Set the initial value.
STD: Use common data (factory setting: D65).
COL1: Use common data (factory setting: D93).
COL2: Use common data (factory setting: D65).
CH SET: Use data for a particular channel
(factory setting: D65).
SIGNAL: Select the white signal to be used for
adjustment.
INT: Use an internal signal. Simultaneously with
the adjustment of the gain and bias, the 100
IRE and 20 IRE signals are automatically
switched.
EXT: Use an external input signal. When adjusting
the gain and bias, input the proper signal.
To access the MANUAL menu directly
When the [F2] button is assigned as the short-cut
key to the MANUAL menu, you can directly
access the MANUAL menu that corresponds to the
color temperature setting (STD/COL1/COL2/CH
SET) set to the image on the screen.
For details of how to assign the short-cut key, see " [C4]
Setting the Channel Selection Method, Power-Up
Conditions and Decoder (SET UP 4) — SYSTEM
CONFIGURATION Menu" on page 44.
[B12] PROBE menu
Select the probe for color temperature adjustment.
SONY BKM-14L...: Use the BKM-14L.
÷[B121]
GRASEBY SLS 9400...: Use the SLS 9400.
÷[B122]
MINOLTA CA-100...: Use the CA-100. ÷[B122]
PHILIPS PM 5639...: Use the PM 5639. ÷[B122]
THOMA TF6...: Use the TF6. ÷[B122]
• If you cannot execute an ADJUST or ANALYZE
menu operation when using the Sony BKM-14L
probe, try again after disconnecting and reconnecting
the probe.
• When using the Thoma TF6 probe, set the TF6
PRINT menu to off.
[B121] SONY BKM-14L menu
Select the BKM-14L operation.
ADJUST... : Perform automatic color temperature
adjustment. ÷[B1211]
ANALYZE: Display readout values on the screen.
÷[B1212]
[B1211] ADJUST menu
To start adjustment, proceed as follows.
When you use the previously adjusted values for
adjustment, you can make start adjustment by selecting
START without performing step (1) and step (2).
(1) Select either D65 or D93.
Rather than selecting D65 or D93, you may instead
enter the values of the CIE 1931 color system x
and y coordinates.
(2) Enter values for LOW LIGHT and HIGH LIGHT.
(3) Select START.
START: Start adjustment. ÷[B12111]
X: Enter the x coordinate.
Y: Enter the y coordinate.
LOW LIGHT (20IRE): Enter the luminance (cd/m
2
)
for low light.
HIGH LIGHT (100IRE): Enter the luminance (cd/
m
2
) for high light.
D65: Use D65 setting.
D93: Use D93 setting.
[B12111] START menu
The following message appears. Perform operation
according to the message to start adjustment.
SET PROBE ON CRT
PRESS ENTER
Adjustment starts when the probe is placed against the
center of the screen and the ENTER or Ent button is
pressed.
[B1212] ANALYZE menu
The following message appears. Perform operation
according to the message to enable the BKM-14L to
read the color system and luminance value.
SET PROBE ON THIS CRT
PRESS ENTER
Attach the BKM-14L on the center of the CRT and
press the ENTER or Ent button. ÷[B12121]
Once the BKM-14L has carried out calibration, the
BKM-14L can start analyze the monitor's
performance.
[B12121] SET PROBE ON THIS CRT menu
Display the color system and luminance readout values
from the BKM-14L system at the bottom of the CRT.
X: xxxx: Display the x coordinate of the color system.
Y: xxxx: Display the y coordinate of the color system.
L: xxxx: Display the luminance value.
[B122] GRASEBY/MINOLTA/PHILIPS/THOMA
menu
The forth and lower levels of [B122] are the same as
those of the fifth and lower levels of [B1211]. Refer to
[B1211] and [B12111].
[B13] COPY FROM menu
Select the source to be copied from.
OTHER VALUE... : Copy data from another channel
or from common data. ÷[B131]
OTHER MONITOR... : Copy data from a BVM-
DxxE/DxxF series monitor. ÷[B132]
MEMORY CARD... : Copy data from a monitor
memory card. ÷[B133]
[B131] OTHER VALUE menu
Select STD, COL1,COL2, or CH SET. ÷ Copy is
carried out.
STD: Copy common data (factory setting: D65).
COL1: Copy common data (factory setting: D93).
COL2: Copy common data (factory setting: D65).
CH SET: Copy data from a particular channel (factory
setting: D65). Enter the number of the channel
from which the data will be copied.
D65: Copy the color temperature of D65.
D93: Copy the color temperature of D93.
[B132] OTHER MONITOR menu
Specify the address number of the monitor.
MONITOR ADDRESS: Input the address number of
the monitor from which the data will be copied.
÷[B1321]
33
