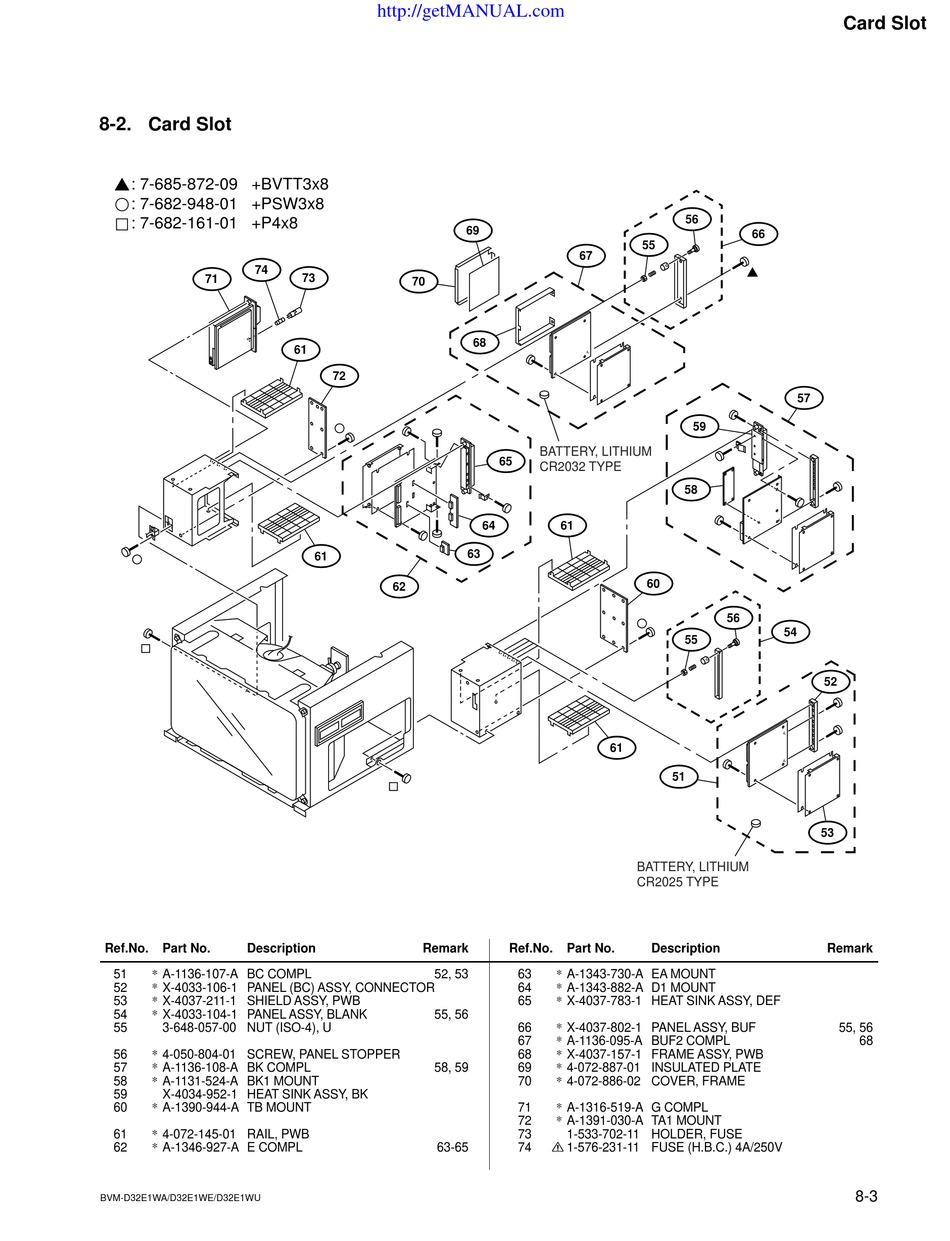

8-2. Card Slot

: 7-685-872-09 +BVTT3x8
: 7-682-948-01 +PSW3x8
: 7-682-161-01 +P4x8
74
71
Ref.No.
Part No.
Description
51
* A-1136-107-A BC COMPL
52
* X-4033-106-1 PANEL (BC) ASSY, CONNECTOR
53
* X-4037-211-1 SHIELD ASSY, PWB
54
* X-4033-104-1 PANEL ASSY, BLANK
55
3-648-057-00 NUT (ISO-4), U
56
* 4-050-804-01 SCREW, PANEL STOPPER
57
* A-1136-108-A BK COMPL
58
* A-1131-524-A BK1 MOUNT
59
X-4034-952-1 HEAT SINK ASSY, BK
60
* A-1390-944-A TB MOUNT
61
* 4-072-145-01 RAIL, PWB
62
* A-1346-927-A E COMPL
BVM-D32E1WA/D32E1WE/D32E1WU
http://getMANUAL.com
69
73
70
61
72
63
61
62
Remark
52, 53
55, 56
58, 59
63-65
55
67
68
BATTERY, LITHIUM
65
CR2032 TYPE
64
61
60
61
BATTERY, LITHIUM
CR2025 TYPE
Ref.No.
Part No.
63
* A-1343-730-A EA MOUNT
64
* A-1343-882-A D1 MOUNT
65
* X-4037-783-1 HEAT SINK ASSY, DEF
66
* X-4037-802-1 PANEL ASSY, BUF
67
* A-1136-095-A BUF2 COMPL
68
* X-4037-157-1 FRAME ASSY, PWB
69
* 4-072-887-01 INSULATED PLATE
70
* 4-072-886-02 COVER, FRAME
71
* A-1316-519-A G COMPL
72
* A-1391-030-A TA1 MOUNT
73
1-533-702-11 HOLDER, FUSE
74
! 1-576-231-11 FUSE (H.B.C.) 4A/250V
56
66
57
59
58
56
54
55
52
51
53
Description
Remark
Card Slot
55, 56
68
8-3
