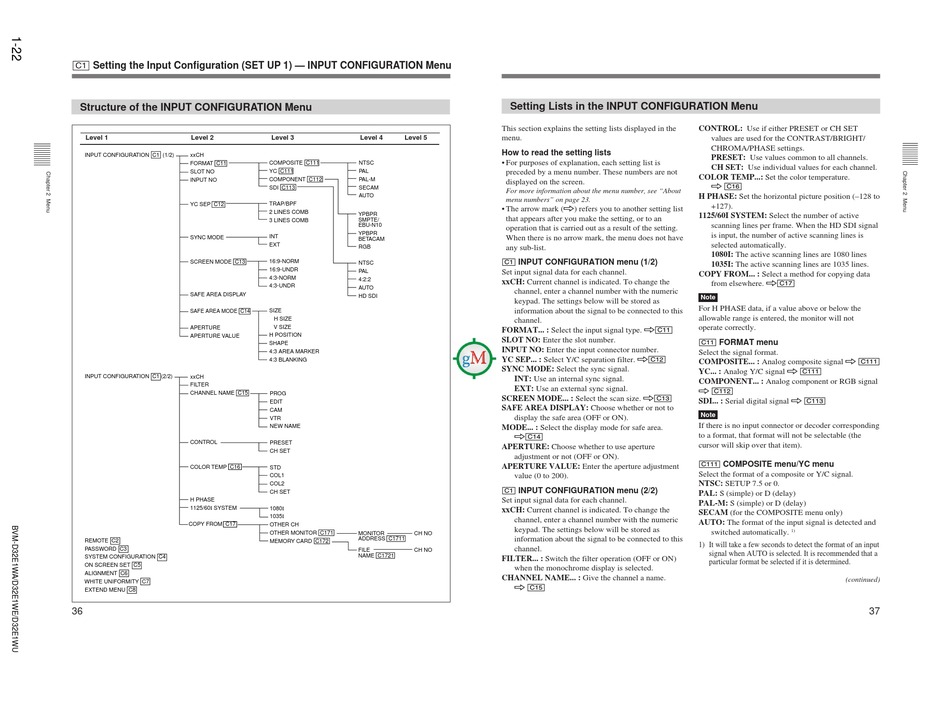

[C1] Setting the Input Configuration (SET UP 1) — INPUT CONFIGURATION Menu

Structure of the INPUT CONFIGURATION Menu

Level 1
Level 2
INPUT CONFIGURATION C1 (1/2)
xxCH
FORMAT C11
SLOT NO
INPUT NO
YC SEP C12
SYNC MODE
SCREEN MODE C13
SAFE AREA DISPLAY
SAFE AREA MODE C14
APERTURE
APERTURE VALUE
INPUT CONFIGURATION C1 (2/2)
xxCH
FILTER
CHANNEL NAME C15
CONTROL
COLOR TEMP C16
H PHASE
1125/60I SYSTEM
COPY FROM C17
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
WHITE UNIFORMITY C7
EXTEND MENU C8
36
Level 3
Level 4
Level 5
COMPOSITE C111
NTSC
YC C111
PAL
COMPONENT C112
PAL-M
SDI C113
SECAM
AUTO
TRAP/BPF
2 LINES COMB
YPBPR
3 LINES COMB
SMPTE/
EBU-N10
YPBPR
INT
BETACAM
EXT
RGB
16:9-NORM
NTSC
16:9-UNDR
PAL
4:3-NORM
4:2:2
4:3-UNDR
AUTO
HD SDI
SIZE
H SIZE
V SIZE
H POSITION
SHAPE
4:3 AREA MARKER
4:3 BLANKING
PROG
EDIT
CAM
VTR
NEW NAME
PRESET
CH SET
STD
COL1
COL2
CH SET
1080I
1035I
OTHER CH
OTHER MONITOR C171
MONITOR
CH NO
ADDRESS C1711
MEMORY CARD C172
FILE
CH NO
NAME C1721

Setting Lists in the INPUT CONFIGURATION Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 23.
• The arrow mark (÷) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not have
any sub-list.
[C1] INPUT CONFIGURATION menu (1/2)
Set input signal data for each channel.
xxCH: Current channel is indicated. To change the
channel, enter a channel number with the numeric
keypad. The settings below will be stored as
information about the signal to be connected to this
channel.
FORMAT... : Select the input signal type. ÷[C11]
SLOT NO: Enter the slot number.
INPUT NO: Enter the input connector number.
YC SEP... : Select Y/C separation filter. ÷[C12]
SYNC MODE: Select the sync signal.
INT: Use an internal sync signal.
EXT: Use an external sync signal.
SCREEN MODE... : Select the scan size. ÷[C13]
SAFE AREA DISPLAY: Choose whether or not to
display the safe area (OFF or ON).
MODE... : Select the display mode for safe area.
÷[C14]
APERTURE: Choose whether to use aperture
adjustment or not (OFF or ON).
APERTURE VALUE: Enter the aperture adjustment
value (0 to 200).
[C1] INPUT CONFIGURATION menu (2/2)
Set input signal data for each channel.
xxCH: Current channel is indicated. To change the
channel, enter a channel number with the numeric
keypad. The settings below will be stored as
information about the signal to be connected to this
channel.
FILTER... : Switch the filter operation (OFF or ON)
when the monochrome display is selected.
CHANNEL NAME... : Give the channel a name.
÷ [C15]
CONTROL: Use if either PRESET or CH SET
values are used for the CONTRAST/BRIGHT/
CHROMA/PHASE settings.
PRESET: Use values common to all channels.
CH SET: Use individual values for each channel.
COLOR TEMP...: Set the color temperature.
÷ [C16]
H PHASE: Set the horizontal picture position (–128 to
+127).
1125/60I SYSTEM: Select the number of active
scanning lines per frame. When the HD SDI signal
is input, the number of active scanning lines is
selected automatically.
1080I: The active scanning lines are 1080 lines
1035I: The active scanning lines are 1035 lines.
COPY FROM... : Select a method for copying data
from elsewhere. ÷[C17]
Note
For H PHASE data, if a value above or below the
allowable range is entered, the monitor will not
operate correctly.
[C11] FORMAT menu
Select the signal format.
COMPOSITE... : Analog composite signal ÷ [C111]
YC... : Analog Y/C signal ÷ [C111]
COMPONENT... : Analog component or RGB signal
÷ [C112]
SDI... : Serial digital signal ÷ [C113]
Note
If there is no input connector or decoder corresponding
to a format, that format will not be selectable (the
cursor will skip over that item).
[C111] COMPOSITE menu/YC menu
Select the format of a composite or Y/C signal.
NTSC: SETUP 7.5 or 0.
PAL: S (simple) or D (delay)
PAL-M: S (simple) or D (delay)
SECAM (for the COMPOSITE menu only)
AUTO: The format of the input signal is detected and
switched automatically.
1)
1) It will take a few seconds to detect the format of an input
signal when AUTO is selected. It is recommended that a
particular format be selected if it is determined.
(continued)
37
