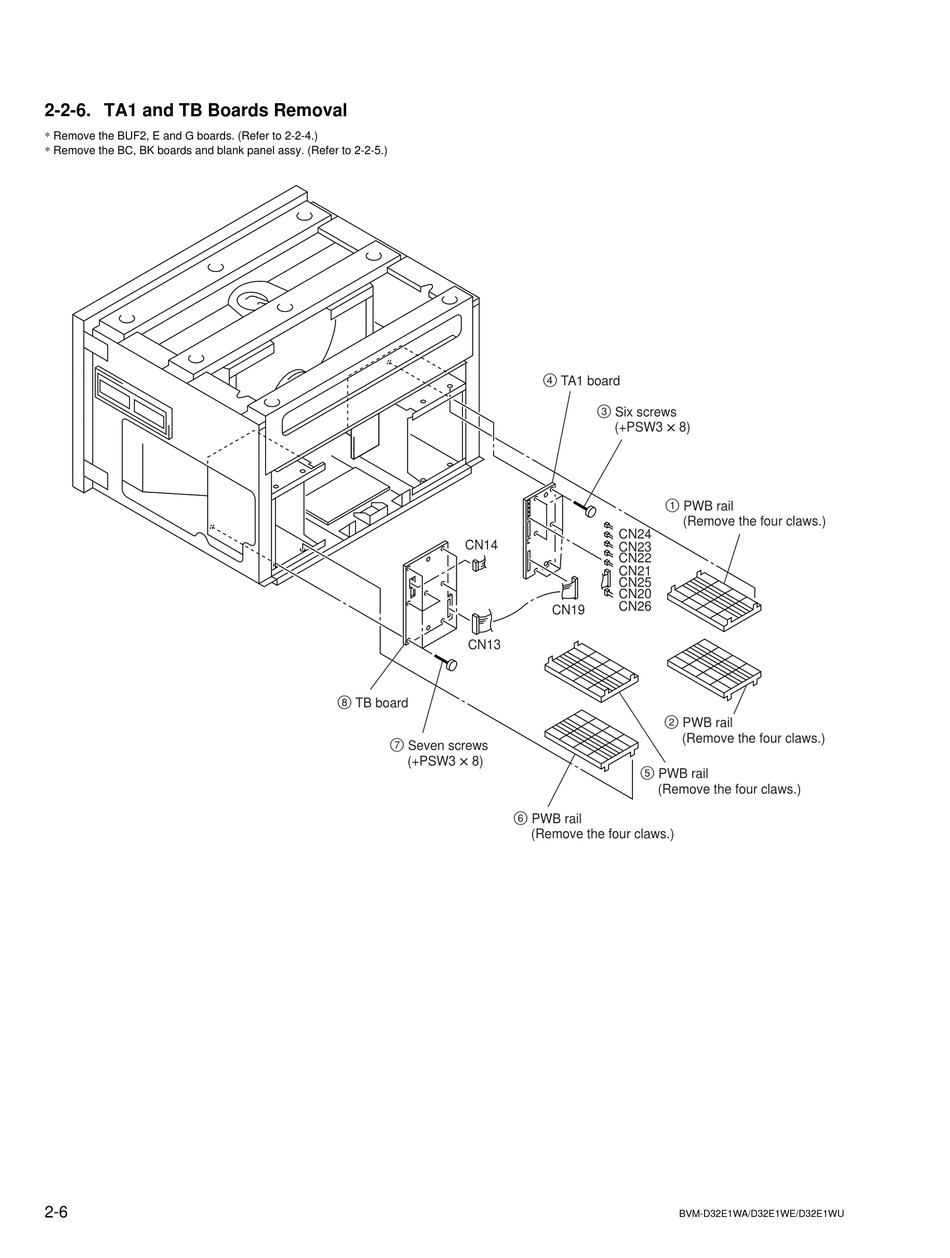

2-2-6. TA1 and TB Boards Removal
* Remove the BUF2, E and G boards. (Refer to 2-2-4.)
* Remove the BC, BK boards and blank panel assy. (Refer to 2-2-5.)
2-6
CN14
CN13
8 TB board
7 Seven screws
(+PSW3 x 8)
4 TA1 board
3 Six screws
(+PSW3 x 8)
1 PWB rail
(Remove the four claws.)
CN24
CN23
CN22
CN21
CN25
CN20
CN26
CN19
2 PWB rail
(Remove the four claws.)
5 PWB rail
(Remove the four claws.)
6 PWB rail
(Remove the four claws.)
BVM-D32E1WA/D32E1WE/D32E1WU
