Chapter 2 Hardware Configuration

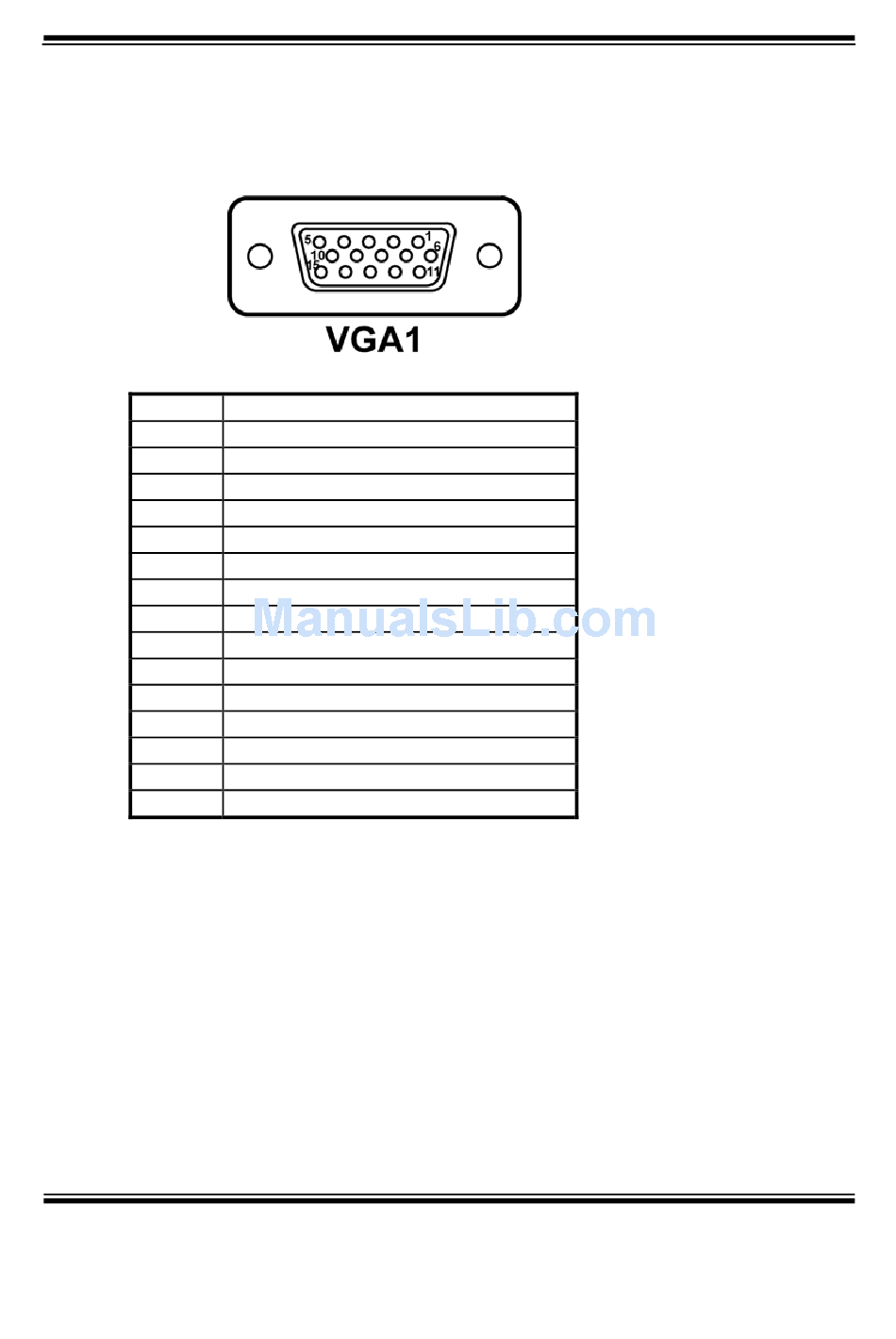

2-22. VGA CONNECTOR
VGA1: VGA Connector
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Page: 2-16
ASSIGNMENT
GMCH_CRTRED
GMCH_GRTGREEN
GMCH_CRTBLUE
NC
GND
GND
GND
GND
GMCH_CRTVCC_L
GND
NC
GMCH_CRTDATA
GMCH_HSYNC
GMCH_VSYNC
GMCH_CRTCLK
PSB-701LF USER
'
S MANUAL
