Chapter 2 Hardware Configuration

2-20. PRINTER CONNECTOR

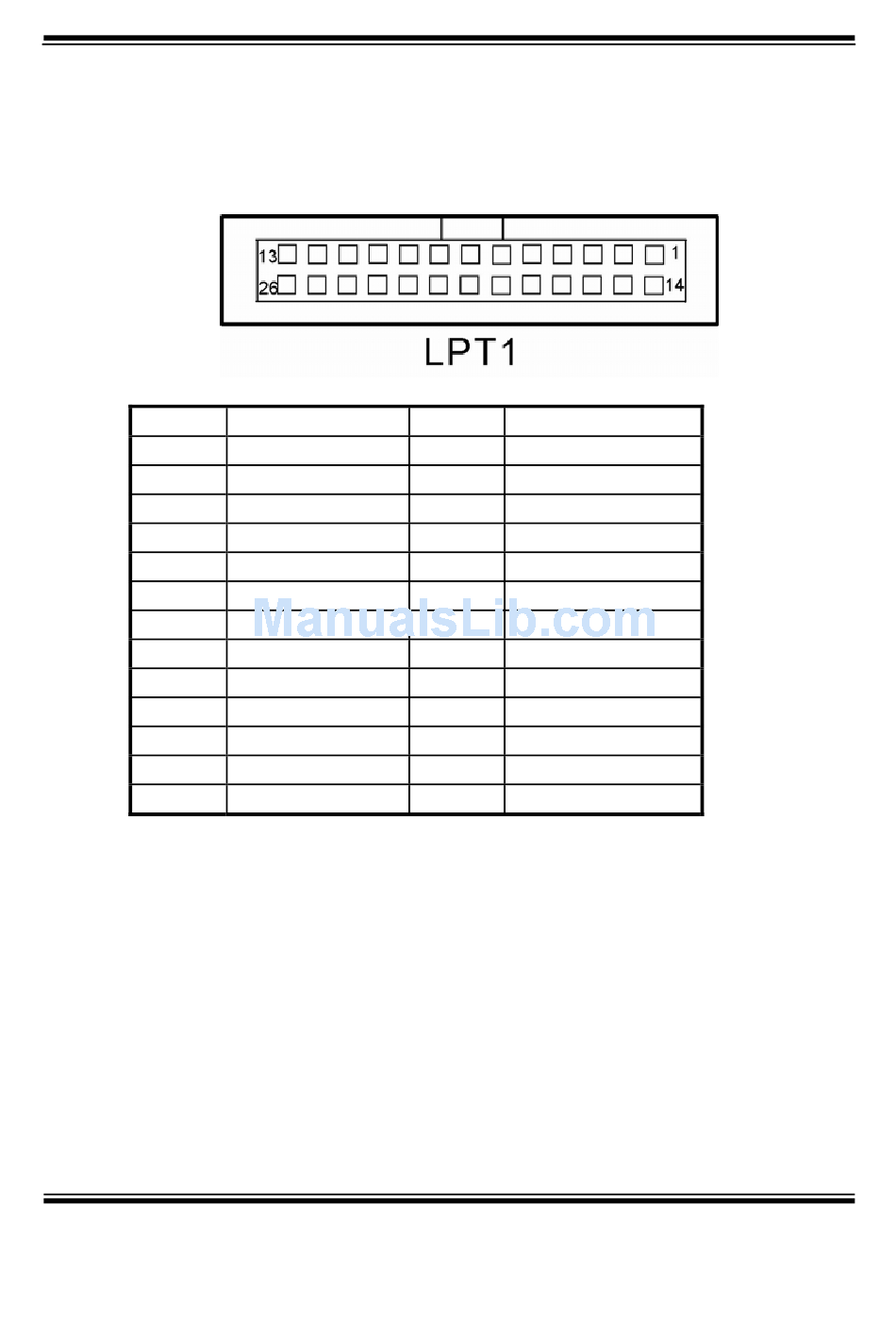

LPT1: Printer Connector
As to link the Printer to the card, you need a cable to connect both
DB25 connector and parallel port.
The pin assignments are as follows :
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
Page: 2-14
ASSIGNMENT
STB
PDR0
PDR1
PDR2
PDR3
PDR4
PDR5
PDR6
PDR7
ACK#
BUSY
PE
SLCT
PIN ASSIGNMENT
14 AFD#
15 ERROR#
16 PAR_INIT#
17 SLIN#
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
26 NC
