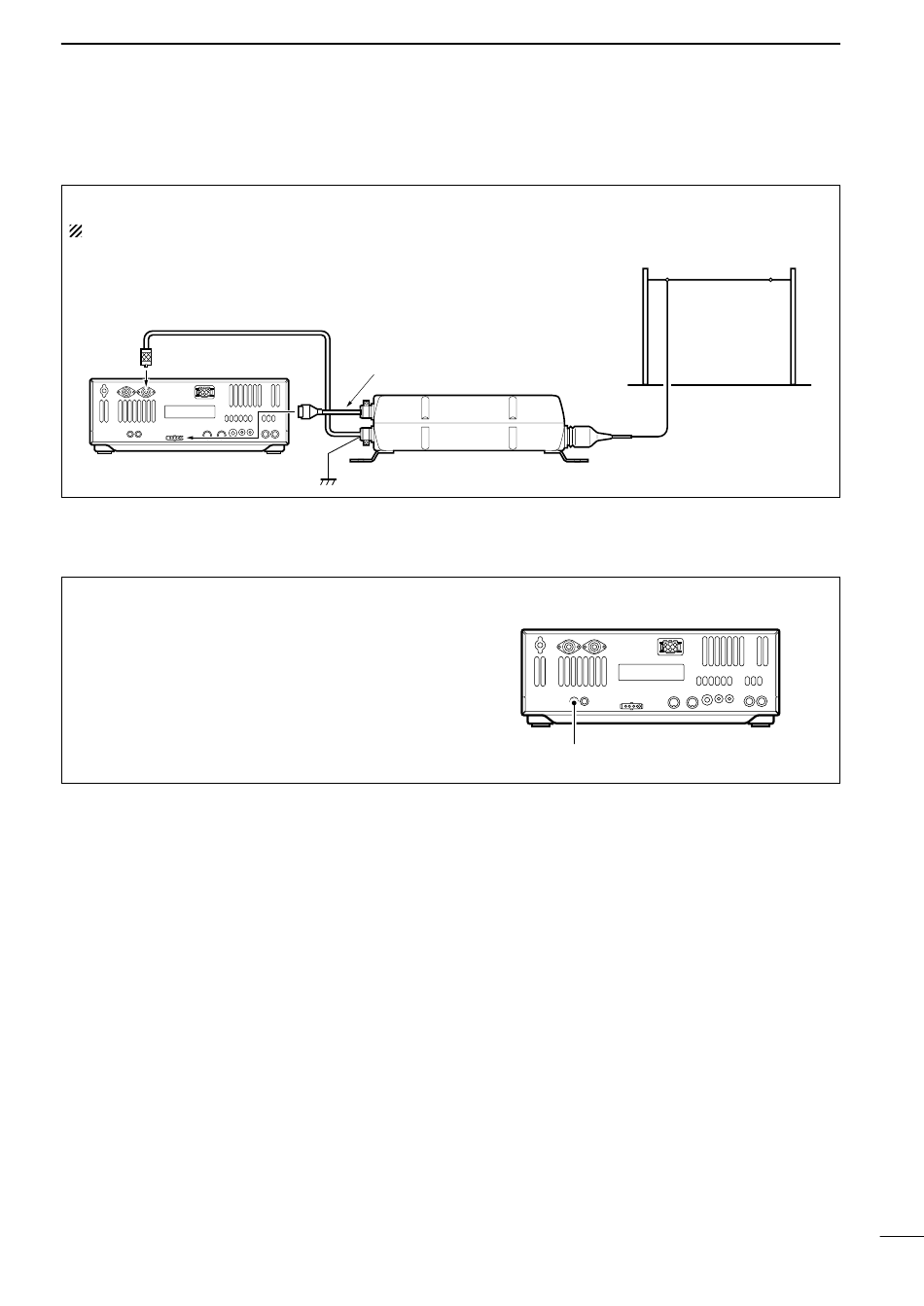

I External antenna tuner connection
CONNECTING THE AH-4/AH-3
The AH-4 or AH-3 must be connected to [ANT1].
Coaxial cable (from the AH-4 or AH-3)
ANT1
Transceiver

I Transverter jack information

When 2 to 13.8 V is applied to pin 6 of [ACC(2)], the
[XVERT] jack is activated for transverter operation
and the antenna connectors do not receive or trans-
mit any signals. (p. 13)
While receiving, the [XVERT] jack can be activated as
an input terminal from an external transverter.
While transmitting, the [XVERT] jack outputs signals
of the displayed frequency at –20 dBm (22 mV) as
signals for the external transverter.
Control cable
AH-4 or AH-3
Ground
INSTALLATION AND CONNECTIONS
Long wire or optional AH-2b
Transverter jack
