Summary of Contents for OSEE BCM-156-3HSV

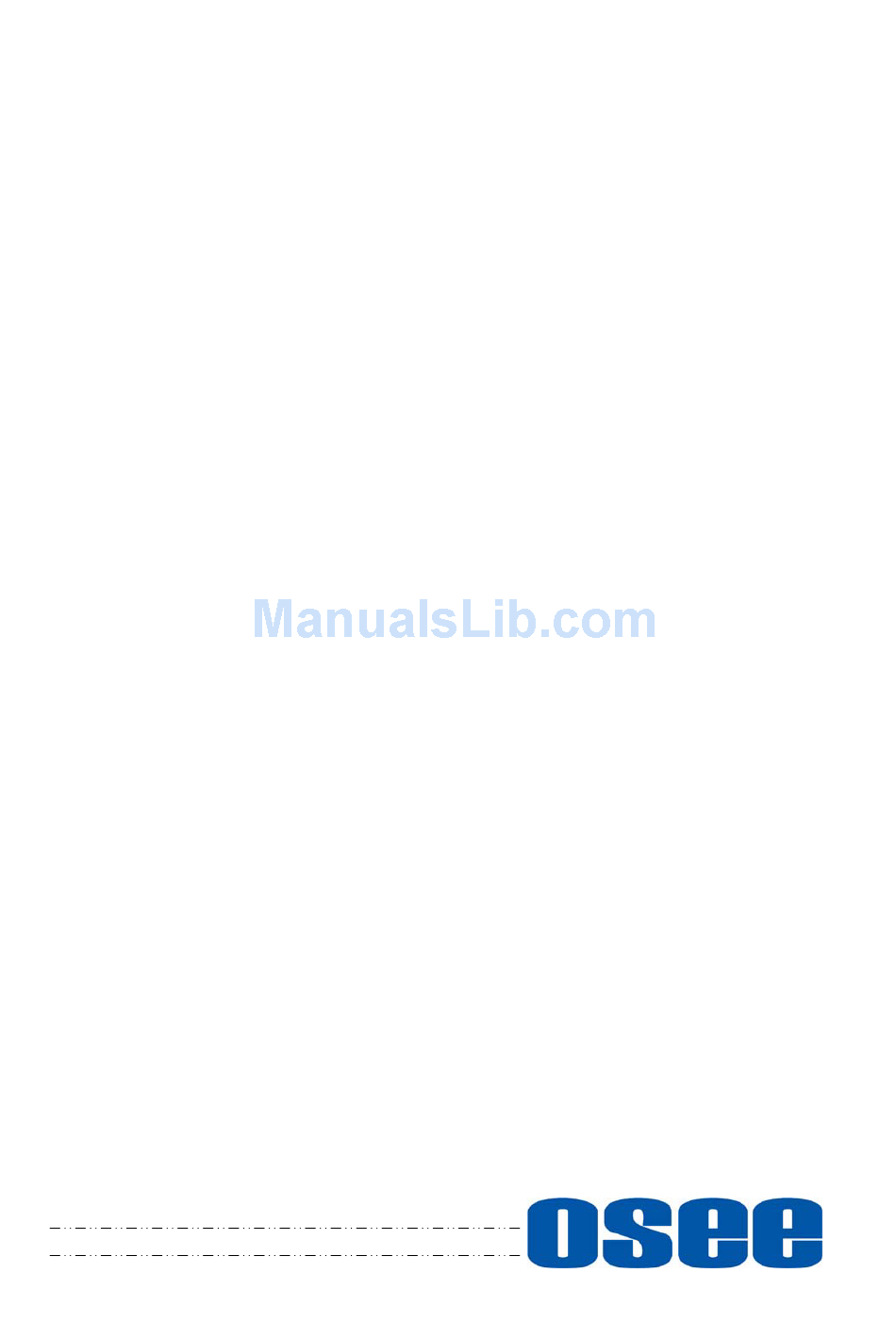

  • Page 1 BCM Series LCD Monitor User Manual...
  • Page 3 Product Information BCM-156/170/215/230 Series LCD Monitor Model: V010200 Version: Release Date: July 14th, 2016 Company OSEE TECHNOLOGY CO., LTD. Contact Information No.22 Building, No.68 zone, Beiqing Road, Haidian District, Address: Beijing, China 100094 Post Code: (+86) 010-62434168 Tel: (+86) 010-62434169 Fax: http://www.osee-dig.com/...

  • Page 4: Contents

    BCM-215-V BCM-230-V The above listed devices have most similarities on appearance and characteristics. The images of BCM-156-3HSV are adopted in the following descriptions. Any of the different specifications between the device types are elaborated. Before reading the manual, please confirm the device type.

  • Page 5: Table Of Contents

    Contents Contents ......................I   Chapter 1 Overview ..................1   Chapter 2 Safety ..................... 3   Chapter 3 Unpack and Installation ............... 7   Chapter 4 BCM Features ................9   4.1 Front Panel Features ................ 11   4.1.1 Arrangement of Front Panel ............11  ...
  • Page 6 6.2.1 ADJUST Menu ................81   6.2.2 VIDEO DISPLAY Menu ..............83   6.2.3 SYSTEM Menu ................83   6.2.4 Other Menus ................... 84   6.3 Parameter Settings ................85   Chapter 7 Specifications ................89  ...

  • Page 7: Chapter 1 Overview

    Overview Chapter 1 Overview The BCM series LCD Monitor are high performance broadcast monitor tailoring most applications from program production, intensive upload/download, playout to studio and intensive monitoring all sorts of business in TV Stations. The front frame of the unit comes in a slim bezel design made from rubber mold.
  • Page 8 Overview  Using 10-bit signal processing technology plus advanced conversion technology between the interlacing and the progressive  Featuring PBP and PIP, dual 3G-SDI capable under PBP mode  Supporting waveform/vector scope, audio metering bar, TC, IMD and  Supporting varied color temperature, varied scan modes, flexibility in marker setting, Blue Only/Monochrome mode Functionality ...

  • Page 9: Chapter 2 Safety

    Safety Chapter 2 Safety FCC Caution Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 Safety Warnings: Read, keep and follow all of these instructions for your safety. Heed all warnings. Device  Install in accordance with the manufacturer's instructions.  Do not beat with a hard object or scratch the LCD display. Do not make the freeze picture displaying on the screen time too long, ...
  • Page 11 Safety heat.  A nameplate indicating operating voltage, etc., is located on the rear panel.  The socket-outlet shall be installed near the equipment and shall be easily accessible. Power Supply Cord  Do not defeat the safety purpose of the polarized or grounding-type plug.

  • Page 13: Chapter 3 Unpack And Installation

    When unpacking the components of BCM-156 monitor, please verify that none of the components listed in Table 3.1 are damaged or lack. If there is any missing, contact your distributors or Osee Technology Co., Ltd. for it. Table 3-1 Packing List...
  • Page 14 Unpack and Installation As a final step, turn on the device by pressing the corresponding power switch located on the front panel.  The pedestal and the monitor are packaged separately.  Connect a standard signal line to the corresponding input port. All BNC connector impedance must be 75Ω.

  • Page 15: Chapter 4 Bcm Features

    BCM Features Chapter 4 BCM Features This chapter describes the features of BCM-156 monitor. The features of BCM-156 monitor are as shown in Figure 4-1 after installed and powered on: Status Information SDI1 AFD CC 1080I59.94 Area Marker Safe Marker Audio Meter 1 2 3 4 5 6 7 8 Center Marker...
  • Page 16 BCM Features image. You can set whether to display it or not in MARKER menu. Audio Meter It is displayed for audio monitoring. You can set its groups, direction, position and mode in AUDIO menu. Timecode It is displayed at the bottom of the image, the format is HH:MM:SS:FF, if there is no timecode available, the monitor will display --:--:--:--.

  • Page 17: Front Panel Features

    BCM Features 4.1 Front Panel Features It will introduce the arrangement and the operations of the buttons in front of the panel in the following. 4.1.1 Arrangement of Front Panel There are a series of buttons at the bottom of the screen, and these buttons are used to control the screen menu items.

  • Page 18: Operation Of Front Panel

    BCM Features POWER TALLY: TALLY indicator(LED TALLY)  Only the POWER button has a light indicator. 4.1.2 Operation of Front Panel The functionality and usage of the buttons at the front panel are as follows: INPUT Select the input signal. Press this button to display the input source menu at the right top corner of the screen, as shown in Figure 4.1-2.
  • Page 19 BCM Features Figure 4.1-3 Correspondence between Source Menu and Interface  When the monitor is set as PIP/PBP display mode, set the signal source for the main picture by INPUT button, and refer to “5.1.7 CONFIG Menu” for the settings about the signal source for the slave picture. This button is a FUNCTION button.
  • Page 20 BCM Features  After you have loaded the function menu list, it will be closed automatically if you do nothing operation with it in 10s.  If the value related to the function button can’t be modified, the value shows in blue. ...
  • Page 21 BCM Features as F1's. MENU It is used to activate the Main menu. Press this button to do some operations with the Main menu, it includes the following operations:  Display the Main menu  Back to the higher level menu ...

  • Page 22: Rear Panel Features

    BCM Features Table 4.1-1 The Description of Adjust Menu Items Adjust Menu Description Range Default VOLUME Adjust the volume 0~31dB BRIGHTNESS Adjust the image brightness 0~100 CONTRAST Adjust the image contrast 0~100 CHROMA Adjust the image monochroma 0~100  Set these parameter values in the following position: BRIGHTNESS, CONTRAST, CHROMA.

  • Page 23: Arrangement Of Rear Panel

    BCM Features 4.2.1 Arrangement of Rear Panel For the arrangement of the rear panel of BCM-170, BCM-215 and BCM-230 are the same, which are different from the BCM-156’s. It will take BCM-170 for example, as shown in Figure 4.2-1, there are various input and output interfaces at the rear panel of BCM-170 monitor.
  • Page 24 BCM Features Video Input: LINE1 IN Video Output: LINE1 OUT Video Input: LINE2(CVBS/Y) IN, feed the composited LINE2, or component Y signal. Video Output: LINE2(CVBS/Y) OUT, output the composited LINE2, or component Y signal. Video Input: LINE2(Pb/C) IN, feed the component Pb, or component C signal.

  • Page 25: Operations Of Rear Panel

    BCM Features 4.2.2 Operations of Rear Panel The details of these interfaces at the rear panel are described as follows: Power Switch It provides one power switch to switch on or switch off. As shown in Figure 4.2-3, push the button to the direction “-” to switch on the power, or push the button to the direction “”...
  • Page 26 BCM Features GPI(DB9) It assigns a function to each pin of the GPI interface to realize a remote control mode. Define a function to the GPI pin. Refer to “5.1.10 GPI Menu” for the definition of the pins and the functions. The relationship of the pins of GPI interface and its channel value is shown in Table 4.2-1.
  • Page 27 BCM Features Audio Input interface It provides four audio input interfaces, 5dBu, impedance≥47K, RCA connector. Audio Output interface It provides two audio output interfaces, 5dBu, impedance≤500Ω, RCA connector. Video Input/Output Interface (BNC) It provides two pairs of Composited Video input/output interfaces (LINE1, LINE2), and a group of component signals (YPbPr, Y/C), the Y/C signal is also called as S-Video.

  • Page 28: Supported Signal Format

    BCM Features 4.3 Supported Signal Format The supported signal format for this device is as shown in Table 4.3-1: Table 4.3-1 Supported Signal Format VIDEO YPBPR HDMI   NTSC      480I60/59.94 576I50    480P60/59.94 ...
  • Page 29 BCM Features VIDEO YPBPR HDMI 2048X1080P50   2048X1080P60/59.94    VGA(640X480) SVGA(800X600)  XGA(1024X768)  SXGA(1280X1024)  WXGA(1360X768)  WXGA+(1440X900)   WXGA+(1400X1050) UXGA(1600X1200)  UXGA+(1680X1050)  WUXGA(1920X1080)  WUXGA(1920X1200)  23 ...

  • Page 31: Chapter 5 Functionality Of The Main Menu

    Functionality of the Main Menu Chapter 5 Functionality of the Main Menu This chapter describes the structure and functionality of the main menu, and introduces how to modify and customize the menu settings. The main menu includes the following menu items, as shown in Figure5-1. Figure 5-1 Main Menu 5.1 Main Menu Press the MENU button at the bottom of the front panel, the main menu is...
  • Page 32 Functionality of the Main Menu The menu interface is divided into three parts: Main Menu List It contains the title of the Main menu and several sub-menu items. The title of this list is MAIN. Press UP or DOWN to access the corresponding menu item.

  • Page 33: Status Menu

    Functionality of the Main Menu  when in the sub-menu item, it shows that this sub-menu item is selected, and the control icon is displayed as a yellow rectangle in front of it, as shown in Figure 5.1-4: Figure 5.1-4 A Sub-menu Item Is Selected ...
  • Page 34 COLOR Show color TEMP temperature. NORMAL  SCAN Show scan NORMAL OVER  MODE mode. UNDER  FAST OFF/ON Show the fast mode. MODE Show screen 16:9 16:9/4:3 ASPECT Aspect Ratio. MODEL BCM-156-3HSV Show the production 28 ...

  • Page 35: Input Select Menu

    Functionality of the Main Menu Items Default Value Domain Range Description model. SERIAL Show serial BCM1562015010001 -- NUMBER number. 192.168.1.86 Show the IP address. ADDRESS Show color COLOR 2015-1-4.1 version according to VERSION its adjusted date.  The sub-menu values in STATUS menu can’t be modified, they are displayed the actual status of the monitor.
  • Page 36 Functionality of the Main Menu Table 5.1-2 The Description of INPUT SELECT Menu Items Default Items Domain Range Description Value SDI1 ON/OFF Enable/Disable SDI1 input SDI2 ON/OFF Enable/Disable SDI2 input LINE1 ON/OFF Enable/Disable LINE1 input  CVBS  LINE2(Y/C) Enable/Disable LINE2 input, LINE2 ...
  • Page 37 Functionality of the Main Menu are the compared area whose luminance is beyond the reference level, and the edges are displayed in the pointed color. For example, set the FOCUS COLOR as RED, and set the FOCUS LEVEL as 80, the compared results are as shown Figure 5.1-8: Figure 5.1-8 Illustration for FOCUS ASSIST Function LUMA ZOOM CHECK The LUMA ZOOM CHECK function is used to display images on the...

  • Page 38: Marker Menu

    Functionality of the Main Menu the source list for LINE2 selection. 5.1.3 MARKER Menu The MARKER menu items are used to adjust the marker parameters, the menu items are as shown in Figure 5.1-10: Figure 5.1-10 MARKER Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-3: Table 5.1-3 The Description of MARKER Menu Items Default...
  • Page 39 Functionality of the Main Menu Default Items Domain Range Description Value  OFF: close area marker   15:9  14:9 13:9  1.85:1  2.35:1  when display aspect is 4:3, images show with the following scale:  OFF: close area marker ...
  • Page 40 Functionality of the Main Menu Marker Illustration Description This marker enables easier checking the center CENTER portion’s focus. MARKER This marker displays two lines to identify an area with a specified ratio. AREA MARKER This marker displays a rectangle to identify the SAFETY safety area...

  • Page 41: Audio Menu

    Functionality of the Main Menu  The AREA MARKER, CENTER MARKER and SAFETY MARKER feature are available only when the MARKER item is set to ON.  The safety marker area will change with the area marker.  The cross hatch lines will display only in the single image or in PIP mode when CROSS HATCH is ON.
  • Page 42 Functionality of the Main Menu Default Items Domain Range Description Value  UNDEF: no signal UNDEF, AUDIO1 AUDIO2. When the audio source is Left speaker, select a SPEAK EBD CH1 EBD, the range of this item channel according to the OUT L is EBD CH1~ EBD CH16.
  • Page 43 Functionality of the Main Menu Default Items Domain Range Description Value  MODE2: audio meter with channel number  MODE3: audio meter with channel number and dB value Select reference REF LEVEL -20dB -20dB/-18dB level  -10dB  -8dB OVER -10dB ...
  • Page 44 Functionality of the Main Menu Figure 5.1-14 The Position of the Audio Meter On Screen  The position of Meter is controlled by METER DIRECTION and METER POSITION, the position of the meter on the screen is as follows: BOT LEFT VERTICAL, BOT RIGHT VERTICAL, TOP LEFT VERTICAL, TOP RIGHT VERTICAL, BOTTOM HORIZONTAL and TOP HORIZONTAL.

  • Page 45: Display Menu

    Functionality of the Main Menu  The prerequisite for the available settings of the display mode and the position of audio meter is that the AUDIO METER is ON. 5.1.5 DISPLAY Menu The DISPLAY menu items are used to adjust the parameters displayed on the screen, the menu items are as shown in Figure 5.1-17: MAIN DISPLAY...
  • Page 46 Functionality of the Main Menu Default Items Domain Range Description Value Set whether to display AFD information. ON is an effective value to AFD OFF/ON DISPLAY DISPLAY item only if the value of STATUS DISPLAY is AUTO or MODE1  ...

  • Page 47: Closed Caption Menu

    Functionality of the Main Menu Input Signal Default Domain Range 480i60 22~524 720p 26~745 1080i50 1080i60/59.94 21~1123 1080sf23/23.97 1035i60 41~1120 1080p 42~1121 The comparison of a normal WFM/Vector and a Line WFM is as shown in Figure 5.1-18: Figure 5.1-18 The LINE WFM and the WFM ...
  • Page 48 Functionality of the Main Menu Figure 5.1-19 CLOSED CAPTION Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-7: Table 5.1-7 The Description of CLOSE CAPTION Menu Items Default Items Domain Range Description Value Set whether to...

  • Page 49: Config Menu

    Functionality of the Main Menu Default Items Domain Range Description Value EIA/CEA-708standards.  608(VBI): Select to display the closed caption signal of the EIA/CEA-608 standards  transmitted by using the line 21.  Set the display   mode for closed ...
  • Page 50 Functionality of the Main Menu Table 5.1-8 The Description of CONFIG Menu Items Default Items Domain Range Description Value Set whether in fast FAST MODE OFF/ON mode. FILM MODE Set whether to detect OFF/ON DETECT film mode. Set the arrangement SUB IN TYPE PBP/PIP/OFF mode of screen picture...
  • Page 51 Functionality of the Main Menu (1) Display Mode This device provides four modes for picture & picture display: PIP, PBP, and the relevant relationship of the two pictures are as shown in Figure 5.1-21: Figure 5.1-21 Multiple Inputs  PIP (Picture in Picture) The two pictures generated by two input signals separately are displayed one in another.
  • Page 52 Functionality of the Main Menu Figure 5.1-23 The Size for the Slave Picture In PIP mode, it displays the WFM or Audio Meter only for the signal source of the main picture, and if the WFM is set as displayed, the Audio Meter will be display only at the top position(Top left or Top right) at the screen.
  • Page 53 Functionality of the Main Menu In PBP mode, it displays the WFM or Audio Meter only for the signal of the current picture. The current picture is labeled by a triangle, as shown in Figure 5.1-26, at the bottom center of the picture. You can select the current picture by the WIN SELECT command assigned to a function key.
  • Page 54 Functionality of the Main Menu  Method 2: By function key. Set PBP function to a function key (F1~F5). Select the menu item FUNCTION KEY F1 for example, and assign its sub-item value as PBP, as shown in Figure 5.1-28: FUNCTION NATIVE ASPECT...
  • Page 55 Functionality of the Main Menu LINE2(Y/C) or LINE2(YPBPR), in addition, press INPUT button to pop up the source list for LINE2 selection.  Position for signal source: The input signal information of the main picture displays at the top left corner of the screen, and the one of the slave picture displays at the top right corner of the screen.

  • Page 56: Color Temp Menu

    Functionality of the Main Menu Figure 5.1-30 Entering the Auto Standby Mode When detecting no signal input or signal disappeared, the power indicator will be lit in flash green for 10 seconds, and showing the standby prompt, after that, the monitor screen will be turned off, and it will be in auto standby mode, the POWER indicator is lit in green.
  • Page 57 Functionality of the Main Menu Figure 5.1-31 COLOR TEMP Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-10: Table 5.1-10 The Description of COLOR TEMP Menu Items Items Default Value Domain Range Description ...

  • Page 58: Function Key Menu

    Functionality of the Main Menu Items Default Value Domain Range Description D56：5600K   D65：6500K  D93：9300K Reset the Gain and RESET Offset values to the product originals COLOR OFF/EBU/SMPTE-C/ Select the color matrix SPACE ITU-709/AUTO/USER  The items about RED/GREEN/BLUE GAIN and BIAS are available only in USER1 and USER2 mode.
  • Page 59 Functionality of the Main Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-11: Table 5.1-11 The Description of FUNCTION KEY Menu Items Items Default Value Domain Range Description SCAN, NATIVE, ASPECT, BLUE ONLY, MONO, MARKER, H/V DELAY, AUDIO METER, FAST Set a function to...

  • Page 60: Gpi Menu

    Functionality of the Main Menu Input Signal Default Value Range Input Signal Formats 576I50  NTSC 480P60/59.94  16:9 480I60/59.94 576P50 720P24/23.97 1080I50 720P25 1080I60/59.94 720P30/29.97 1080P24/23.97  16:9 16:9 720P50 1080P25  2.39:1 720P60/59.94 1080P30/29.97 1080SF24/23.97 1080P50 1035I60/59.94 1080P60/59.94 2048X1080PSF24/23.97 2048X1080P30/29.97 2048X1080PSF25...
  • Page 61 Functionality of the Main Menu menu items are as shown in Figure 5.1-33: Figure 5.1-33 GPI Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-13: Table 5.1-13 The Description of GPI Menu Items Items Default Value Domain Range Description UNDEF,...
  • Page 62 Functionality of the Main Menu triggered, refer to Table 5.1-14 for the details.  GPI control: when it changes it would be as a control value of response control. If the level does not change, but there are other control caused by changes in the control value, perform this change.

  • Page 63: Imd Menu

    Functionality of the Main Menu Items Function Trigger Switch the input source to Switch at the falling edge, when SDI2 SDI2. switching to the other input, exit. Switch at the falling edge, when Switch the input source to LINE1 LINE1. switching to the other input, exit.
  • Page 64 Functionality of the Main Menu Table 5.1-15 The Description of IMD Menu Items Default Items Domain Range Description Value Set whether to display IMD DISPLAY ON OFF/ON IMD CHARACTER on screen.   GREEN Set the color for IMD IMD COLOR ...
  • Page 65 Functionality of the Main Menu Default Items Domain Range Description Value SOURCE IDEO/TSL OSD Tally source OSD TALLY MODE When setting IMD MenuTALLY SOURCE item is set to be Standard, and IMD PROTOCAL is set to be Local, the TALLY lights are triggered by the GPI interface.
  • Page 66 Functionality of the Main Menu  If IMD DISPLAY item is ON, the IMD CHARACTER in the black bar will display on the bottom of the screen.  The length of IMD NAME and IMD CHARACTER is up to 16 characters. The character range is from 0x00 to 0x7F of ASCII.
  • Page 67 Functionality of the Main Menu Figure 5.1-35 TSL Server and Display Monitor We recommend the following two methods according to the different interface of TSI-3000 which is selected to connect with BCM-156. METHOD1 Use the COM7~COM12 interface of TSI-3000 to connect with BCM-156 ...
  • Page 68 Functionality of the Main Menu RS485 IN Terminal RS485 OUT Terminal Illustration PIN No. Signal Signal  COM(TSI-3000): DB9 Use one of the COM7~COM12 interface at the rear panel of TSI-3000 to connect with BCM-156 monitor, the COM7~COM12 has the female DB9 connector, and the function of COM7~COM12 interface of TSI-3000 is defined as in Table 5.1-18: Table 5.1-18 The Pins of COM* in TSI-3000...
  • Page 69 Functionality of the Main Menu DB9(COM7~COM12) RJ45(RS485)  Cable1 The connectors at the two ends of CABLE1 should be one male RJ45 connector and one Male DB9 connector, as shown in Figure 5.1-36: Figure 5.1-36 Cable1 The pin sequence should be defined as in Figure 5.1-37: Figure 5.1-37 Pin Sequence of Cable1 METHOD2 Use the COM3~COM6 interface of TSI-3000 to connect with...
  • Page 70 Functionality of the Main Menu BCM-156  Cable1 Use Cable1 to connect one of the COM3~COM6 interface at the rear panel of TSI-3000 with the RS485 Interface of BCM-156, the functionality of the interfaces are as shown in the following table. ...
  • Page 71 Functionality of the Main Menu 6P6C(COM3~COM6) RJ45(RS485)  Cable1 The connectors at the two ends of CABLE1 should be one male RJ45 connector and one Male 6P6C connector, as shown in Figure 5.1-38: Figure 5.1-38 Cable1 The pin sequence should be defined as in Figure 5.1-39: Figure 5.1-39 Pin Sequence of Cable1 TallyMan--BCM-156 65 ...
  • Page 72 Functionality of the Main Menu Connect the TallyMan Controller TM1/TM2/TM2 PLUS with BCM-156, as shown in Figure 5.1-40: Figure 5.1-40 TSL Server and Display Monitor  Cable1 Use Cable1 to connect one of the CONTROL1/CONTROL2(RS422) interface at the rear panel of TallyMan Controller with the RS485 Interface of BCM-156, the functionality of the interfaces are as shown in the following table.
  • Page 73 Functionality of the Main Menu PIN No. Illustration The connection should obey the rules below to set up the communication between one of CONTROL1/CONTROL2 and RS485, as shown in Table 5.1-23: Table 5.1-23 Connection Between CONTROL1/CONTROL2 of TallyMan Controller and RS485 of BCM-156 DB9(CONTROL1/CONTROL2) RJ45(RS485) ...
  • Page 74 Functionality of the Main Menu Figure 5.1-41 Cable1 The pin sequence should be defined as in Figure 5.1-42: Figure 5.1-42 Pin Sequence of Cable1  Cable2 Use Cable2 to connect every two BCM-156 monitors through the RS485 Interface, the Cable2 is a straight through line, and the connectors at the two ends of Cable2 should both be male RJ45.
  • Page 75 Functionality of the Main Menu Figure 5.1-43 Pin Sequence of Cable2 5.1.11.2 IMD Settings The position of Tally display on the BCM-156 monitor is as shown in Figure 5.1-44. The LED Tally indicator is displayed at the top center of the monitor, and the two OSD Tally lights are displayed at the bottom of the monitor screen, separately at the left and right side of the IMD characters.
  • Page 76 Functionality of the Main Menu Figure 5.1-44 Tally Display  When receiving data of TSL3.1 or TSL4.0 protocol, we support the data length to be 0~126 and 128~254. When the data is in 128~254, the result will be equal to subtract 128 from the IMD ID, in addition, the data length is 0~255 when receiving data of MAGE VIDEO protocol.
  • Page 77 Functionality of the Main Menu  IMD Items Items Value Description DISPLAY TSL3.1 it could receive the data of TSL4.0 protocol PROTOCAL IMD ID BAUD 38400 RATE It will display as the result of OR relationship of LEFT OSD Tally and RIGHT OSD Tally.
  • Page 78 Functionality of the Main Menu Items Value Description IMD DISPLAY IMD PROTOCAL TSL4.0 IMD ID BAUD RATE 38400 It will display as the result of OR relationship of LEFT OSD Tally and RIGHT OSD Tally. When only one of the two lights is lit, the LED Tally will light in the same LED TALLY color as the lit OSD Tally’s, otherwise, when the two lights of OSD Tally are lit, the LED Tally will light in...

  • Page 79: Key Inhibit Menu

    Functionality of the Main Menu Items Value Description BAUD RATE 38400 It will display as the result of OR relationship of LEFT OSD Tally and RIGHT OSD Tally. When only one of the two lights is lit, the LED Tally will light in the same color as the lit OSD Tally’s, LED TALLY otherwise, when the two lights of OSD Tally are...

  • Page 80: Menu Settings

    Functionality of the Main Menu Figure 5.1-45 KEY INHIBIT Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-24: Table 5.1-24 The Description of KEY INHIBIT Menu Items Default Items Domain Range Description Value KEY INHIBIT OFF...
  • Page 81 Functionality of the Main Menu Press MENU button to enter into the main menu, it displays at the top left corner of the screen.  Switch menu items After displaying the main menu, press UP or DOWN button to choose a menu item, the menu item selected is in yellow.
  • Page 82 Functionality of the Main Menu After displaying the sub-menu items list, press ENTER button to enter into the sub-menu items list, press UP or DOWN button to choose a sub-menu item, a yellow rectangle is in front of the selected sub-menu item.
  • Page 83 Functionality of the Main Menu will teach you how to switch to Chinese.  Operation: Step 1 Select CONFIG menu Press MENU button to display the OSD menu, click DOWN button to select CONFIG menu. Step 2 Select the value of the Language item Press ENTER button to get into the CONFIG menu items, and click DOWN button to select the sub-item LANGUAGE, then, click ENTER button to get into the sub-value list, as shown in Figure 5.2-3, the...
  • Page 84 Functionality of the Main Menu Figure 5.2-4 Switching the Value of LANGUAGE Step 4 Exit the main menu Click MENU button to exit the main menu. 78 ...

  • Page 85: Chapter 6 Network Control

    Network Control Chapter 6 Network Control BCM-156 supports network interface. Connect a computer with BCM-156 through this interface to achieve the network control to BCM-156.  The network address of the computer which is connected with BCM-156 and the network address of BCM-156 must be in the same segment. This chapter will introduce how to set and check the parameters of BCM-156 in Internet Explorer.

  • Page 86: Menu Control

    Network Control 6.2 Menu Control Open the management interface as shown in Figure 6.2-1, the menu items listed in the left part are almost as the same as the main menu items. Figure 6.2-1 Management Interface As shown in Figure 6.2-1, the management interface is divided into the following parts: Input Source Selection Button It is used to selecting an input source as the input signal, such as: SDI1,...

  • Page 87: Adjust Menu

    Network Control Parameter list It shows the parameter names, values and operation buttons of the selected navigation menu, as shown in the red rectangle in Figure 6.2-2. The title in the yellow rectangle of the parameter list and the parameter list will change with the navigation menu when switched.
  • Page 88 Network Control Figure 6.2-3 ADJUST Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 6.2-1: Table 6.2-1 The Description of ADJUST Menu Items Items Default Value Domain Range Description Adjust picture CONTRAST 0~100 contrast...

  • Page 89: Video Display Menu

    Network Control Items Default Value Domain Range Description mode SD ASPECT 4:3/16:9 Set the aspect ratio VOLUME 0~31 Adjust the volume 6.2.2 VIDEO DISPLAY Menu It will introduce VIDEO DISPLAY menu. Click VIDEO DISPLAY button at the left navigation menu list, it will display the video display parameters, as shown in Figure 6.2-4: Figure 6.2-4 VIDEO DISPLAY Menu The relationship of Items, Default Value, Domain Range and Description...

  • Page 90: Other Menus

    Network Control Figure 6.2-5 System Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 6.2-3: Table 6.2-3 The Description of System Menu Items Domain Items Default Value Description Range 192.168.1.86 IP address MASK 255.255.255.0 Subnet mask...

  • Page 91: Parameter Settings

    Network Control COLOR TEMPERATURE and so on. 6.3 Parameter Settings It will introduce how to modify parameter values in management interface in the followings. For example: modify Meter Select in AUDIO menu. Click AUDIO button to display its parameter list, as shown in Figure 6.3-1, the corresponding screen main menu is shown as in Figure 6.3-2: Figure 6.3-1 Parameter List for AUDIO Figure 6.3-2 Screen Main Menu for AUDIO...
  • Page 92 Network Control Click button to display the drop-down value list for the parameter, as shown in Figure 6.3-3, for example, modify “CH1-2” to “G1”. Figure 6.3-3 Display the Drop Down Value List of Meter Select(S) Click button to confirm the selection and the page is refreshed. You can check the modification on the screen menu, the results are the same as shown in Figure 6.3-4 and Figure 6.3-5: Figure 6.3-4 Modify the Value of a Parameter...
  • Page 93 Network Control  The volume can be checked and modified in adjust menu on screen adjustment, or in Volume item of ADJUST menu in management interface. Figure 6.3-5 The Value is Modified Simultaneously on Screen Menu Likewise, if you modify the value of a parameter on screen menu first, you may check the same changing result in management interface through network connection.

  • Page 95: Chapter 7 Specifications

    Specifications Chapter 7 Specifications Product detailed information Specification Values Model BCM-156 BCM-170 BCM-215 BCM-230 Dimension 15.6” 17” 21.5” 23” Dimension(WxHxD) 380.7x240x70.5mm 421.8x264.31x64.8mm 519x321x66.3mm 556.5x340.5x66.8mm Pixel Pitch (WxH) 0.179×0.179mm 0.199×0.199mm 0.2475×0.2475mm 0.2652×0.2652mm Aspect Ratio 16:9 Display Area (WxH) 344.16×193.59mm 381.9ⅹ214.8mm 475.2×267.3mm 509.184×286.416mm Viewing Angle (HxV) 178°x178°...
  • Page 96 Specifications Specification Values Return Loss >40 dB to 5 MHz DC Offset 0V±0.05 V Frequency Response ±0.2 dB to 5 MHz Differential Gain <1% Differential Phase <1.5° 3G-SDI /HD-SDI /SDI-SDI Input/Output Signal Type SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, SMPTE ST 2048-2 Connector BNC per IEC 169-8 Impedance...
  • Page 97 Specifications NORMAL SCAN OVER SCAN UNDER SCAN NATIVE ASPECT Input Signal RATIO Input Output Input Output Input Output Input 2.39：1 1920X803 1920X803 1824X763 16：9 1920X1080 1920X1080 1824X1026 720P25 1280X720 1216X684 1280X720 1280X720 2.39：1 1920X803 1920X803 1824X763 16：9 1920X1080 1920X1080 1824X1026 720P30/29.97 1280X720 1216X684...
  • Page 98 Specifications NORMAL SCAN OVER SCAN UNDER SCAN NATIVE ASPECT Input Signal RATIO Input Output Input Output Input Output Input 1.896:1 1920X1013 1920X1013 1824X962 2048X1080P2 2048X1080 1946X1026 2048X1080 2048X1080 2.39：1 1920X803 1920X803 1824X763 1.896:1 1920X1013 1920X1013 1824X962 2048X1080P3 2048X1080 1946X1026 2048X1080 2048X1080 0/29.97 2.39：1...
  • Page 99 Specifications The description of the product dimensions is shown as in the following figures(Unit: mm):  BCM-156 Front Panel Side View Rear Panel Top View 93 ...
  • Page 100 Specifications  BCM-170 Front Panel Side View Rear Panel Top View 94 ...
  • Page 101 Specifications  BCM-215 Front Panel Side View Rear Panel Top View 95 ...
  • Page 102 Specifications  BCM-230 Front Panel Side View Rear Panel Top View  Specifications are subject to change without notice. ------------------No Text Below------------------ 96 ...
  • Page 103 FOR MORE INFORMATION PLEASE VISIT: http://www.osee-dig.com/ OSEE TECHNOLOGY CO., LTD. No.22 Building, No.68 zone, Beiqing Road, Haidian District, Beijing, China Tel: (+86) 010-62434168, Fax: (+86) 010-62434169 E-mail: sales@osee-dig.com...

This manual is also suitable for:

Bcm-170-3hsvBcm-230-3hsvBcm-215-3hsvBcm-156-hsvBcm-215-hsvBcm-170-hsv ... Show all
