 Mounting your PC to a monitor
1. Secure the VESA mounting kit to your monitor with
To fasten the metal shelf, your monitor must comply with VESA75 or
VESA100 standard. The VESA mounting kit is optional.
2. Place the QDSP-300 on the VESA mounting bracket and make sure the
bracket is hooked with the fins of the system housing.
3. Secure the screw with the VESA mounting bracket and make sure the
QDSP-300 is solidly secured to the display.
When mounting the unit on the wall with a display.
unit and display won't exceed 7 Kg.
QDSP-300 User's Manual
NOTE

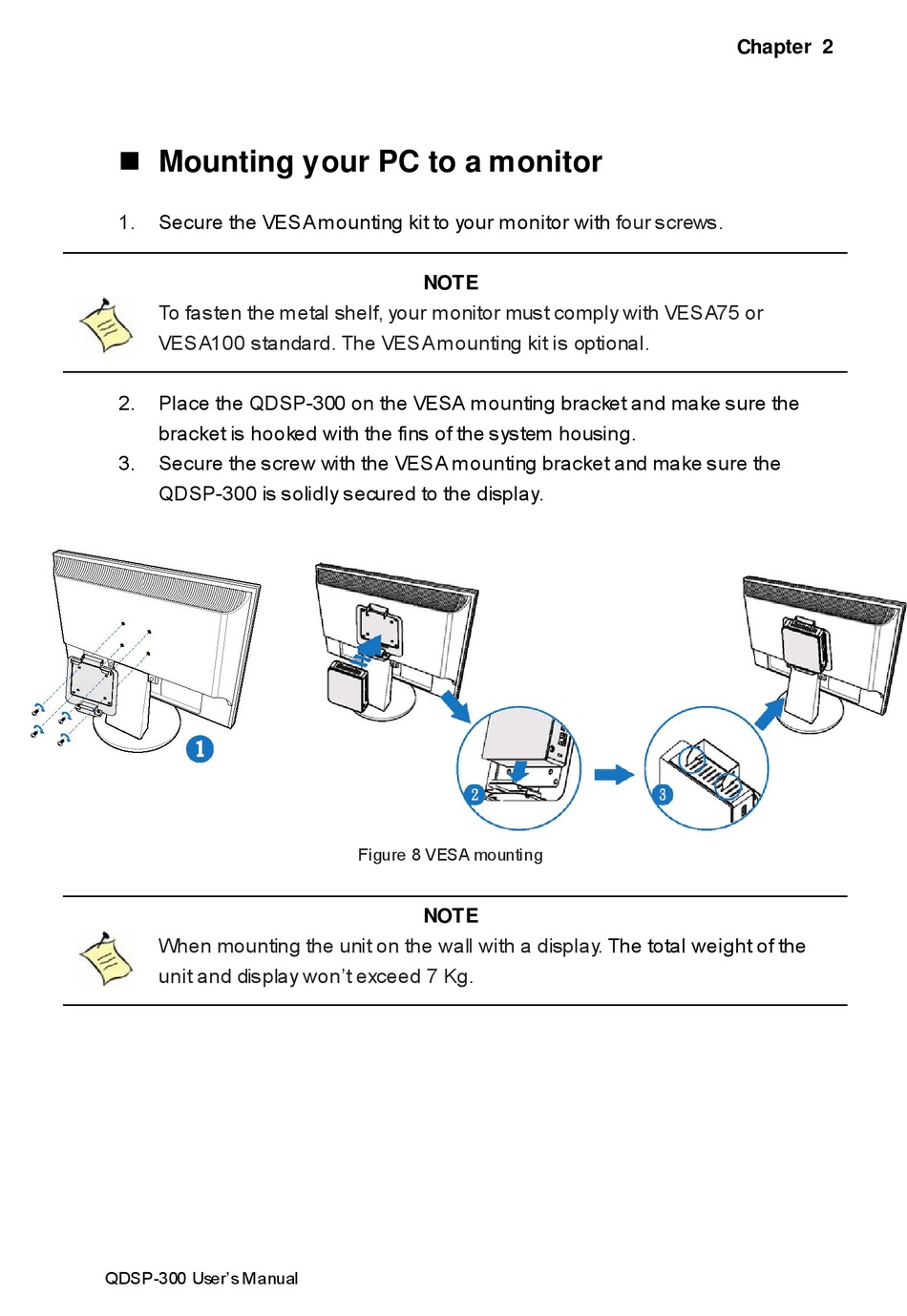

Figure 8 VESA mounting
NOTE
Chapter 2
four screws.
The total weight of the
