10.3.6 Protective Window
Protective windows can be used to protect the sensing head from dust and other contamination. The
protective window can be directly screwed onto the sensing head.
The following table provides an overview of the available windows.
Order number
XXXMI3100PW
For correct temperature readings, the transmission of the protective window must be set
via the control panel in the communication box. See section 8.2
Make sure the measuring head and the protection window are at the same temperature!
MI3
Material
holder: stainless steel
window: fused silica
Table 8: Available Protective Windows

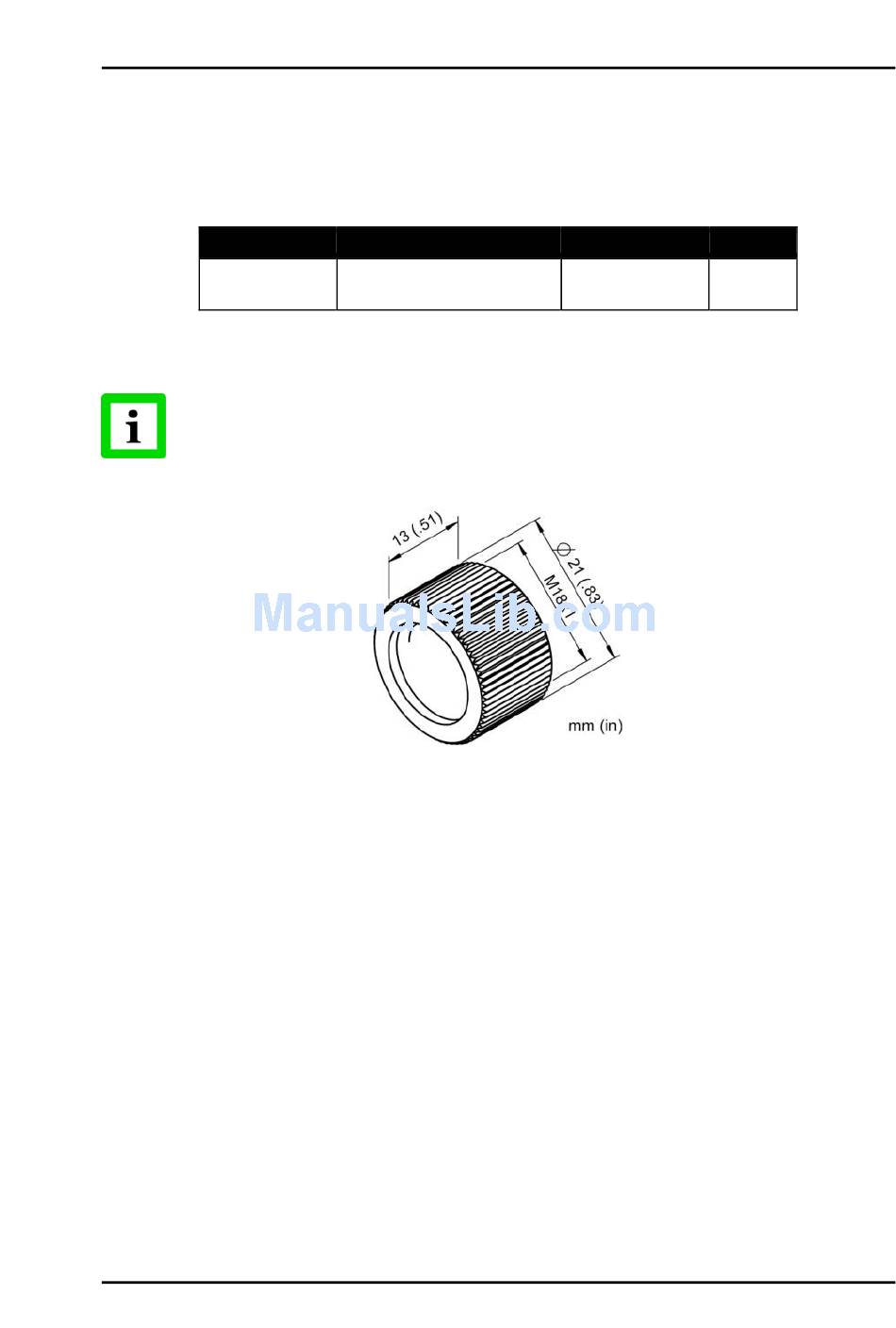

Figure 74: Protective Window
Rev. G Nov/2015
Accessories
Transmission
T
ambient
0.93 ±0.05
120°C
(for 1M, 2M models)
(248°F)
<Head>
Page, page 50!
83
