5.3.2 Comm Box (DIN)
The wiring of the sensing head cable is color coded, see section 5.4.3
5.4 Wiring, Terminal
You need to connect the power supply and possibly the signal input/output wires. Use only cable with
outside diameter from 4 to 6 mm (0.16 to 0.24 in), wire size: 0.14 to 0.75 mm² (AWG 19 to 26).
The cable must include shielded wires. It should not be used as a strain relief!
5.4.1 Comm Box (metal)
MI3

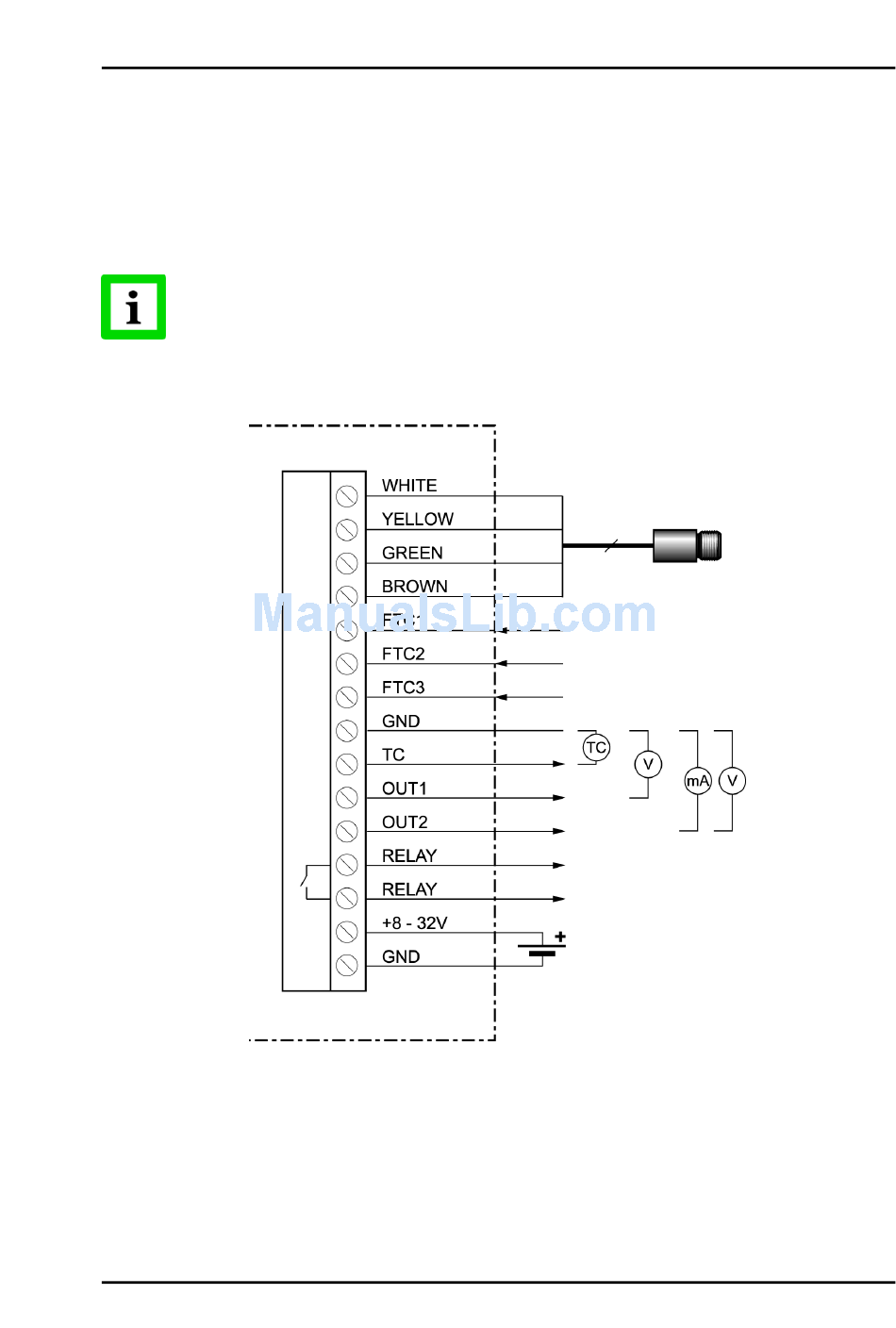

Figure 14: Terminal Wiring for the Comm Box
Rev. G Nov/2015
Installation
Comm Box (DIN 4
Sensing Head
Emissivity Control
Ambient Compensation
Trigger/Hold
T
T
T
/T
obj
head
obj
head
Alarm: T
/ T
obj
head
Power Supply
TE), page 31.
29
