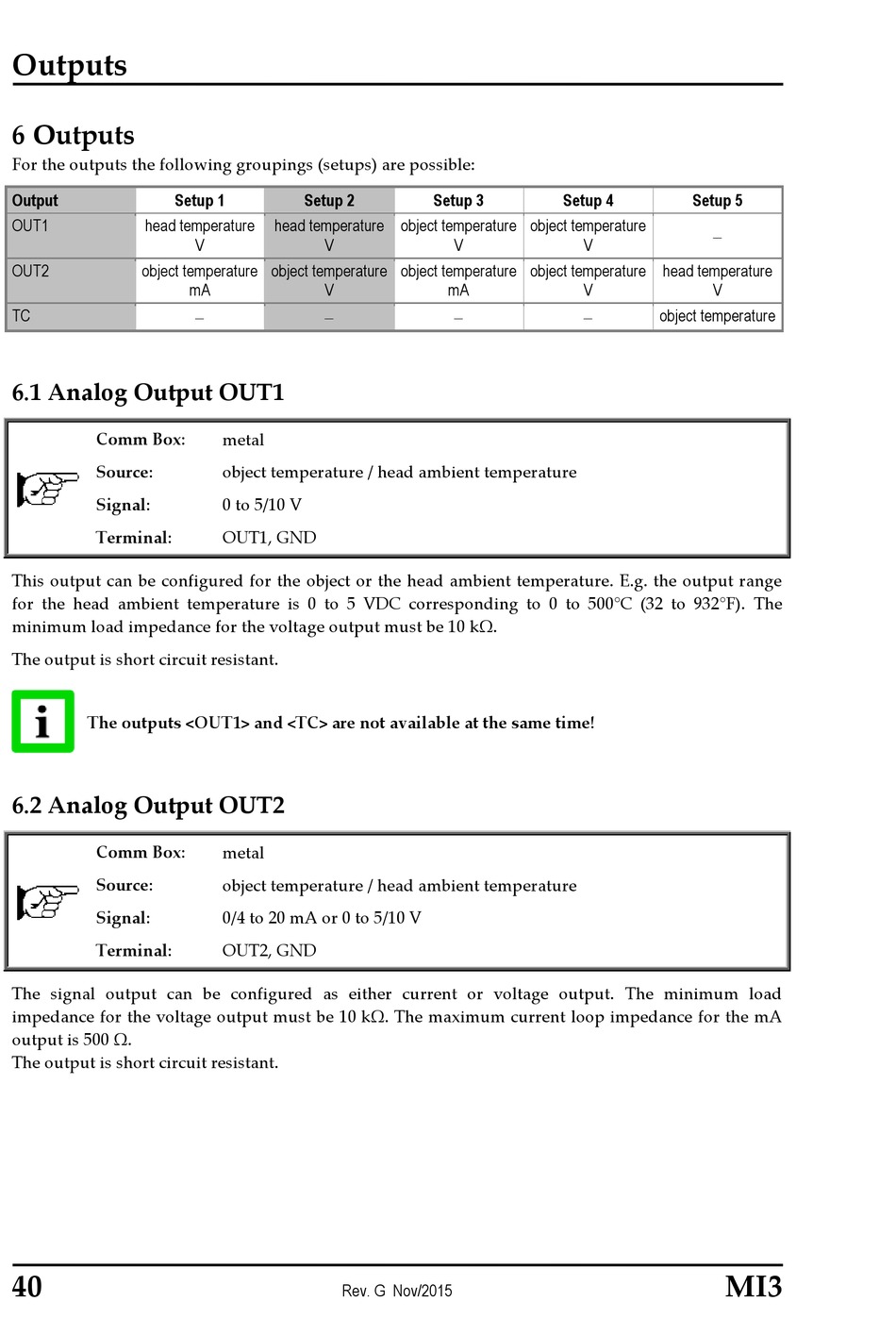

Outputs

6 Outputs
For the outputs the following groupings (setups) are possible:
Output Setup 1
OUT1 head temperature
OUT2 object temperature
TC
6.1 Analog Output OUT1
Comm Box:
Source:
Signal:
Terminal:
This output can be configured for the object or the head ambient temperature. E.g. the output range
for the head ambient temperature is 0 to 5 VDC corresponding to 0 to 500°C (32 to 932°F). The
minimum load impedance for the voltage output must be 10 kΩ.
The output is short circuit resistant.
The outputs <OUT1> and <TC> are not available at the same time!
6.2 Analog Output OUT2
Comm Box:
Source:
Signal:
Terminal:
The signal output can be configured as either current or voltage output. The minimum load
impedance for the voltage output must be 10 kΩ. The maximum current loop impedance for the mA
output is 500 Ω.
The output is short circuit resistant.
40
Setup 2
head temperature
V V
object temperature
mA V
 
metal
object temperature / head ambient temperature
0 to 5/10 V
OUT1, GND
metal
object temperature / head ambient temperature
0/4 to 20 mA or 0 to 5/10 V
OUT2, GND
Rev. G Nov/2015
Setup 3 Setup 4
object temperature object temperature
V
object temperature object temperature
mA

Setup 5

V
head temperature
V V
object temperature

MI3
