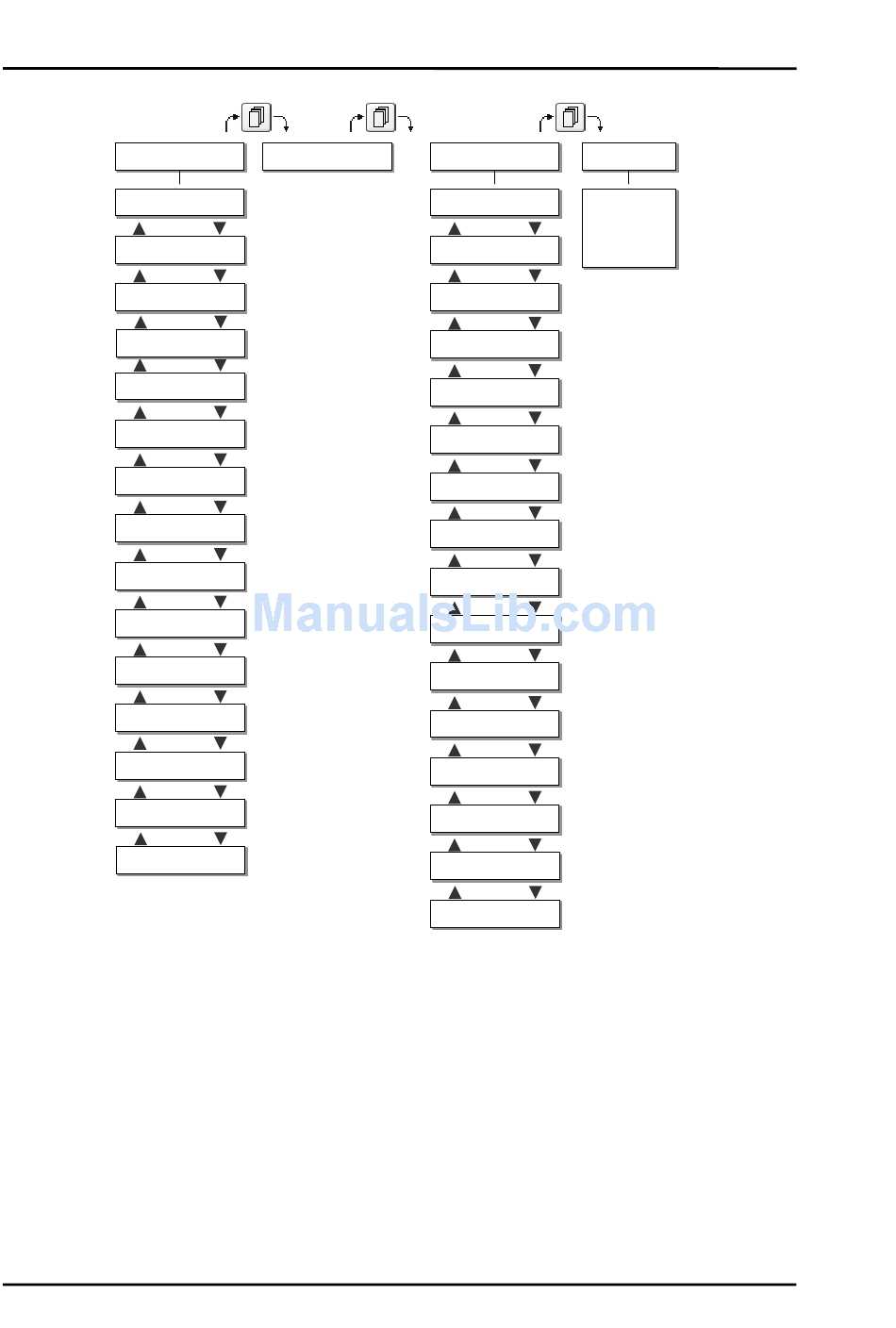

Operation
#1 (Head)
Tambient
Emissivity
Transmiss.
Laser*
Average
Peak Hold
Val. Hold
Trigger
Alarm Mode
Set Point
Lo Limit
Hi Limit
Fact. default
Type
SN
* not available for all models
4 output channels for Comm Box DIN 6 TE, analog
8.2 <Head> Page
<Tambient>
<Emissivity>
<Transmiss.>
50
#2 (Head)
current head ambient temperature
changes the emissivity value for the selected head. The emissivity is a
calculated ratio of infrared energy emitted by an object to the energy emitted by
a blackbody at the same temperature (a perfect radiator has an emissivity of
1.00). For information on determining an unknown emissivity and for sample
emissivities, see section 19.2
changes the transmission value when using protective windows. For example,
if a protective window is used with the sensor, set the transmission to the
appropriate value.
Rev. G Nov/2015
...
BOX SETUP
Relay Mode
OUT1 Mode*
OUT1 Source*
OUT1 Value*
OUT1 low temp.*
OUT1 high temp.*
OUT2 Mode*
OUT2 Source*
OUT2 Value*
OUT2 low temp.*
OUT2 high temp.*
Interface
Factory default
Temperature Unit
Key Enter Lock
Display Backlight
Typical Emissivity
Values, page 128.
BOX INFO
Serial No.
Rev.
Tbox
